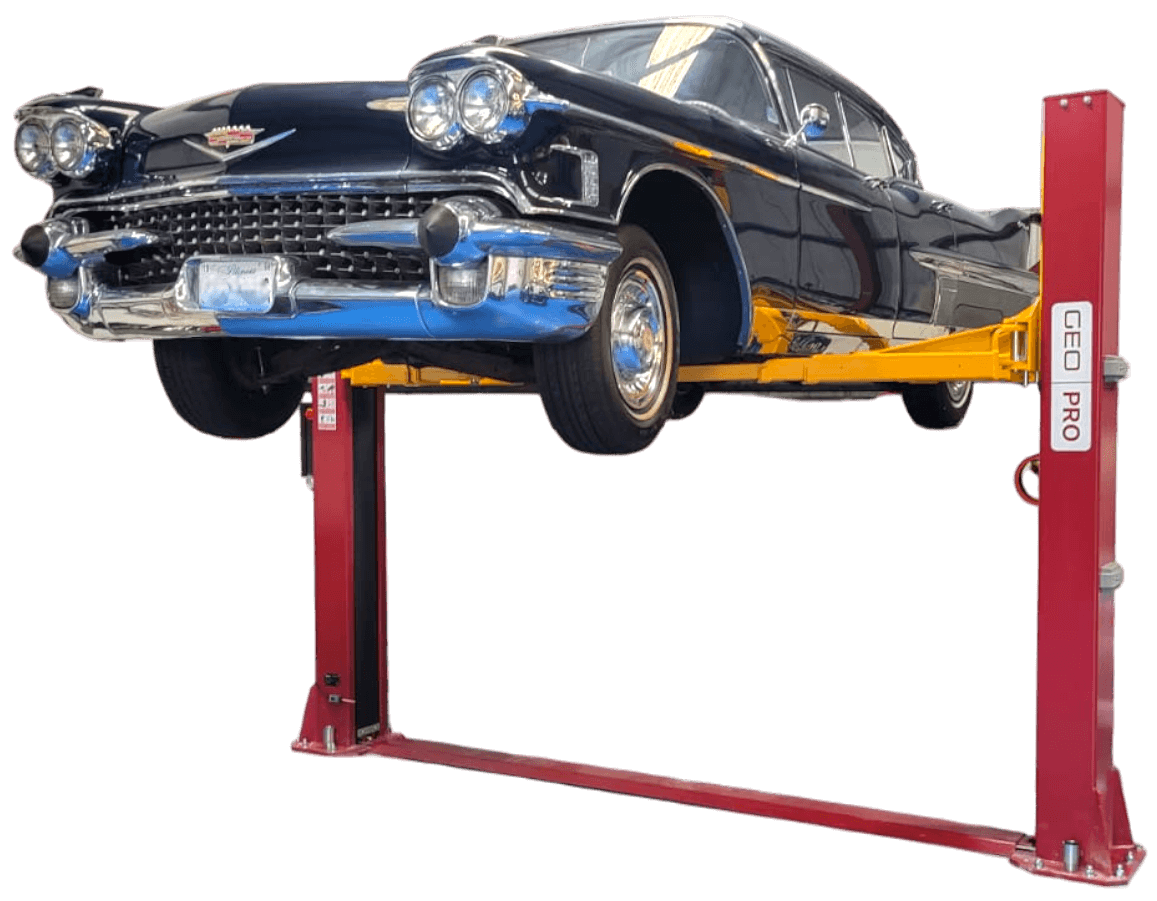

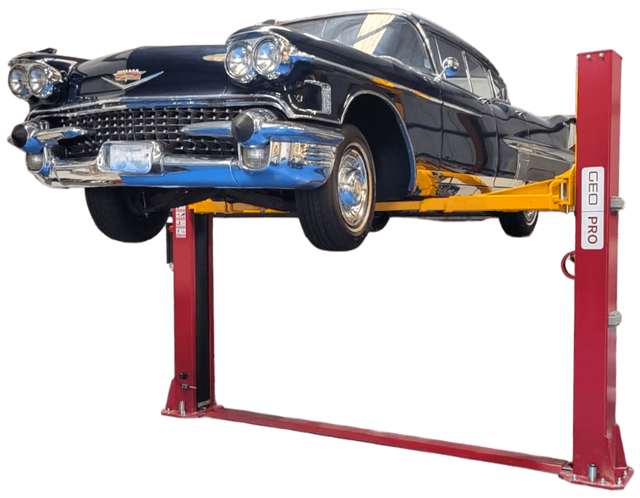

Garage Equipment 4 Tonne Electric Release 2 Post Car Lift SKU GEO037
Garage Equipment 4 Tonne Electric Release 2 Post Car Lift SKU GEO037
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.
High quality 4 Tonne 2 post lifts from the GEO range of garage equipment.
The entire range of GEO 2 post lifts are independently scrutinised by the UK governing body CCQS and our CE certificates are issued by them after passing rigorous load tests.

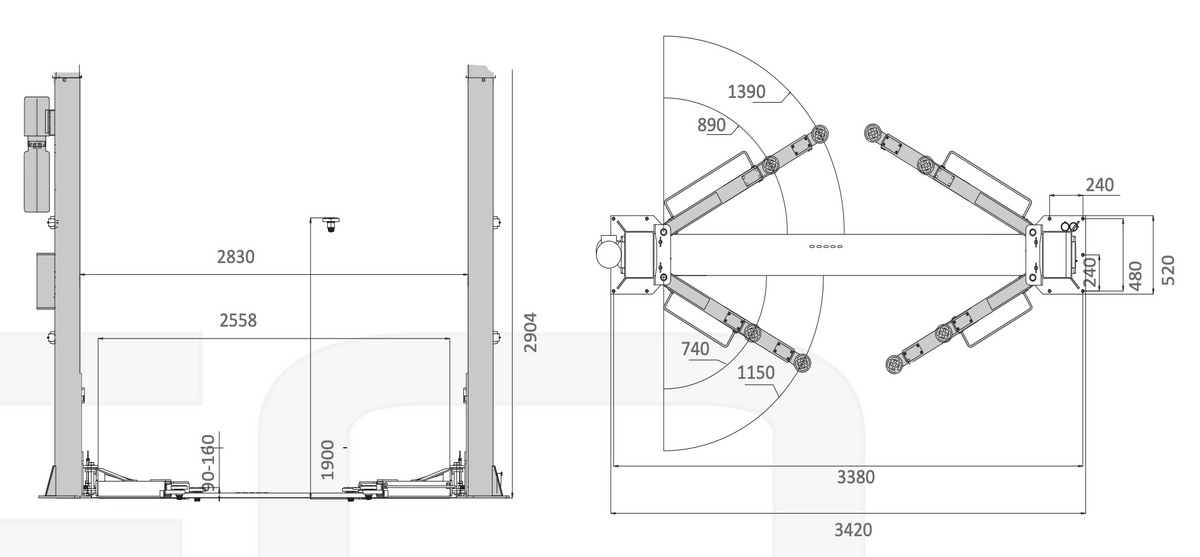

| 4 Tonne Two Post Lift Specifications | |
|---|---|
| Maximum Lifting Capacity | 4000kg |
| Lifting Time | 45Seconds |
| Minimum Height | 100mm |
| Overall Height | 2842mm |
| Overall Width | 3366mm |
| Distance Between Columns | 2506mm |
| Short Arm Length | 680mm - 1020mm |
| Long Arm Length | 860mm - 1300mm |
| Single Phase | 240V/50Hz |
| 3 Phase | 400V/50Hz |
Benefits
- Trust independently verified certification - CE certificates issued by UK governing body CCQS after rigorous load testing
- Lift vehicles level every time - balancing cable keeps both sides synchronised
- Lower safely if hydraulics fail - parachute valves in each ram arrest descent on hose fracture
- Fit varying wheelbases - three-stage telescopic arms with 75mm lift pad extensions
Advantages
- Runs on a standard single-phase supply, so no dedicated three-phase circuit is required.
Features
- Dual hydraulic cylinders, direct drive.
- Dual point automatic lock release.(electromagnetic)
- Three stage telescopic lifting arms.
- 2 stage screw up lift pads with 75 mm lift pad extensions.
- Locking ladder.
- Parachute valves in each ram in case of hydraulic hose fracture.
- Relief valve to prevent overloading.
- Upper and lower limit switches.
- Balancing cable ensure level lifting of vehicles.
- Aluminium shell motor.
- UK Regulated 24 v low-voltage control boxes.
- Emergency manual drop function with adjustable dropping speed control.
- Machine welded 2 post lift for extra stability.
- High Powder Coated Finish.
- All Moving Components are Fully Galvanised.
- All Two Post Lifts Come With a full two Year Parts Warranty.
- Maximum Lifting Capacity: 4000kg
- Lifting Time: 45Seconds
- Minimum Height: 100mm
- Overall Height: 2842mm
- Overall Width: 3366mm
- Distance Between Columns: 2506mm
- Short Arm Length: 680mm - 1020mm
- Long Arm Length: 860mm - 1300mm
- Single Phase: 240V/50Hz
- 3 Phase: 400V/50Hz
- GEO B4000es Datasheet
