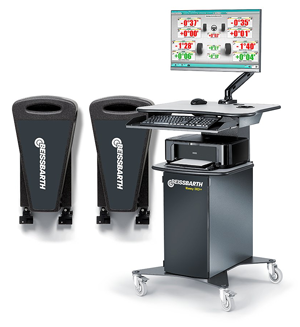

Beissbarth 3D+ Wheel Aligner

Beissbarth 3D+ Wheel Aligner

High speed, high precision and easy to use WLAN version With cabinet, HighPerformance PC, 27" monitor and printer Incl. lift adapter, turntable, wheel clamps and OEM magnetic clamp Highly automated routine Automatic target recognition Automated printout of protocol and reset for next vehicle check The space in front of the lift can be used for the ADAS calibration jig and head light tester Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle No need for extra cameras, cables, or clamps required for DAS calibration Sensor heads can be easily detached from the lift when not in use to clear up space Beissbarth DualView camera system for ultimate control, especially of complex chassis No fixed position for targets on the vehicle eliminates room for error Plug & play: no calibration required for installation or for exchanging Targets Extensive Beissbarth vehicle database including alignment helps directly from the OEMs High quality wheel clamps with torque control for safe mounting on the rim Quality Made in Germany Also available as Kit version; ideal for existing alignment bays Sensor head with DualView camera technology +Software with SmartTest and ADAS calibration option WLAN/Bluetooth communication box Target boards Vehicle specs database Cabinet HighPerformance PC 27" Monitor Printer Multi-Fit wheel camp 13" - 22" with standard and Softline claws OEM magnetic clamp Lift Adapter Turntable Remote control Brake pedal depressor and steering wheel holder.

Designed for integration into busy service bays, the Beissbarth Wheel Aligner fits alongside existing lift infrastructure and requires minimal downtime to deploy. Its automated workflow guides technicians step by step, reducing training overhead and ensuring consistent results across every vehicle.

Features

• High speed, high precision and easy to use
• WLAN version
• With cabinet, HighPerformance PC, 27" monitor and printer
• Incl. lift adapter, turntable, wheel clamps and OEM magnetic clamp - expanding compatibility across a wide range of vehicles
• Highly automated routine
• Automatic target recognition - minimising manual steps and reducing technician fatigue
• Automated printout of protocol and reset for next vehicle check
• The space in front of the lift can be used for the ADAS calibration jig and head light tester - supporting advanced driver assistance system calibration alongside alignment
• Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle - supporting advanced driver assistance system calibration alongside alignment
• No need for extra cameras, cables, or clamps required for DAS calibration

Specifications

• Operating temperature: 5 - 40 C
• Measuring system: - 3D
• Storage temperature: -20 - 60 C
• Relative humidity, use: (40 C) 10 - 90 %
• Height cabinet: 1520 mm
• Width cabinet: 880 mm
• Depth cabinet: 770 mm
• Weight cabinet: 110 kg
• Height sensor head: 120 mm
• Width sensor head: 320 mm
• Depth sensor head: 630 mm
• Weight sensor head: 9,3 kg
• Height WLAN box: 627 mm
• Width WLAN box: 250 mm
• Depth WLAN box: 131 mm
• Weight WLAN box: 7,4 kg
• Degree of protection WLAN box: IP 54
