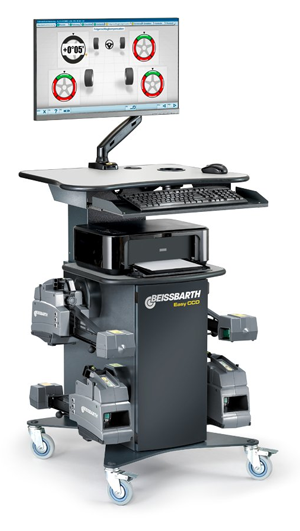

Beissbarth CCD+ Wheel Aligner

Beissbarth CCD+ Wheel Aligner

Economical, flexible, space-saving With cabinet, HighPerformance PC, 27" monitor and printer Incl. turntables and wheel clamps The space in front of the lift can be used for ADAS calibration boards and head light tester Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle No need for extra cameras, cables, or clamps required for ADAS calibration 360° measurement field for permanent self-check and adjustment of system to movement and vibrations Rolling runout compensation eliminates time-consuming raising of vehicle and single-wheel compensation No calibration to a specific lift allows a measurement on any wheel alignment bay Wireless data transfer and integrated battery enable full mobility and allow the use of Windows tablets or Laptops Intelligent and space-saving charging solution that can be mounted on any wall Quality made in Germany Also available as kit version; ideal for already existing alignment bays Sensor head with encoder and battery power +Software with SmartTest for direct reception and ADAS calibration Option Vehicle specs database Cabinet with HighPerformance PC 27" monitor Printer Multi-fit wheel clamp 13" - 22" with standard and Softline claws Mechanical Turntables without electronics Brake pedal depressor and steering wheel holder Emergency cable set.

Designed for integration into busy service bays, the Beissbarth Wheel Aligner fits alongside existing lift infrastructure and requires minimal downtime to deploy. Its automated workflow guides technicians step by step, reducing training overhead and ensuring consistent results across every vehicle.

Features

• Economical, flexible, space-saving
• With cabinet, HighPerformance PC, 27" monitor and printer
• Incl. turntables and wheel clamps
• The space in front of the lift can be used for ADAS calibration boards and head light tester - supporting advanced driver assistance system calibration alongside alignment
• Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle - supporting advanced driver assistance system calibration alongside alignment
• No need for extra cameras, cables, or clamps required for ADAS calibration - supporting advanced driver assistance system calibration alongside alignment
• 360° measurement field for permanent self-check and adjustment of system to movement and vibrations - detecting system drift automatically to maintain measurement integrity
• Rolling runout compensation eliminates time-consuming raising of vehicle and single-wheel compensation - saving time by eliminating the need to raise the vehicle for compensation
• No calibration to a specific lift allows a measurement on any wheel alignment bay
• Wireless data transfer and integrated battery enable full mobility and allow the use of Windows tablets or Laptops - enabling free movement around the vehicle without cable clutter

Specifications

• Operating temperature: 5 - 40 C
• Storage temperature: -20 - 60 C
• Relative humidity, use: (40 C) 10 - 90 %
• Height cabinet: 1520 mm
• Width cabinet: 880 mm
• Depth cabinet: 770 mm
• Weight cabinet: 80 kg
