ADAS (Advanced Driver Assistance Systems) is now fitted to not only high end vehicles but small city vehicles, as well modern everyday saloons and hatchbacks. The technology is fast evolving in the form of Adaptive Cruise Control, Lane Departure Warning, Automatic Emergency Breaking and many more. However, these systems often now need to be calibrated by means of static target boards, alignment lasers and dynamic test drives.

Below are a few examples why you would need to carry out the calibration on these systems:

• If the vehicle has been in an accident and needs a replacement radar box
• The replacement of a windscreen
• If a system has lost its calibration
• When replacing faulty units
• When cruise control systems no longer work
• If distance measurement to the car ahead is incorrect

This is why many garages are now increasingly seeing the demand with the opportunity to service the systems on these vehicles. Hickleys Ltd can now offer the all in one solution to be able to carry out the correct calibration.

If you run workshops offering ADAS calibration after windscreen replacement, suspension work, or bodywork repair, this is built for the kind of work you do day to day. In practice, you position the calibration targets in front of the vehicle and run the calibration procedure so the driver assistance cameras and sensors read correctly again.

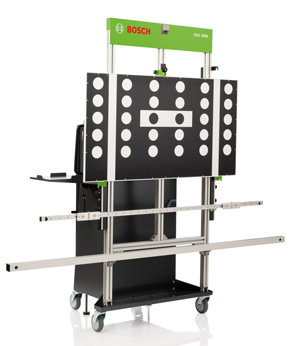

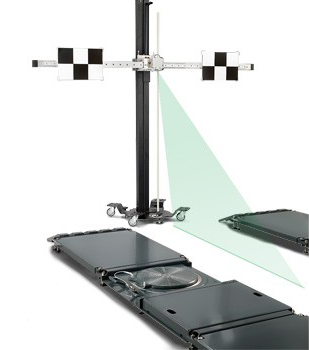

Bosch DAS3000 ADAS Package

Following OEM requirements for collision repairs, maintenance and servicing - the sensors of an advanced driver assistance system must be readjusted and calibrated accurately.

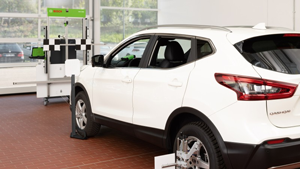

The DAS 3000 S20 conducts precise calibration of a front Radar and Camera.

With quick setup, innovative multi-function-fixture, robust but maneuverable design, and a broad selection of adjustable calibration targets, the DAS 3000 is ready for multiple applications within the automotive workshop.

Bosch diagnostic scan tools as well as diagnostic software ESI[tronic] 2.0 Online in combination with DAS 3000 ensure a proper calibration of the Active Cruise Control (ACC), Forward Collision Warning (FCW) and Lane Assistance system (LDW/LKA).

Benefits

• Calibrate ADAS to OEM standard, not a workaround - ESI[tronic] 2.0 Online workflows follow manufacturer requirements directly
• Handle almost any calibration job with one trolley - universal fixture supports 1-point, 2-point and sequential calibrations
• Set up faster with less guesswork - digital distance and thrust-line measurement replaces manual tape-measure setup
• Cover more OEM mounting heights with one board - the XL multi-function board needs only rough lateral positioning
• Move it around a busy workshop easily - robust trolley with extra-large wheels

Advantages

• The specifications below are matched to typical workshop duty cycles and installation requirements.

Features

• Controlling vehicle specific calibration easily with diagnostic software ESI[tronic] 2.0 Online in combination with computed workflows and Target positioning: conform with OEM requirements, best efficiency and future proof (i.e. LIDAR)
• Trolley with universal fixture designed for installation of multiple Target boards: rapid and accurate 1-point, 2-point and sequential calibrations
• Scope of delivery includes a XL multi-function board: VW Group Camera calibration pattern and Radar reflector in one
• Versatility scope of delivery includes a precision measurement bar designed for magnetic fixation of components from Bosch Multi-Target-shop: For rapid and accurate placement of Target boards
• Integrated cameras and software workflows measure the distance to the vehicle and line-up to thrust line (driving axis) fully digital: guarantees a fast and accurate positioning including traceability
• Universal fixture with integrated Pitch angle fine adjustment on top of device: For comfortable and ergonomic adjustment
• Universal fixture with integrated height offset and roll angle adjustment: efficient pre-setting for dedicated working bays (i.e. above floor installed lifts)
• XL Multi-function board covers all OEM Radar mounting heights and requires just a lateral rough positioning: simplifies the setup significantly, best liability.
• Universal fixture offers Radar 3-point calibration (-2° / 0° / +2°): very ergonomic as operator can operate Diagnostic software and tiling mechanism in the same action range.
• Robust trolley with extra-large wheels: For easy maneuverability and flexibility in busy workshop environments

Scope of Delivery

• Calibration device
• XL multi-function board with VW pattern and radar reflector
• Distance measurement aid (post with reference panel)
• Camera-Set “Driving axis”
• Universal wheel clamp with target (Set)
• Software package ADAS Positioning (download also via DDM)
