Universal vehicle system analysis with innovative sensor test

Detecting faults quickly and reliably

NOTE: Full functionality of the FSA series is dependent on a subscription to Compacsoft[plus] Software Available at £255.00 + VAT per Year.

In modern motor vehicles, the proportion of electrical and electronic vehicle components is constantly rising. This development provides new challenges to the workshop.

Fast, error free fault location is of major importance to the workshop with regard to quality and economy. For this purpose, the new vehicle system testing generation from Bosch provides the diagnostics platform of the future.

Complete system for effective diagnostics

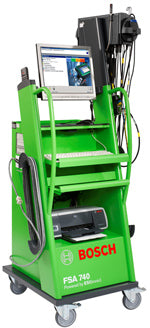

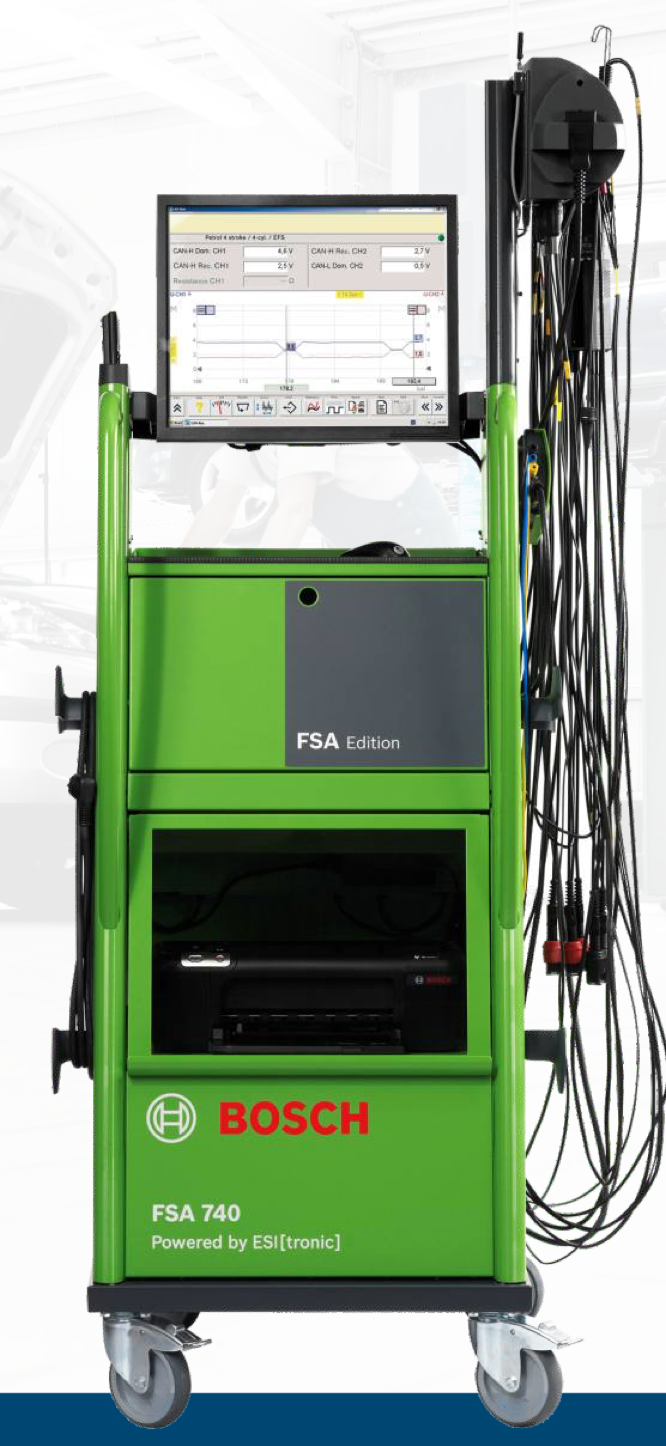

The vehicle system analysis FSA740 offers the workshop a universal diagnostics system.

• The signal generator: new and only with FSA from Bosch, permits the testing of sensors including leads and connections when installed
• Component testing: the new FSA component test program developed by Bosch is used to accurately pinpoint problems. The measurement scales and ranges are automatically selected for each component being tested. The test procedure can be conducted without the need to remove the component. Therefore time is saved by eliminating unnecessary component removal.
• Engine test: the FSA measurement module, with it's extensive range of sensors, can mange all the functions of classical engine analysers for measuring engine-related signals, such as primary and secondary ignition signals, triggering signals for ignition module, engine speed, No. 1 cylinder synchronisation and setting the ignition timing.
• Control unit diagnostics: the ECU diagnostics tester KTS540 is included in the equipment supplied. It permits reading out of fault memories in the vehicle electronics system, and locating the causes of a problem. (requires an ESI[tronic] subscription.
• The modular system layout also ensures that the FSA can be adapted to existing diagnostic systems and can be expanded step by step to a comprehensive workshop testing system.

If you run independent garages, mobile diagnostic technicians, and franchise dealer workshops, this is built for the kind of work you do day to day. In practice, you connect it to the vehicle's diagnostic port to read fault codes, view live data, and identify the cause of a reported problem before carrying out a repair.

Benefits

• Diagnose electrical faults without extra bench equipment - the 50 MS/s 2-channel oscilloscope captures accurate waveforms in-house
• Pinpoint faulty components fast - 50 pre-set component tests replace slower trial-and-error diagnosis
• Add ECU diagnostics without a separate tool - the KTS540 ECU tester is included in the equipment supplied
• Test the low-pressure fuel side too - the FSA760 adds a fluid pressure kit over the base FSA740
• Grow the system as the workshop grows - modular layout expands step by step into a full diagnostic system

Advantages

• The specifications below are matched to typical workshop duty cycles and installation requirements.

Features

• The signal generator: new and only with FSA from Bosch
• Component testing: the new FSA component test program
• Engine test: the FSA measurement module, with it's extensive range of sensors
• Control unit diagnostics: the ECU diagnostics tester KTS540 is included in the equipment supplied.
• Oscilloscope: 2-channel, 50 MS/s sample rate
• Component Testing: 50 pre-set tests
• Included ECU Tester: Bosch KTS540
• FSA760 Addition: Fluid pressure kit for low-pressure fuel supply testing
• System Type: Modular, PC-based (monitor, remote control, printer included)
