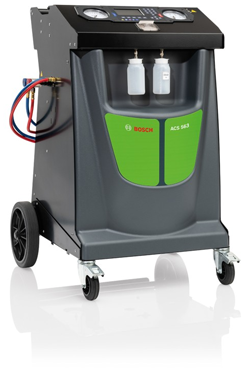

Bosch R1234YF Air Conditioning Station ACS563
Bosch R1234YF Air Conditioning Station
The ACS 563 (1234yf) is the latest addition to the new Bosch AC service range. It offers the right balance of performance and functionality and covers basic service tasks such as refrigerant recovery, recycling and refrigerant recharge.
An integrated vehicle database guides the process automatically, eliminating guesswork on fill quantities. Compact and manoeuvrable, the station fits comfortably in any service bay without consuming floor space needed for lift operations.
Specifications
- Refrigerant: R1234yf
- Operating mode: Fully automatic
- Recovery function: Automatic
- Recovery rate: Up to 95%
- Refrigerant detection: Optional (external)
- Oil drain: Automatic, timed
- Vacuum function: Automatic
- Leak test: Automatic
- Pressure leak test: Yes
- Pressure leak test (N2 / N2H2): No
- Hybrid oil function: Yes
- Oil injection: PAG/POE Automatic
- UV dye injection: No
- Refrigerant charge: Automatic, with electronic scale
- Flushing function: Optional
- Printer: ACS 553-P
- Ventilation system: Electronic control
- Valves, HP/LP: Valveless
- Pressure gage, HP/LP: 100 mm, pulse-free
- Tank pressure display: No
- Service hoses: 2,5 m (5 m optional)
- Display: 4.3" color display
- Compressor: 1/4 HP
- Vacuum pump: 70 l/min. (2.5 CFM)
- Refrigerant tank capacity: 8.9 kg (R1234yf)
- Oil bottles: 2 x 250 ml
- Used oil bottle: 1 x 250 ml
- UV dye bottle: No
- Dimensions in cm (L x W x H): 99 x 69 x 67
- Weight (with empty refrigerant tank): 74 kg
- Vehicle database: Yes
- Programmable user database: Yes
- A/C system performance test: Yes
- Vehicle flushing adapter kit: Optional kit
- USB port: Yes
- Wi-Fi connection: Optional
- App connection: Optional
