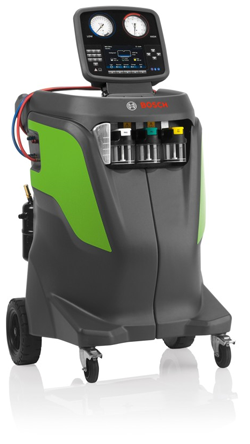

Bosch R134A Air Conditioning Station

Robust, yet manoeuvrable, the ACS 753 fully-automatic service unit is the new reference for R134a air conditioning service units, compatible with commercial vehicles, trucks and hybrid A/C systems meeting the SAE J2788 and European Standards. The ACS 753 has been designed to make life easier in the workshop, enabling quick and reliable service and maintenance with a range of functions at your fingertips.

An integrated vehicle database guides the process automatically, eliminating guesswork on fill quantities. Compact and manoeuvrable, the station fits comfortably in any service bay without consuming floor space needed for lift operations.

Specifications

Refrigerant: R134a
Operating mode: Fully automatic and single function
Refrigerant recovery: Automatic
Recovery accuracy / performance: > 99 %
Refrigerant analysis: Optional
Oil recovery: Automatic with electronic scale
Vacuum: Automatic
Leak test: Automatic
Oil injection: Automatic with electronic scale PAG / POE injection
UV dye injection: Yes, automatic
Refrigerant charge: Automatic with electronic scale.
Refrigerant charge accuracy: 15 g
Flushing function: Avalaible with optional kit
Printer: Embedded
Air purge system: Automatic, electronic control
A/C hybrid system compatibility: Yes
A/C system database: Embedded
User database: Yes
A/C system performance test: Yes
Inert gases leak detection (N, H, N, Nox, ) function: Yes
Wireless workshop network connection: Asanetwork Bosch Connected Repair
Remote control from mobile: Yes
HP & LP panel valves: None
HP & LP pressure gauges: Yes, pulse-free
Internal tank pressure gauge: Digital
Service hoses and couplers: 2.5 m (extension: optional)
Display: Colour display 7 (800 x 480 pixels) Colour depth 16 M
Compressor: 1/4 HP
Vacuum pump: Dual Stage 170 l/min
Refrigerant tank capacity: 17,4 kg (usable)
IN oil tank: 2 x 250 ml (Sealed bottles with piston)
OUT oil tank: 1 x 250 ml
UV tank: 1 x 250 ml (Sealed bottles)
Inert gases leak detection (N, H, N, Nox, ) kit: Optional
Wireless kit - dongle: Included
Operating Temperature: +10 C / + 50 C
Storage and Transport Temperature: -20 C / + 60 C
Power Supply: 230 V 50/60 Hz
Power: < 1100 W
