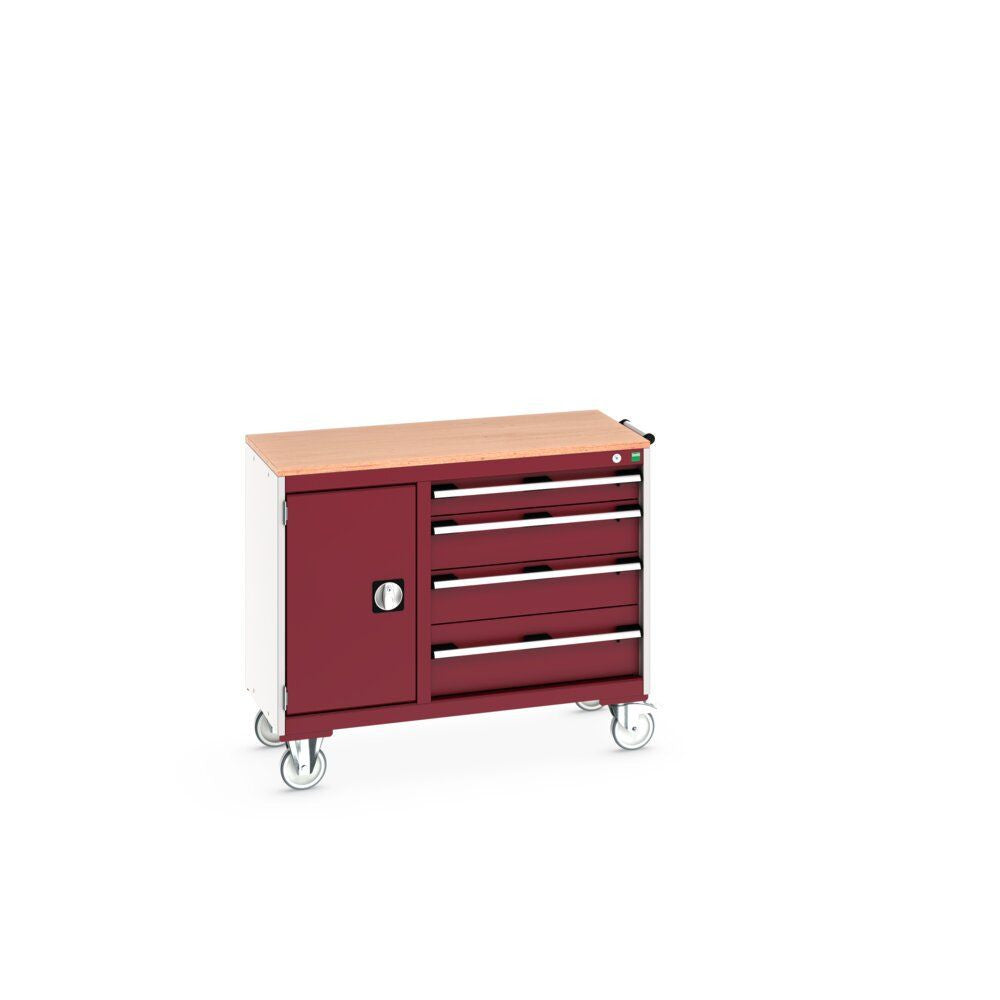

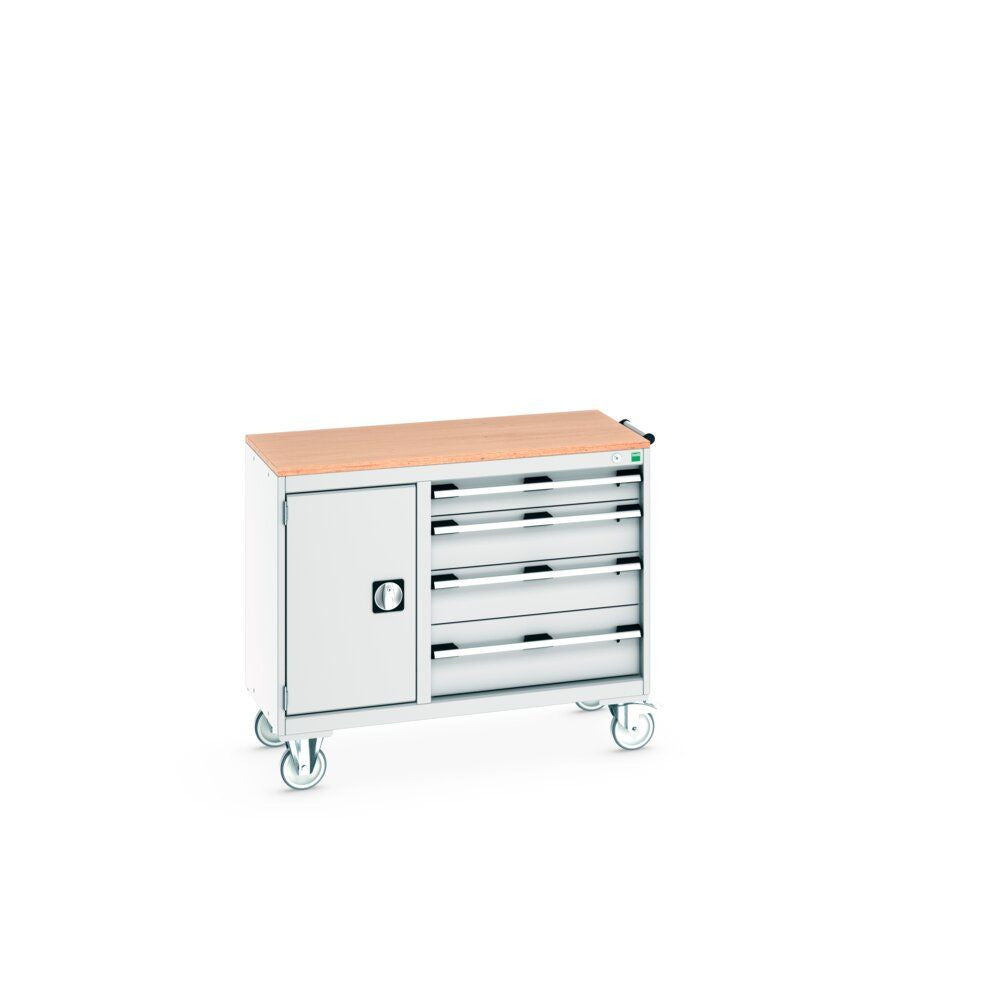

Bott Cubio Maintenance Trolley (Multiplex) 400/650 with Cupboard / 4 Drawers, 1050x525x890mm

4 drawers and a lockable cupboard on wheels, built for maintenance on the move.

This bott cubio maintenance trolley pairs 4 drawers with a perfo lined cupboard under a 20mm oiled beech multiplex worktop with a warm, solid feel. It measures 1050mm wide x 525mm deep x 890mm high and carries up to 600kg on 125mm braked castors. Choose light grey, anthracite grey, gentian blue, crimson red or all over anthracite grey to match your workshop or company colours.

Who it's for

• Plant and machine maintenance teams
• Automotive, HGV and fleet workshops
• Production and assembly lines
• Facilities and estates engineers

Why you'll love it

• Bring a full kit of tools to the machine in one trip
• Drawers glide fully open on roller bearing runners
• The cupboard takes bulky items like power tools and fluids

What sets it apart

• Central locking, drawer blocking and a safety catch on every drawer
• 50kg UDL per drawer, 100kg UDL adjustable shelf
• Heavy duty steel housing with central partition
• Push pull handle

How you'll use it

Load the drawers with your planned maintenance kit and keep power tools in the cupboard. Push the trolley to the job, lock the castors, and use the worktop as your work surface.

Manufacturer warranty

As an authorised bott dealer we supply genuine UK stock. Built for long-term performance and available with an extended 10-year guarantee. This reflects confidence in the quality, durability and engineering of products. bott sets guarantee terms and exclusions.

Key features

• Designed to withstand the rigours of industrial use
• Push pull handle
• Durable, 20mm thick, multiplex worktop

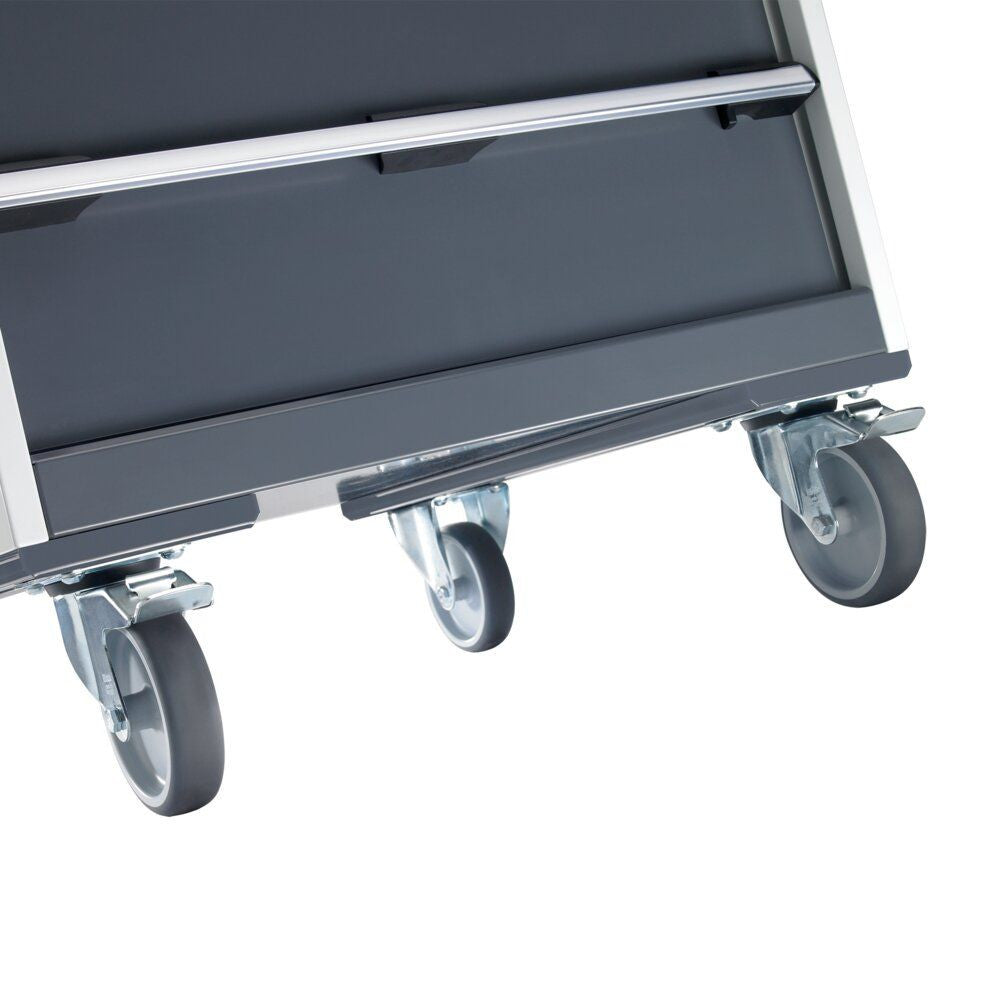

• 125mm diameter castors with swivel and brake mechanism on two wheels
• Total load capacity 600kg
• Central locking drawers
• Drawer blocking on all drawers
• 100% extension drawers
• Additional safety catch on all drawers to prevent accidental opening
• 50kg UDL capacity per drawer
• Roller bearing runners ensure ease of action
• Galvanised steel drawer pans

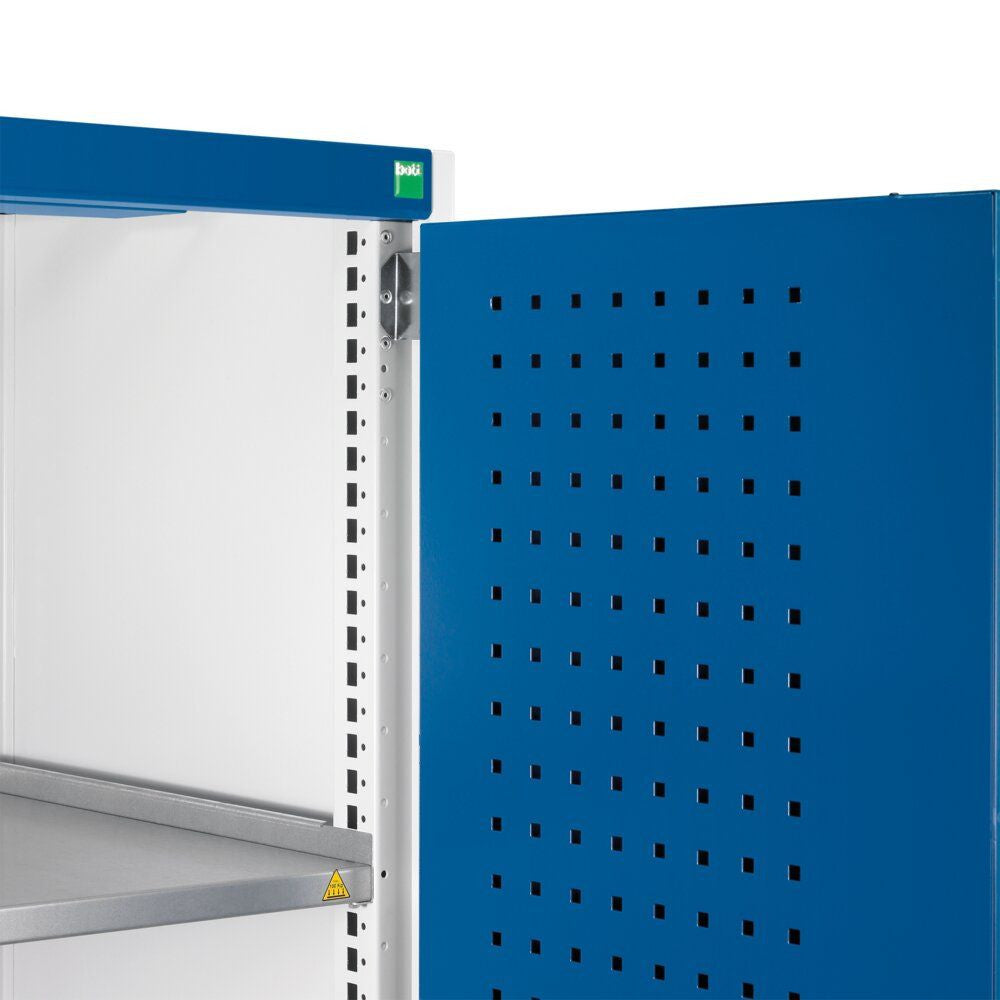

• Cupboard section has perfo lined, lockable door with 180 degree opening
• Cupboard includes an adjustable height, galvanised steel shelf with 100kg UDL capacity
• Durable powder coat finish
• Metal divider, inlay mats, plastic trough dividers and removable plastic boxes available
• Master and electronic locking available
• Dimensions (WxDxH): 1050 x 525 x 890mm
• Net weight: 93.81 kg
• Total load capacity: 600 kg
• Drawers: 4 (1x 100, 2x 150, 1x 200 mm front heights)
• Internal drawer size: 275 / 525mm wide x 400mm deep
• Drawer capacity: 50 kg UDL each
• Shelves: 1, 100 kg UDL each
• Doors: 1 (perfo)
• Top: Beech Multiplex, 20mm
• Castors: 125mm non marking rubber, 2 fixed, 2 swivel with brake

Large units arrive on a pallet, so please make sure there is clear access at the delivery address.
