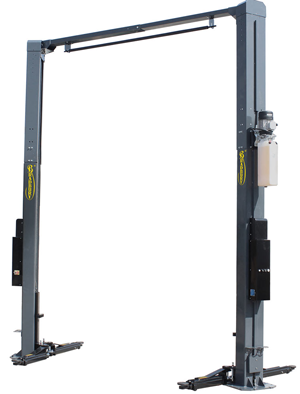

Bradbury 2 Post Vehicle Lift HA2403G
Bradbury 2 Post Vehicle Lift
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.
Benefits
- Work underneath without base-plate obstruction - fully baseless design with overhead gantry
- Choose the width that fits your bay - available in Narrow and Wide drive-through versions
- Lift low vehicles safely - 95mm minimum pad height, adjustable up to 140mm
Advantages
- The specifications below are matched to typical workshop duty cycles and installation requirements.
Features
- HA2403GN Narrow version 2522mm drive through width / 4262mm overall height
- HA2403GW Wide version 2722mm drive through width / 4012mm overall height
- Lifting Capacity: 4000kg
- Lifting/Lowering Time: 30 seconds
- Minimum Height (pad): 95mm - 140mm
- Maximum Height: 1825mm - 1870mm
- Front Minimum/Maximum Arm Lengths: 640mm / 1145mm (GW) / 590mm 995mm (GN)
- Rear Minimum/Maximum Arm Lengths: 880mm / 1560mm (GW) / 710mm 1275mm (GN)
- Motor Size: 3 Phase
- Overall Height of Lift: 4012mm (GW) / 4262mm (GN)
- Operation: Electro-hydraulic
