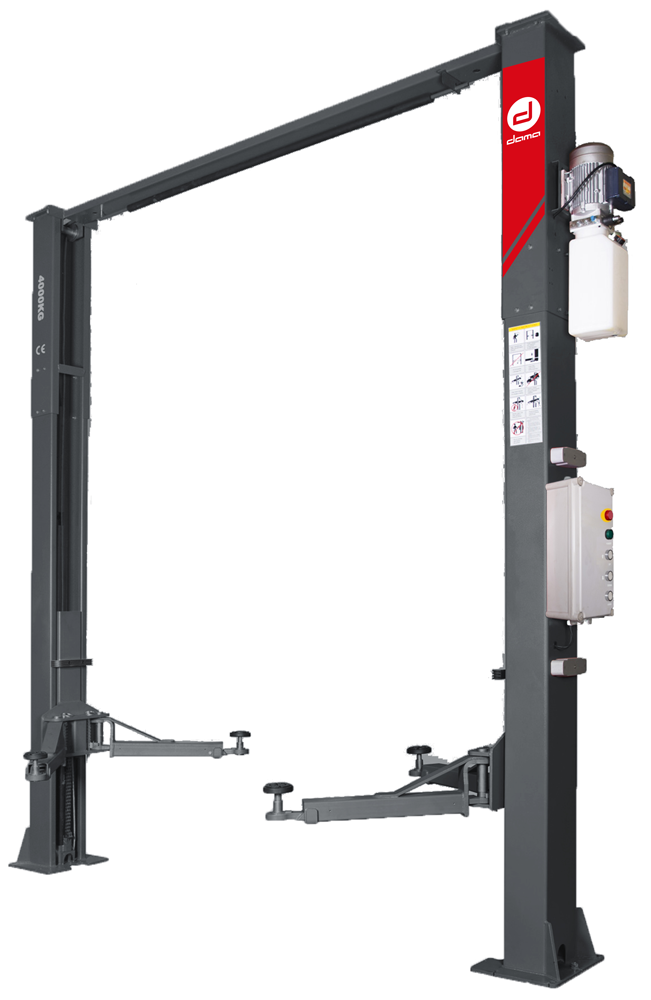

Dama 4T Baseless 2 Post Lift HDM40TSB2
A clear floor, 4 tonnes of lift and arms that reach cars, 4x4s and vans. Dama's best selling 2 post lift.
Q4 offer: save £600 inc VAT until 31 December 2026. Was £4,314, now £3,714 inc VAT.
The HDM4.0T/SB2 is a baseless electro hydraulic 2 post lift with nothing on the floor between the posts, so jacks, gearbox stands and oil drainers roll straight under the vehicle. It runs on single or 3 phase power and the price includes delivery and installation.
Who it's for
- Independent garages and MOT centres
- Franchise and fleet workshops servicing cars, 4x4s and vans
- Tyre, brake and exhaust centres that want a clear floor
Why you'll love it
- Roll equipment freely underneath, with no base frame to trip over or drive across
- Lift the full mix of your work, from small hatchbacks to 4x4s and vans, on one bay
- Work at height with confidence, with two height switches, one for the vehicle and one for the carriage
- Fit it where the power is, with single or 3 phase versions
What sets it apart
- Four 3 stage arms and 80mm riser extension pads reach awkward jacking points as standard
- Two chain driven pistons with a synchronisation steel cable keep both carriages level
- Electromagnetic lowering valve for smooth, controlled descent
- Upgrade later with optional EV arms, 300mm or 500mm height extensions, or the HDM20A lifting platform
How you'll use it
Drive in between the posts, swing the 3 stage arms to the jacking points, set the pads and raise the vehicle to a comfortable working height for brakes, exhausts, suspension or underbody work. The locks hold it safely at height, and the electromagnetic valve brings it down smoothly when you're done.
Manufacturer warranty
Backed by Dama's 24 month parts and labour warranty, with UK support from our team on 0116 4810180 if you ever need a hand.
Key features
- 4000kg lifting capacity
- Baseless design, clear floor between posts
- 3900mm inner clearance
- 4 x 3 stage arms with 80mm riser extension pads
- Two chain driven pistons
- Synchronisation steel cable
- Aluminium alloy motor
- Electromagnetic lowering valve
- 2 height switches, car and carriage
- Single or 3 phase
- Delivery and installation included

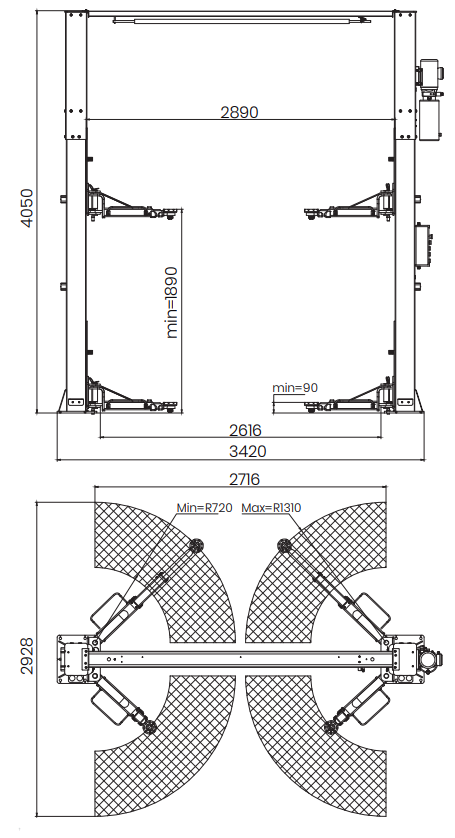

Technical specification
| Maximum lifting capacity | 4000kg |
|---|---|
| Inner clearance | 3900mm |
| Arms | 4 x 3 stage |
| Riser pads | 80mm |
| Drive | 2 chain driven pistons with synchronisation cable |
| Lowering valve | Electromagnetic |
| Power supply | 230V 1 phase or 400V 3 phase |
| Warranty | 24 months |
Downloads
Dama HDM4.0T/SB2 spec sheet (PDF, 139KB)
Dama 2025 catalogue, tyre, wheel and lift section, page 42 (PDF, 12MB, English, Spanish and French)
Tell us at order which power supply your workshop has, single or 3 phase.
