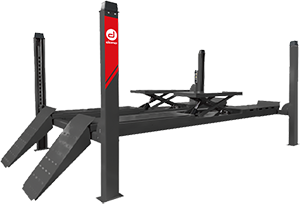

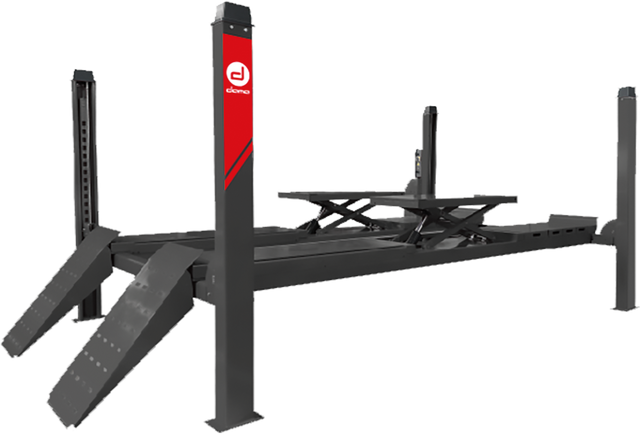

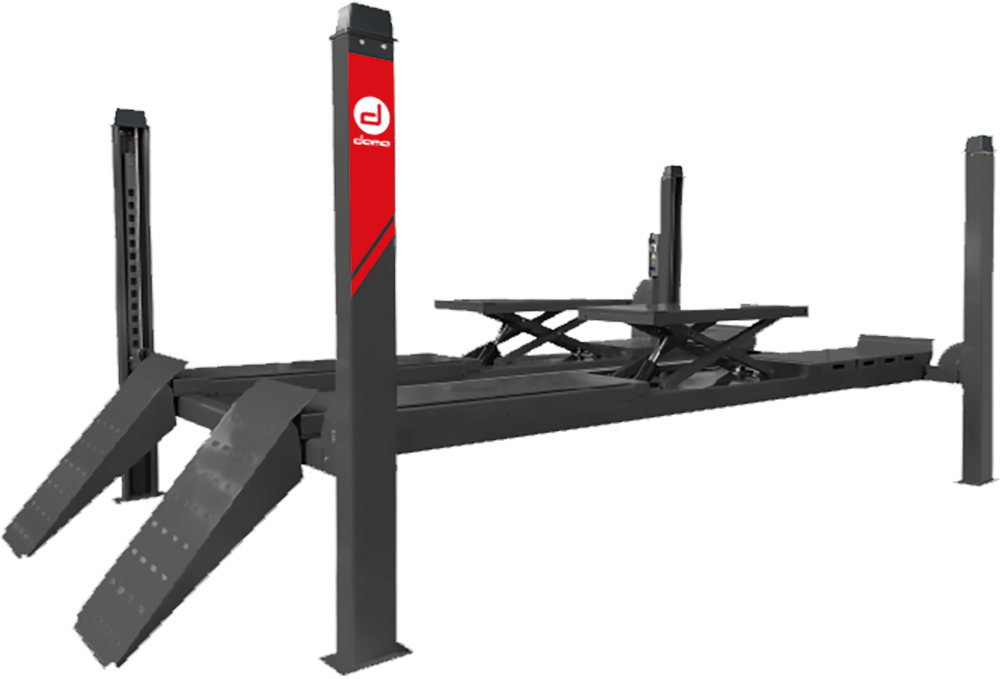

Dama 5T 4 Post Lift w/ Integral Scissor HDM5002SL
A 4 post service lift that turns into a wheel alignment lift, with no jacking beams needed.
The Dama HDM500.2SL is a 5 tonne 4 post lift with a built in 3.5 tonne secondary scissor. Switch between wheels on the runway and all four wheels in the air at the touch of a button. Lockable slip plates, removable front turnplate plates and long run on ramps make it a complete alignment bay. Price includes delivery and installation.
Who it's for
- Tyre and wheel alignment centres
- MOT and service workshops
- Fleet and van operators
Why you'll love it
- Do alignment and wheel free work without separate jacking beams
- Lift long vans and SUVs on 4800mm runways
- Work safely with multiple independent safety systems
What sets it apart
- 5000kg main and 3500kg secondary capacity
- Pneumatic locking, steel rope slack switch and top limit switch
- Electromagnetic lowering valve for smooth descent
- Available in 1 or 3 phase
How you'll use it
Drive onto the runways, seat the wheels on the turnplates and slip plates and raise the lift. When you need the wheels off, raise the built in scissor to lift all four clear, do the job, then lower back onto the runways for the final alignment check.
Manufacturer warranty
Backed by Dama's 24 month manufacturer warranty, with UK support from our team on 0116 4810180.
Technical specification
| Maximum lifting capacity | 5000kg |
|---|---|
| Secondary scissor capacity | 3500kg |
| Platform length | 4800mm |
| Platform width | 630mm |
| Lifting time | 50 to 65 seconds |
| Lift weight | 1980kg |
| Power supply | 400V 3 phase 50Hz, 2.2kW (single phase available) |
| Warranty | 24 months parts and labour |
