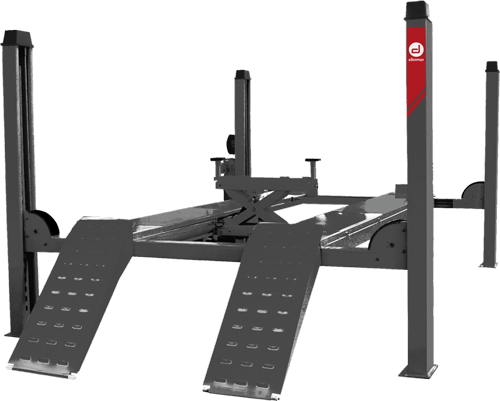

Dama 5T 4 Post Lift with 5140mm Platforms HDM55140
A 5 tonne 4 post lift sized for cars, EVs, loaded vans and small trucks, ready for wheel alignment.
The Dama HDM5.5140 has 5140mm platforms, built in lockable rear slip plates and removable front recesses for turnplates, with 2900mm between the posts. Air locking gives precise levelling, and it runs on 230V or 400V. Backed by a 2 year parts and labour warranty.
Who it's for
- Service and MOT preparation workshops
- Tyre and alignment centres
- Garages working on EVs and loaded vans
Why you'll love it
- Lift heavy EVs and loaded vans with headroom to spare
- Add wheel alignment without a separate lift
- Install on single or 3 phase power
What sets it apart
- 5000kg capacity
- 2900mm between the posts
- Adjustable platform width
- Electronic descent and air locking
How you'll use it

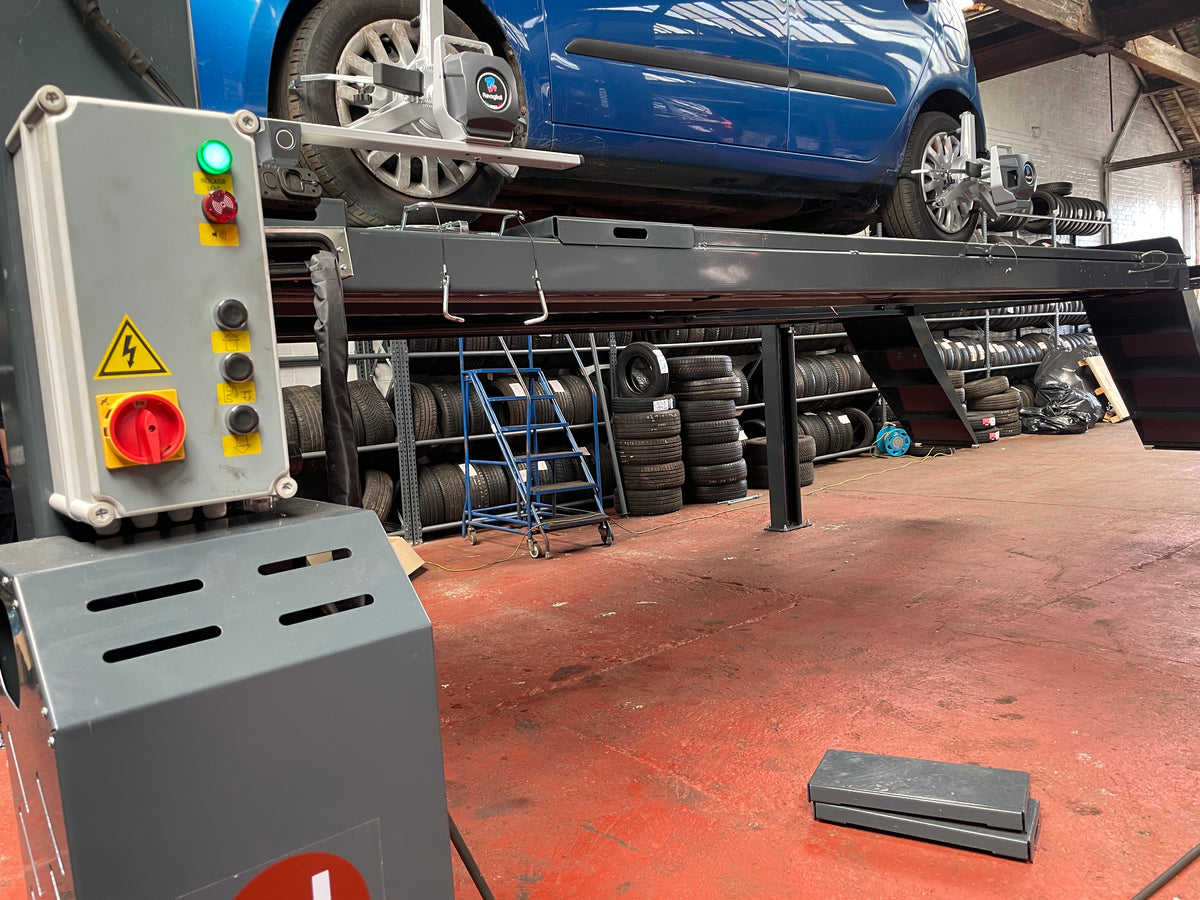

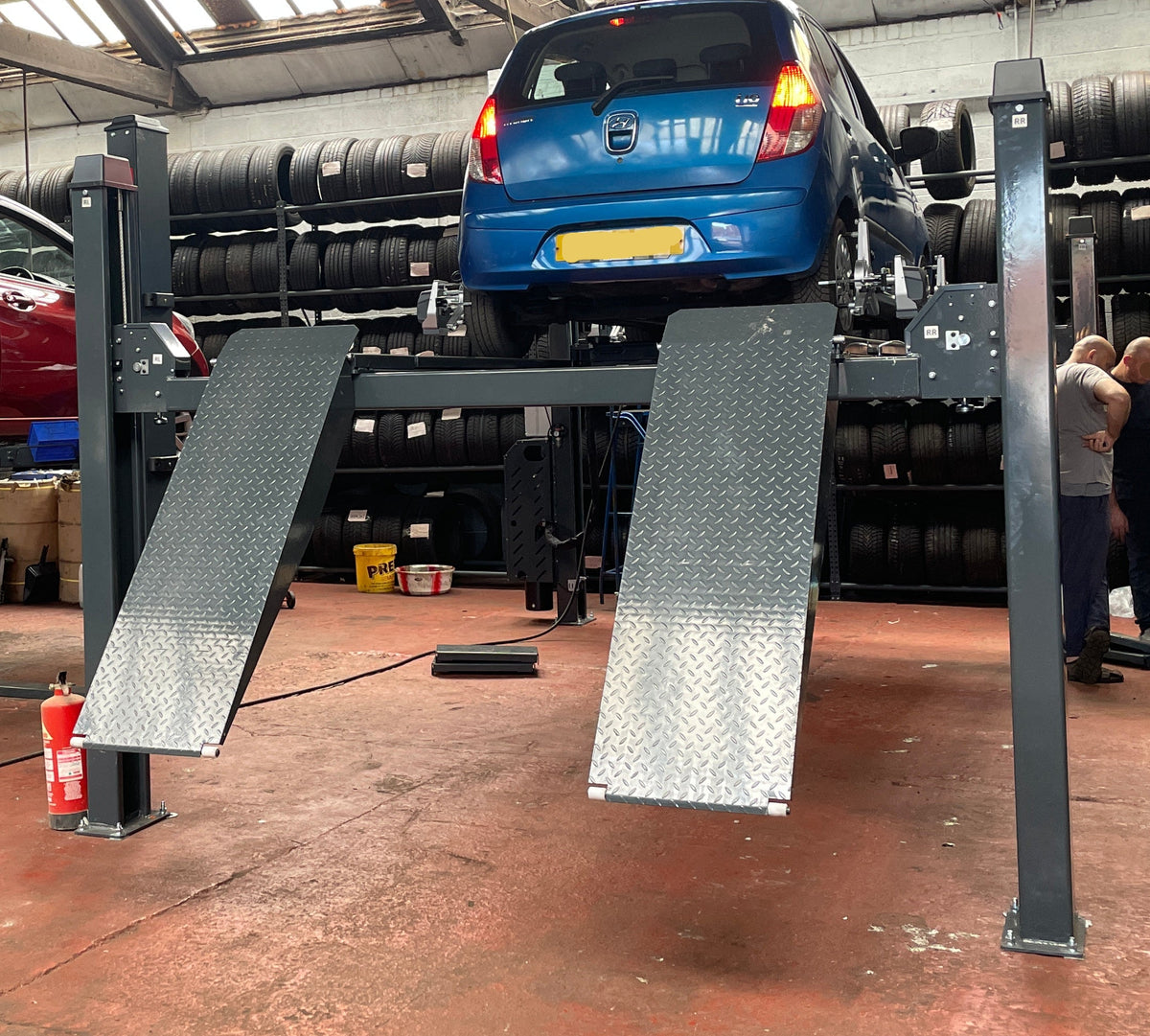

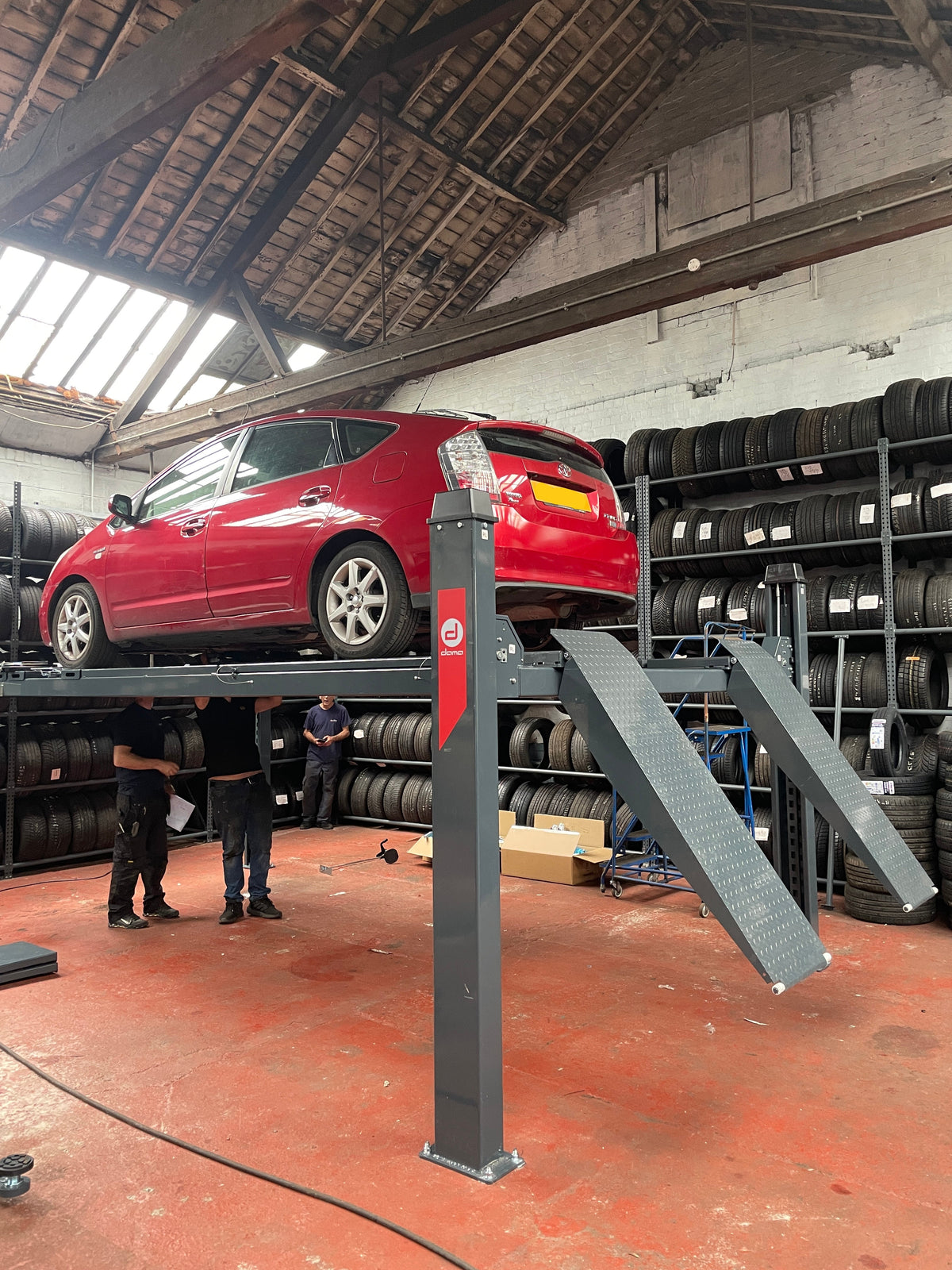

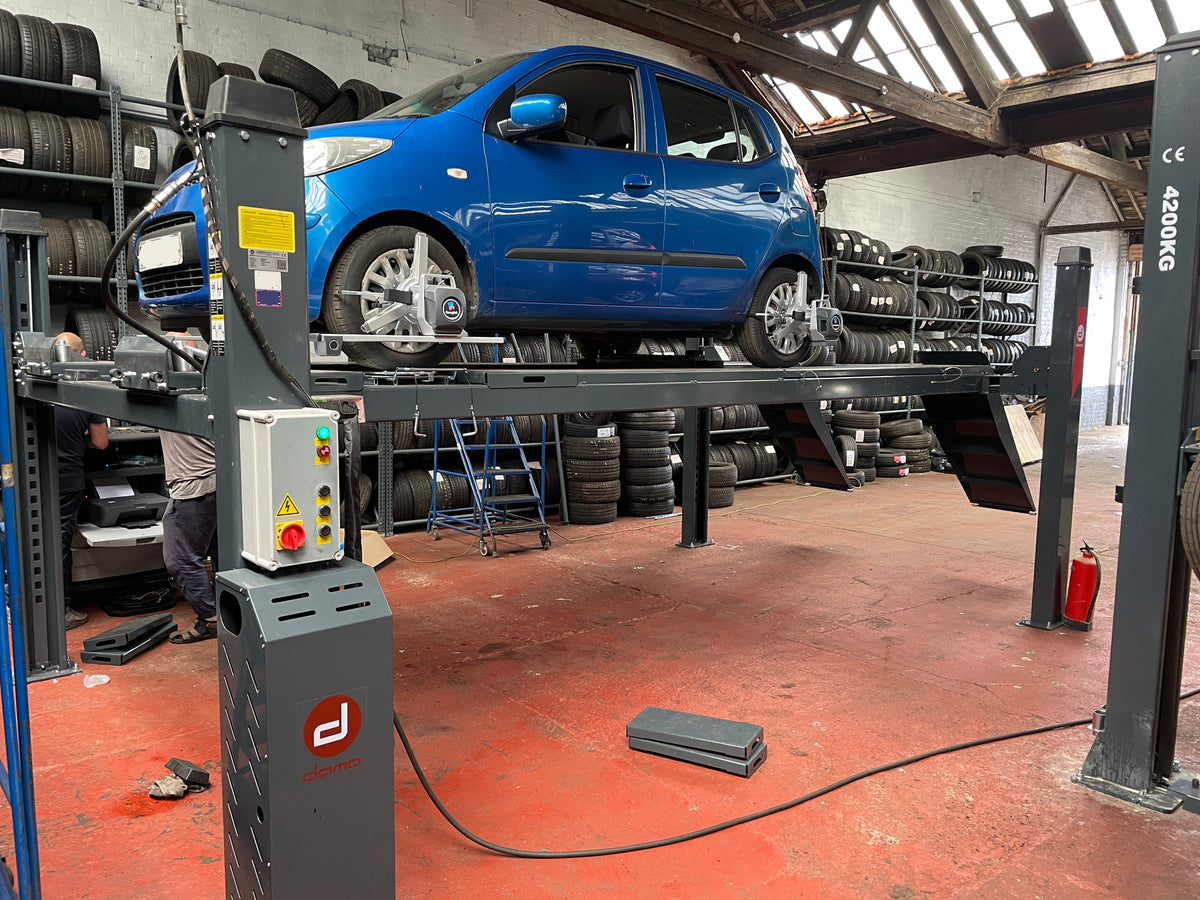

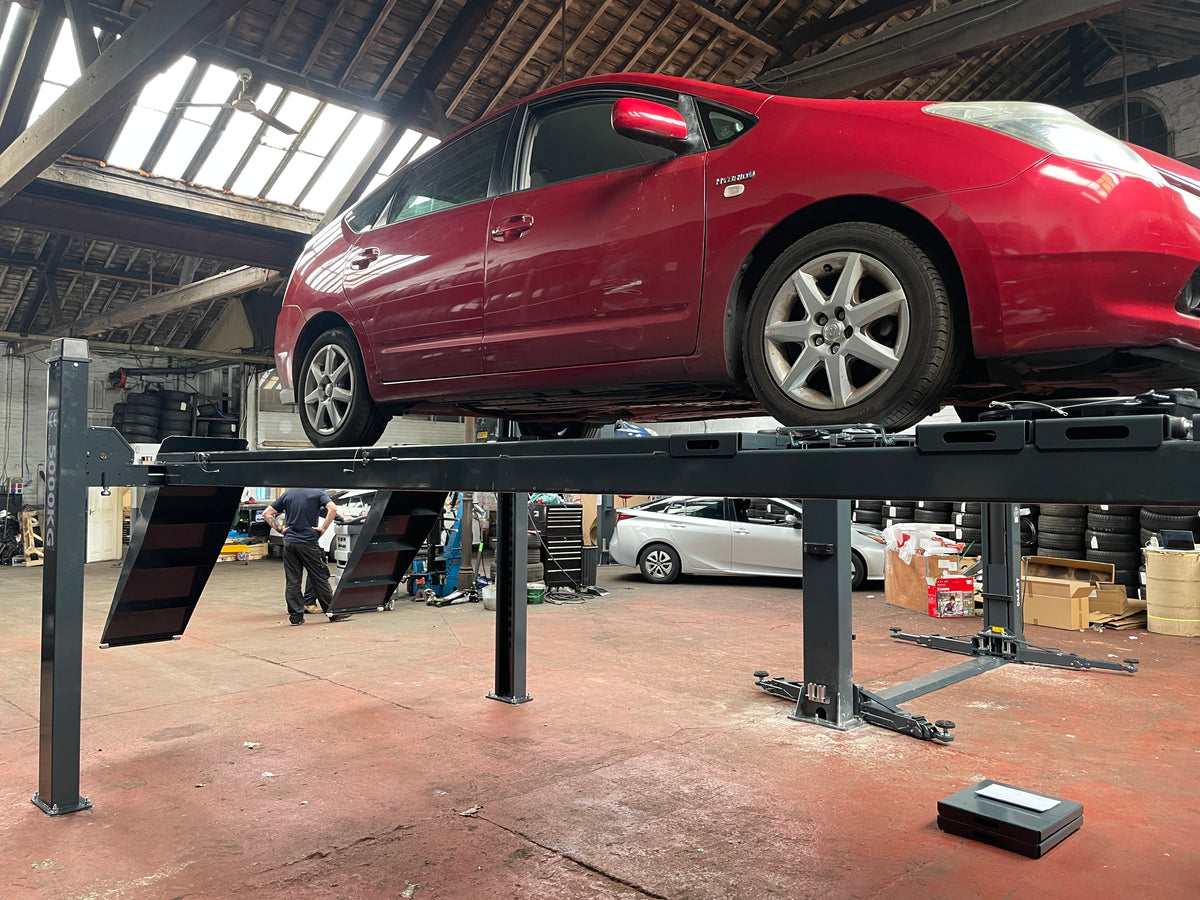

Drive onto the platforms, set the turnplates in the front recesses and use the rear slip plates for alignment. Raise up to 1900mm for service work, with air locks holding the platforms level.
Manufacturer warranty
Backed by Dama's 24 month manufacturer warranty, with UK support from our team on 0116 4810180.
Key features
- Service and wheel alignment lift
- Built in lockable rear slip plates
- Removable front recesses, turnplates optional
- Air locking for precise levelling
- Electronic descent system
- Single or 3 phase
- Optional jacking beams 2T to 3T

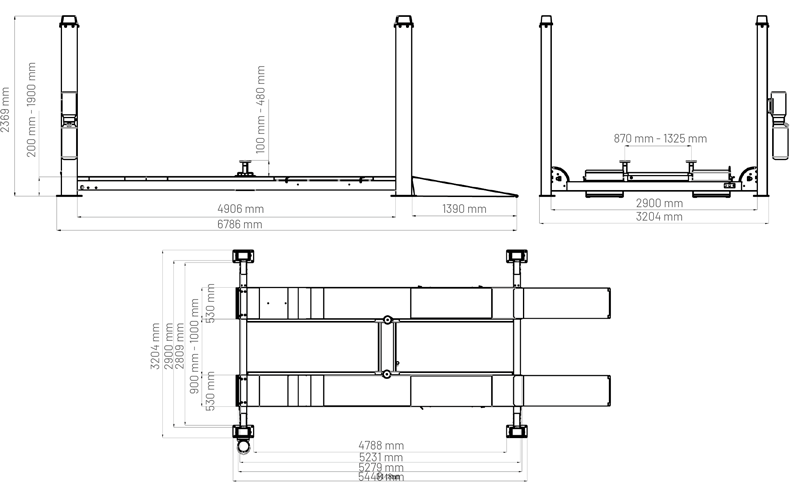

Technical specification
| Maximum lifting capacity | 5000kg |
|---|---|
| Platform length | 5140mm |
| Width between posts | 2900mm |
| Lifting height | 1900mm |
| Overall height | 2369mm |
| Lifting and lowering time | under 120 seconds |
| Power supply | 230V 1 phase or 400V 3 phase |
| Warranty | 24 months parts and labour |
