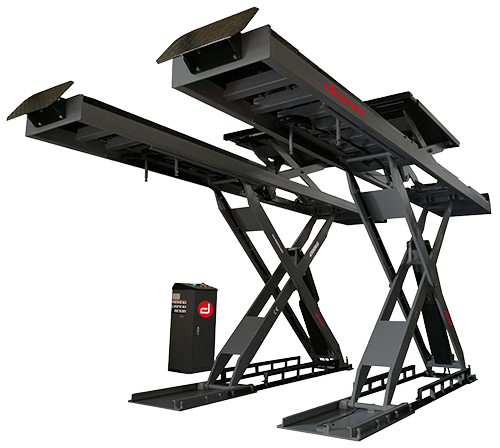

Dama 5.5T Wheel Alignment Scissor Lift with J-Beam Rails HDM55MSI2HR
Geometry accurate enough for modern 3D aligners, plus rails ready for a jacking beam.
The Dama HDM5.5MSI2HR is a 5.5 tonne wheel alignment scissor lift with an integral secondary scissor, rear slip plates, front turnplate recesses and rails for a jacking beam. Accurate synchronisation and air locking keep it level and repeatable, and it can be recessed or surface mounted with optional extended run up ramps. Price includes delivery and installation.
Who it's for
- Wheel alignment specialists using 3D aligners
- Dealer and fleet workshops servicing cars to large vans
- Tyre centres adding a geometry bay
Why you'll love it
- Get repeatable alignment results with the lift locked level
- Service cars through to large vans on one 5000mm platform
- Fit a jacking beam on the built in rails for even more flexibility
What sets it apart
- 5500kg capacity with integral secondary scissor
- Main lift range 380mm to 2200mm
- Air locking on an 8 bar supply

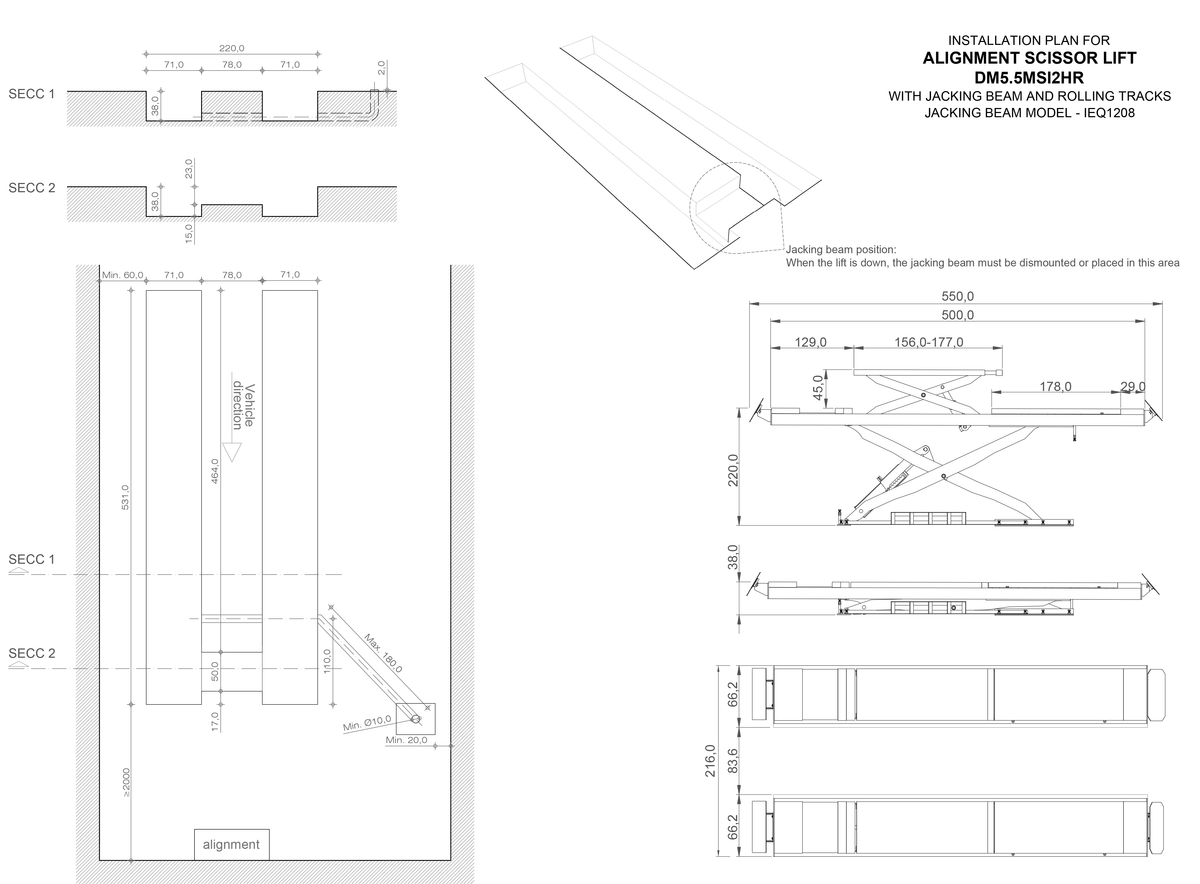

- Recessed or surface mounted installation
How you'll use it
Drive onto the platforms, seat the front wheels in the turnplate recesses and the rears on the slip plates, then raise to your alignment height and let the air locks hold it level. Lift the wheels free on the secondary scissor or a jacking beam when you need to adjust or remove them.
Manufacturer warranty
Backed by Dama's 24 month manufacturer warranty, with UK support from our team on 0116 4810180.
Technical specification
| Load capacity | 5500kg |
|---|---|
| Main lift elevation | 380mm to 2200mm |
| Secondary lift elevation | 450mm |
| Main platform length | 5000mm |
| Lifting and lowering time | under 90 seconds |
| Air supply | 8 bar |
| Power supply | 400V 3 phase 50Hz, 2.2kW |
| Warranty | 24 months |
Downloads
Needs a 3 phase supply and compressed air.
