Garage Equipment 4 Tonne Baseless Electronic Release 2 Post Car Lift SKU GEO189
Manufacturer's Warranty Included.
Garage Equipment 4 Tonne Baseless Electronic Release 2 Post Car Lift SKU GEO189 - Pickup From Warehouse: Sandford Street Birkenhead Merseyside CH41 1BN is backordered and will ship as soon as it is back in stock.
Having moved to a new location and setting up a ltd with all the chaos that involves, buying the needed equipment to service cars was difficult. Advantage Empire worked hard to get me up and running to stay profitable thanks guys
GreysonTrustpilot
Couldn't load pickup availability
Delivery, Shipping & Install
Delivery, Shipping & Install
Standard Shipping time: 3 to 5 business days
Order Handling time: 1 to 2 business days
Most orders will be shipped out within 1 business day except weekends and holidays. See our Shipping Policy for full details.
For Installation & Engineering Services, please call 0116 4810180.
Returning An Order
Returning An Order
We want you to be completely satisfied with your purchase. If you’re not, we’re here to help. Returns are accepted within 30 days of delivery. For change-of-mind returns you pay return shipping and a 15% restocking fee may be deducted - faulty, damaged or incorrect items are always refunded in full.
See our Returns & Refunds Policy for full details.
Garage Equipment 4 Tonne Baseless Electronic Release 2 Post Car Lif...
Garage Equipment 4 Tonne Baseless Electronic Release 2 Post Car Lift SKU GEO189, Quote For Install
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.
These high quality Clear-Floor 4 Tonne 2 Post lifts from the GEO range of garage equipment. The GEO Baseless Electronic Release 2 post lift is a fully CE certified vehicle lift, which conforms to all UK and EU safety Regulations.
This Electro Hydraulic 2 Post Lift comes equipped with the following features as standard,
Benefits
- Keep the floor clear around the vehicle - baseless design, nothing underfoot between the posts
- Release both arms in one action - dual point automatic electromagnetic release
- Lower safely if hydraulics fail - parachute valve under each cylinder arrests descent on hose failure
- Fit varying wheelbases - three-stage telescopic arms with lift pad extensions included

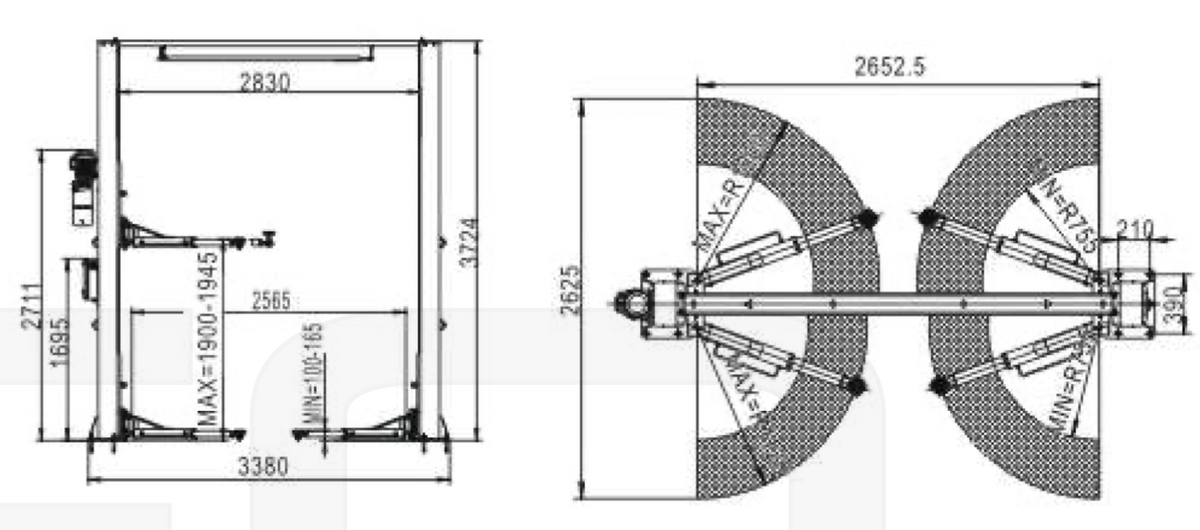

| 4 Tonne Baseless 2 Post Lifts Specifications | |
|---|---|
| Maximum Lifting Capacity | 4000kg |
| Lifting Time | <50s |
| Descent Time | <40s |
| Lifting Height | 1900mm |
| Minimum Height | 100mm |
| Overall Height | 3751mm |
| Overall Width | 3380mm |
| Distance Between Columns | 2830mm |
| Drive Through Width | 2565mm |
| Arm Length | 720-1110mm |
| Mount Width | 3380mm |
| Single Phase | 240V/50Hz |
| 3 Phase | 400V/50Hz |
| Motor Power | 2.2kw |
Features
- Dual hydraulic cylinders.
- Dual point automatic release. (Electromagnetic)
- Three stage telescopic lifting arms.
- Lift Pad Extensions Include.
- Parachute valve under each cylinder in case of hydraulic hose fracture.
- Relief valve to prevent overloading.
- Lift height limit safety system.
- Synchronisation cable.
- Aluminium shell motor, 24v low-voltage control system.
- Emergency manual drop function with adjustable dropping speed control.
- Machine welded 2 post lift for extra stability.
- High Quality Powder Coated Finish.
- All Moving Components are Fully Galvanised.
- All Two Post Lifts Come with a full Two Year Parts Warranty.
- Maximum Lifting Capacity: 4000kg
- Lifting Time: <50s
- Descent Time: <40s
- Lifting Height: 1900mm
- Minimum Height: 100mm
- Overall Height: 3751mm
- Overall Width: 3380mm
- Distance Between Columns: 2830mm
- Drive Through Width: 2565mm
- Arm Length: 720-1110mm
- Mount Width: 3380mm
- Single Phase: 240V/50Hz
- 3 Phase: 400V/50Hz
- Motor Power: 2.2kw
- GEO C4000es Datasheet
