Garage Equipment 4 Tonne Electronic Release H Frame 2 Post Lift SKU...
Garage Equipment 4 Tonne Electronic Release H Frame 2 Post Lift SKU GEO202
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.
This high quality 4 Tonne Electronic Lock Release H Frame 2 Post Lift from the GEO range of garage equipment. The GEO Four Tonne Electronic Release full base two post lift carries a UK issued Ce certificate which conforms to all current UK and EU safety regulations.
When installing a 2 post lift you will require a concrete depth of six inches or more. If you have slightly less than the required depth then H frame version of our 4 tonne electronic 2 post lift is the ideal solution as it distributes the load more effectively often removing the need to dig out the floor and start over.

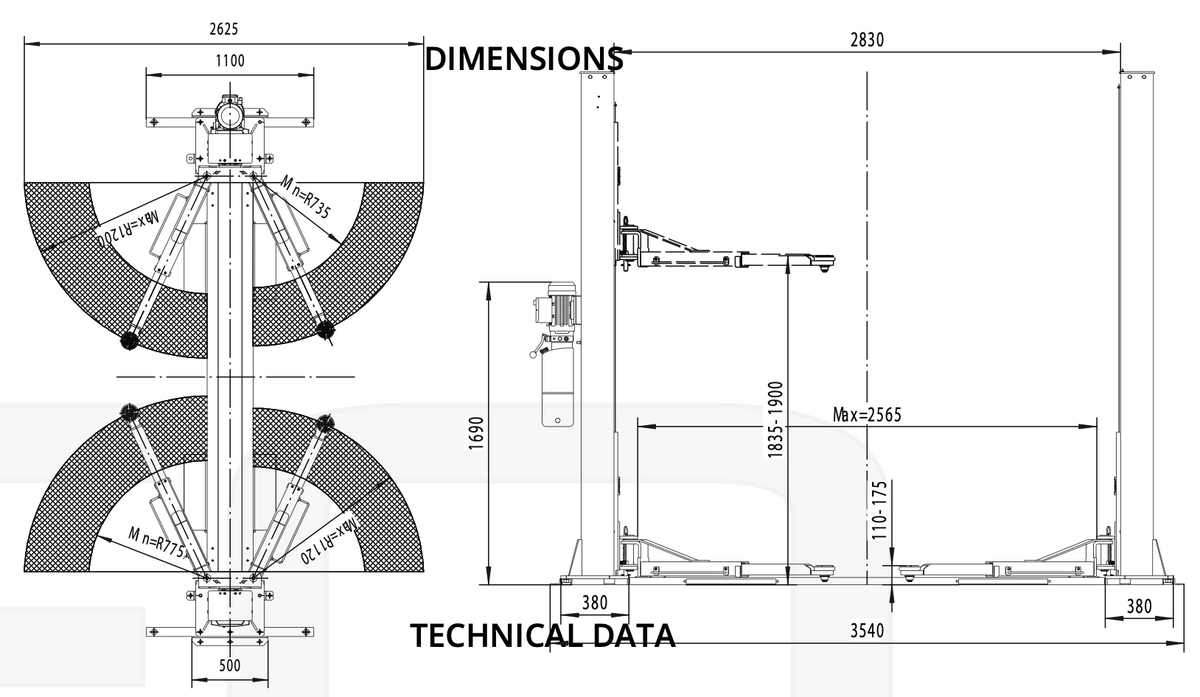

| Electronic Release H Frame 2 Post Specifications | |
|---|---|
| Maximum Lifting Capacity | 4000kg |
| Lifting Time | 50Seconds |
| Descent Time | 30Seconds |
| Lifting Height | 1900mm |
| Minimum Height | 130mm |
| Overall Height | 2830mm |
| Overall Width | 3540mm |
| Drive Through Width | 2565mm |
| Short Arm Length | 735-1120mm |
| Long Arm Length | 775-1200mm |
| Single Phase | 240V/50Hz |
| 3 Phase | 400V/50Hz |
Benefits
- Install without a deeper concrete pour - H frame distributes load, often avoiding the need to dig out the floor
- Protect vehicle doors during loading - protective rubber on the posts
- Lower safely if hydraulics fail - Italian-made parachute valves arrest descent on hose failure
- Trust the build quality - machine-welded frame with fully galvanised moving components
- Dual hydraulic cylinder two post lift.
- Dual point manual lock release.
- Two stage telescopic lifting arms.
- Spiral step-less adjustment arm tray, (Optional Extension Adaptor)
- Mechanical safety device, both sides manual unlocking, manual drop-down.
- Italian made parachute valve in each hydraulic cylinder arrests the descent of the lift in the case of sudden hydraulic hose failure.
- Relief valve to prevent overloading.
- Protective rubber on posts to avoid damage to vehicle doors when opening.
- Lift height limit safety system.
- Synchronisation cable.
- Aluminium shell motor, 24 v low-voltage control system.
- Emergency manual drop function with adjustable dropping speed control.
- Machine welded 2 post lift for extra stability.
- Powder Coated Finish.
- All Moving Components are Fully Galvanised.
- All Two Post Lifts Come With a full two Year Parts Warranty.
Advantages
- Runs on a standard single-phase supply, so no dedicated three-phase circuit is required.
Features
- Maximum Lifting Capacity: 4000kg
- Lifting Time: 50Seconds
- Descent Time: 30Seconds
- Lifting Height: 1900mm
- Minimum Height: 130mm
- Overall Height: 2830mm
- Overall Width: 3540mm
- Drive Through Width: 2565mm
- Short Arm Length: 735-1120mm
- Long Arm Length: 775-1200mm
- Single Phase: 240V/50Hz
- 3 Phase: 400V/50Hz
- GEO B4000es H Datasheet
