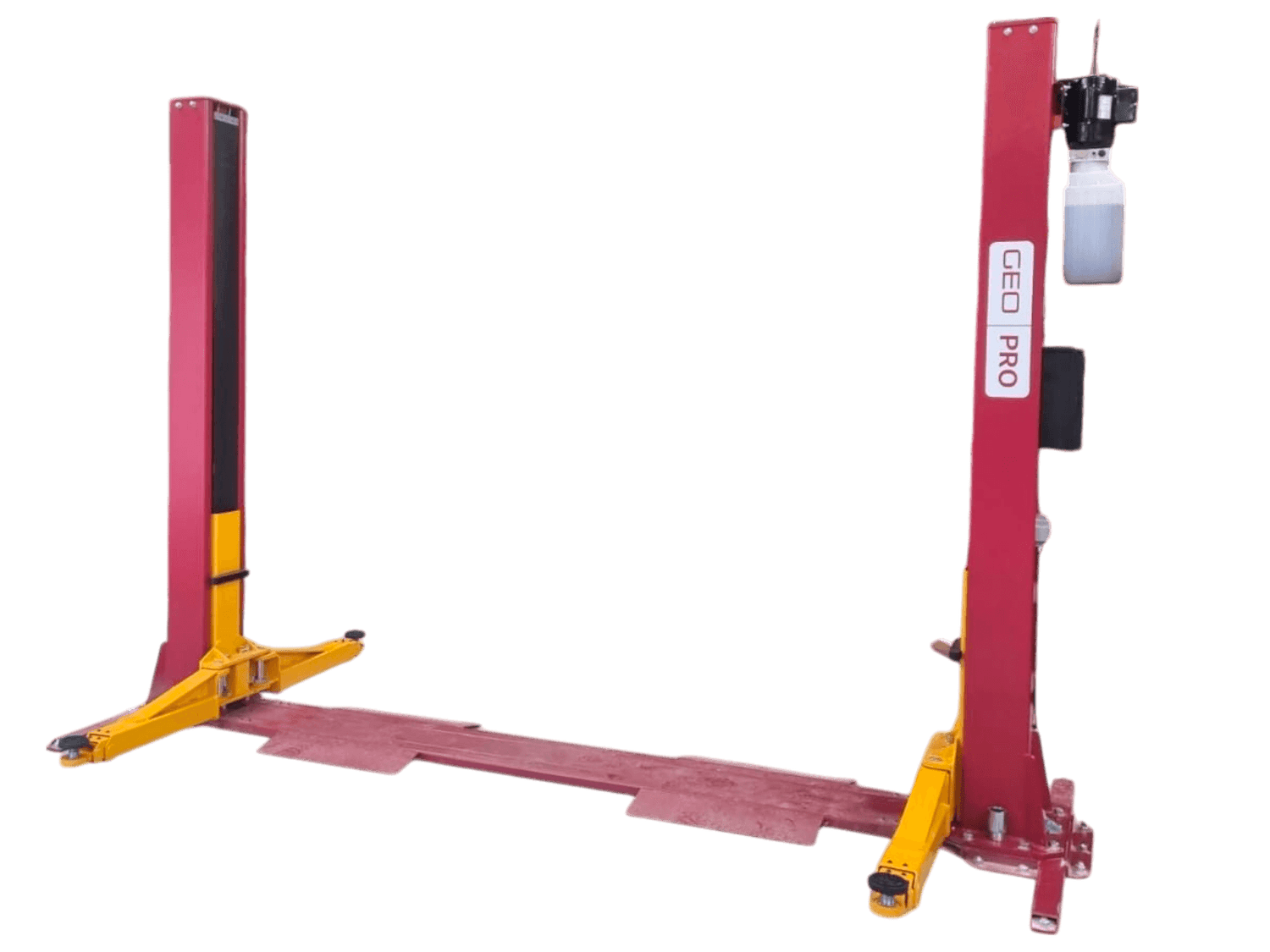

Garage Equipment 5.5 Tonne Electronic Lock Release H Frame 2 Post Lift SKU GEO203

Garage Equipment 5.5 Tonne Electronic Lock Release H Frame 2 Post Lift SKU GEO203

If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.

This high quality 5.5 Tonne Electronic Lock Release H Frame 2 Post Lift from the GEO range of garage equipment. The GEO Five and a half Tonne Electronic Release full base two post lift carries a UK issued Ce certificate which conforms to all current UK and EU safety regulations.

When installing a 5.5 tonne 2 post lift you will require a concrete depth of eight inches or more. If you have slightly less than the required depth then H frame version of our 5.5 tonne electronic 2 post lift is the ideal solution as it distributes the load more effectively often removing the need to dig out the floor and start over.

The GEO H frame electronic lock release 2 Post Lift comes equipped with the following features as standard,

This 2 Post Lift has a monster 5.5 Tonne lifting capacity making it highly capable of achieving even the most gargantuan of lifting tasks.

The 5.5 Tonne H Frame Electronic Lock Release 2 Post Lift comes equipped with the following features as standard,

Benefits

• Install without a deeper concrete pour - H frame distributes load, often avoiding the need to dig out the floor
• Lift the heaviest vehicles in the bay - 5.5 tonne twin hydraulic capacity
• Reach jacking points on any vehicle - triple telescopic arms with adjustable pads
• Work safely if a hydraulic hose fails - built-in hydraulic safety system and safety cut-out breakers

Advantages

• Runs on a standard single-phase supply, so no dedicated three-phase circuit is required.

Features

• 5.5 Tonne twin hydraulic 2 post lift.
• Full based H frame for increased stability.
• Triple telescopic arms for full access to jacking points.
• Button operation for decent fully electric lowering system 24 V circuit.
• Synchronising cables as standard.
• Top limit and safety switches fitted.
• Fully CE certified 2 post lift.
• High quality powder coated finish
• Heavy duty hydraulic pump unit.
• Quality 24v control box.
• Low voltage operating system.
• Hydraulic safety system in case of hydraulic hose burst.
• Safety cut out breakers internal to control box.
• Heavy duty arm configuration.
• Post covers for health and safety.
• Heavy duty arm locking mechanisms.
• Adjustable lifting pads.
• Height extensions as standard
• Electronic safety release system.
• 3 stage arms and double height screw pads.
• All Two Post Lifts come with a full two year parts warranty.
• Maximum Lifting Capacity: 5500kg
• Maximum Lifting Height: 1985mm
• Minimum Lifting Height: 125mm
• Drive Through Width: 3042mm
• Overall Height: 3000mm
• Overall Width: 3850mm
• Arm Length: 740-1450mm
• Lifting Time: 55Seconds
• Single Phase: 240V/50Hz
• 3 Phase: 400V/50Hz
• GEO B5500es H Datasheet
