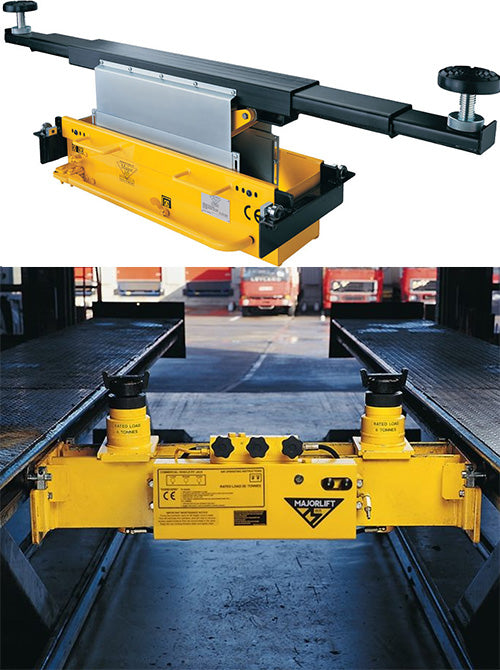

Majorlift Air Hydraulic Jacking Beam Wide Frame

Majorlift Air Hydraulic Jacking Beam Wide Frame, Shipping estimate required

If you run workshops carrying out routine lifting, pressing, and suspension work, this is built for the kind of work you do day to day. In practice, you use it alongside your existing lift or bench to support, press, or compress a component safely while you work on it.

A range of top quality, British built jacking beams from 2 tonne to 6 tonne capacity.

Features of 2.0T and 2.8T models

• Exceeds the minimum DVSA requirements for a jacking beam as per requirements for authorisation of an MOT bay and DVSA special notice 04/25.
• Industry leading top beam that extends to an astonishing 1875mm to centre of pads, while still retracting to a mere 790mm
• Narrow frame available for narrow pits and lifts

Features of all models

• Specially low jacking position to cater for low floored vehicles such as sports cars
• Approved for MOT testing, class 4 and 7
• Safety features include hose burst valve, pressure release valve prevents overloading, finger guard complies with European machinery directive and CE marking
• Quietest ever Majorlift pump built into every air jack. Significantly improves performance and reduces noise as well as further improving operational reliability
• Three position mechanical lock engages automatically creating safe working platform when carrying out extensive wheel overhauls
• Incorporates all our standard safety features
• Supplied as standard with roller flat or roller hook support arms. Special arms incur supplemental charge POA

Suitable for all makes of service lifts.

Benefits

• Certify for Class 4 MOT testing - built to exceed DVSA requirements out of the box
• Keep high-volume bays moving - fast, controlled air/hydraulic lifts remove manual-pump delays
• Fit narrow pits and lift bays - retracts to 790mm despite its wide 1875mm reach
• No extra procurement before first use - ships complete with extension sets and rubber cushions

Advantages

• Fully compliant with DVSA special notice 04/25 for MOT bay authorisation, giving workshops a clear path to Class 4 certification.
• Certified for use in Class 4 MOT testing bays, removing compliance risk from your workshop setup.
• Significantly reduced noise output improves workshop comfort and operational reliability across long shifts.
• Fast, effortless lifting reduces technician fatigue and increases throughput in high-volume bays.
• Covers virtually any vehicle class in a single beam, compact enough for narrow pits and tight lift configurations.

Features

• Exceeds DVSA Minimum Requirements
• Class 4 MOT Approved
• Quietest Majorlift Air Pump
• Air/Hydraulic Operation
• 1875mm Extension / 790mm Retracted
• Low Jacking Position
• Three-Position Mechanical Lock
• Full Safety Compliance
• Height-Adjustable Mounting Bracket
• Roller Support Arms Included
• Part Number: MPJ2.0EW
• Rated Capacity: 2T
• Operation: Air/Hydraulic

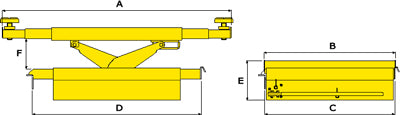

• A - Width When Extended: 1875mm
• B - Width When Retracted: 790mm
• C - Min. Width Over Support Arms: 775mm
• D - Max. Width Over Support Arms: 1125mm
• E - Closed Height: 212mm
• F - Total Lift: 205mm
• Weight with Top Beam: 87kg
• MOT Approval: Class 4
