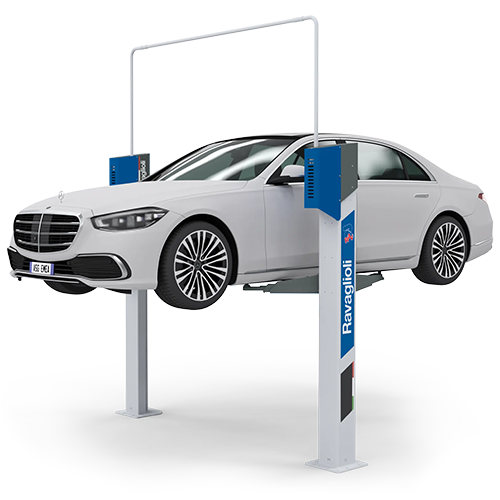

Ravaglioli Baseless 2 Post Lift KPX35
Ravaglioli Baseless 2 Post Lift
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.
Benefits
- Get full access underneath the vehicle - baseless design removes floor-level obstacles
- Trust it to last - Legend Series tested for 20,000 cycles with hassle-free maintenance
Advantages
- Eliminating floor-level obstacles for full undercarriage access.
Features
- 3500KG Lifting Capacity
- Baseless design
- Electro mechanical operation
- 3 phase
- Lifting time: 42sec
- Overall width: 3350mm
- Minimum lifting height: 100mm
- Lifting capacity: 3500kg
- Lifting time: 42 seconds
- Minimum height: 100mm
- Maximum lifting height: 2020mm
- Min ceiling height: 4150mm
- Front minimum / maximum arm length: 564mm / 1160mm
- Rear minimum / maximum arm length: 922mm / 1460mm
- Motor size: 2.6kw x 2
- Power Requirements: 400V - 50 Hz - 25 A
- Operation: Electro-mechanical
