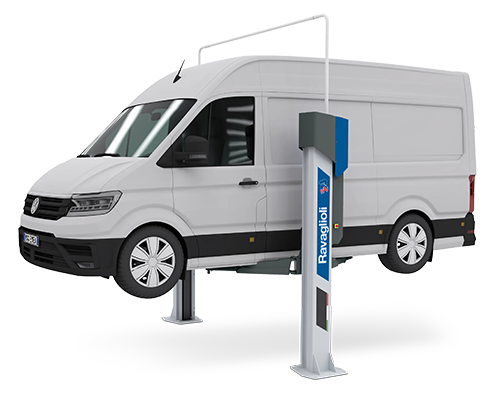

Ravaglioli Baseless 2 Post Lift

A high quality European designed and built electro mechanical baseless 2 post lift with superior features.

Ravaglioli’s Legend Series: a blend of modern design and durability, tested for 20,000 cycles. Future-proof with TEq-Link connectivity, these 2-post lifts offer smart installation, ergonomic controls, and premium components. With a focus on effici...

Features

5500KG Lifting Capacity
Baseless design - eliminating floor-level obstacles for full undercarriage access
Electro mechanical operation
3 phase
2 x 3 stage and 2 x 4 stage arms
Lifting time: 58sec
Overall width: 3824mm
Minimum lifting height: 114mm

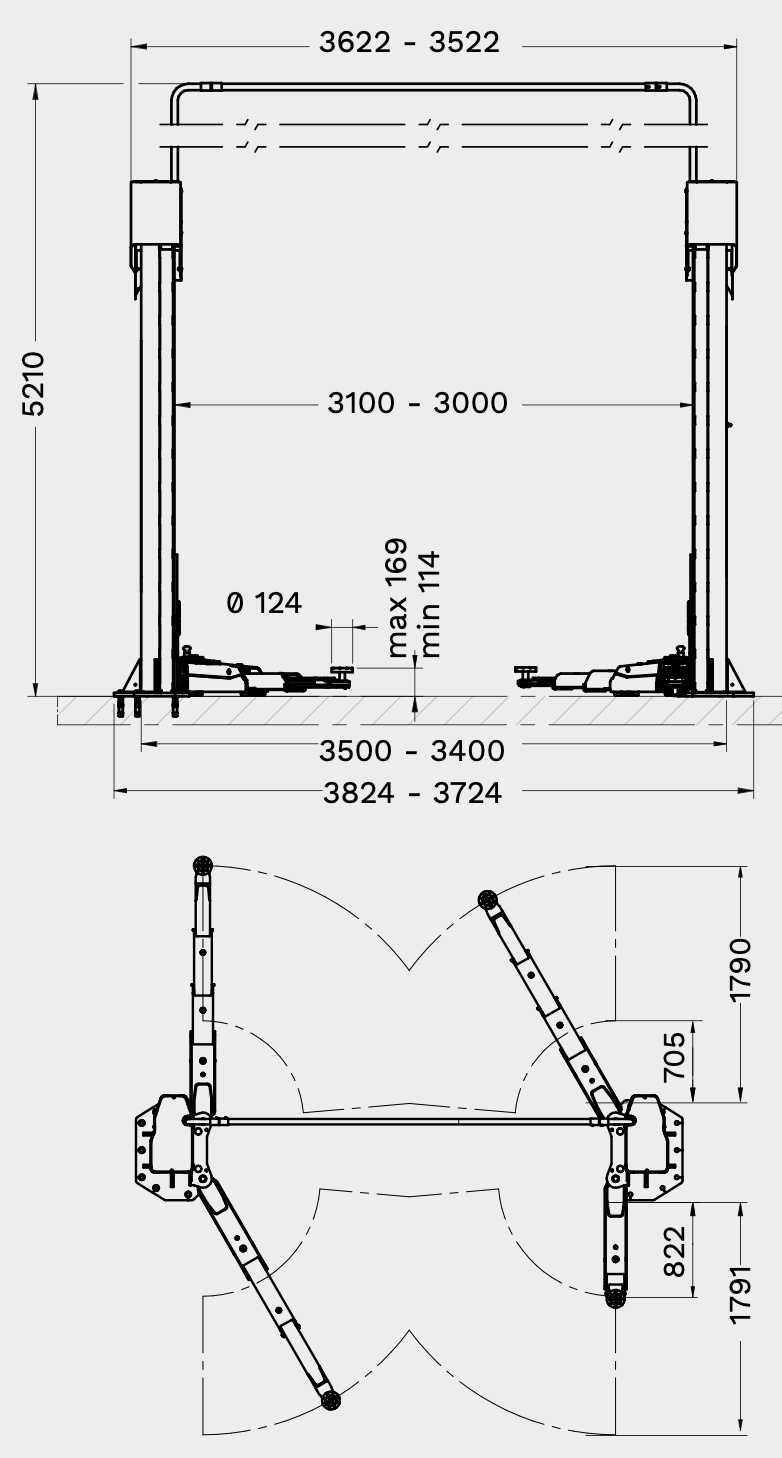

Specifications

Lifting capacity: 5500kg
Lifting time: 58 seconds
Minimum height: 114mm
Maximum lifting height: 2052mm
Min ceiling height: 5300mm
Front minimum / maximum arm length: 705mm / 1790mm
Rear minimum / maximum arm length: 822mm / 1791mm
Motor size: 3.5kw x 2
Power Requirements: 400V - 50 Hz - 25 A
Operation: Electro-mechanical
