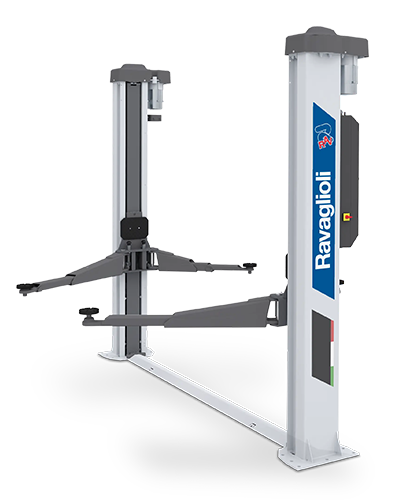

Ravaglioli H-Frame 2 Post Lift KPS32
Ravaglioli H-Frame 2 Post Lift
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.
Benefits
- Install on floors that aren't perfectly level - H-frame base copes where a standard base can't
- Trust the engineering - part of Ravaglioli's Legend Series
Advantages
- The specifications below are matched to typical workshop duty cycles and installation requirements.
Features
- 3200KG Lifting Capacity
- Semi-base design
- Electro mechanical operation
- 3 phase
- Lifting time: 42sec
- Overall width: 3336mm
- Minimum lifting height: 110mm
- Lifting capacity: 3200kg
- Lifting time: 42 seconds
- Minimum height: 110mm
- Maximum lifting height: 1883mm
- Min ceiling height: 4050mm
- Front minimum / maximum arm length: 541mm / 950mm
- Rear minimum / maximum arm length: 815mm / 1215mm
- Power Requirements: 400V - 50 Hz - 25 A
- Operation: Electro-mechanical
