SIP 100 TON Shop Floor Press w/ Pneumatic Operation 03686
Serious pressing force for bearings, bushes and straightening.

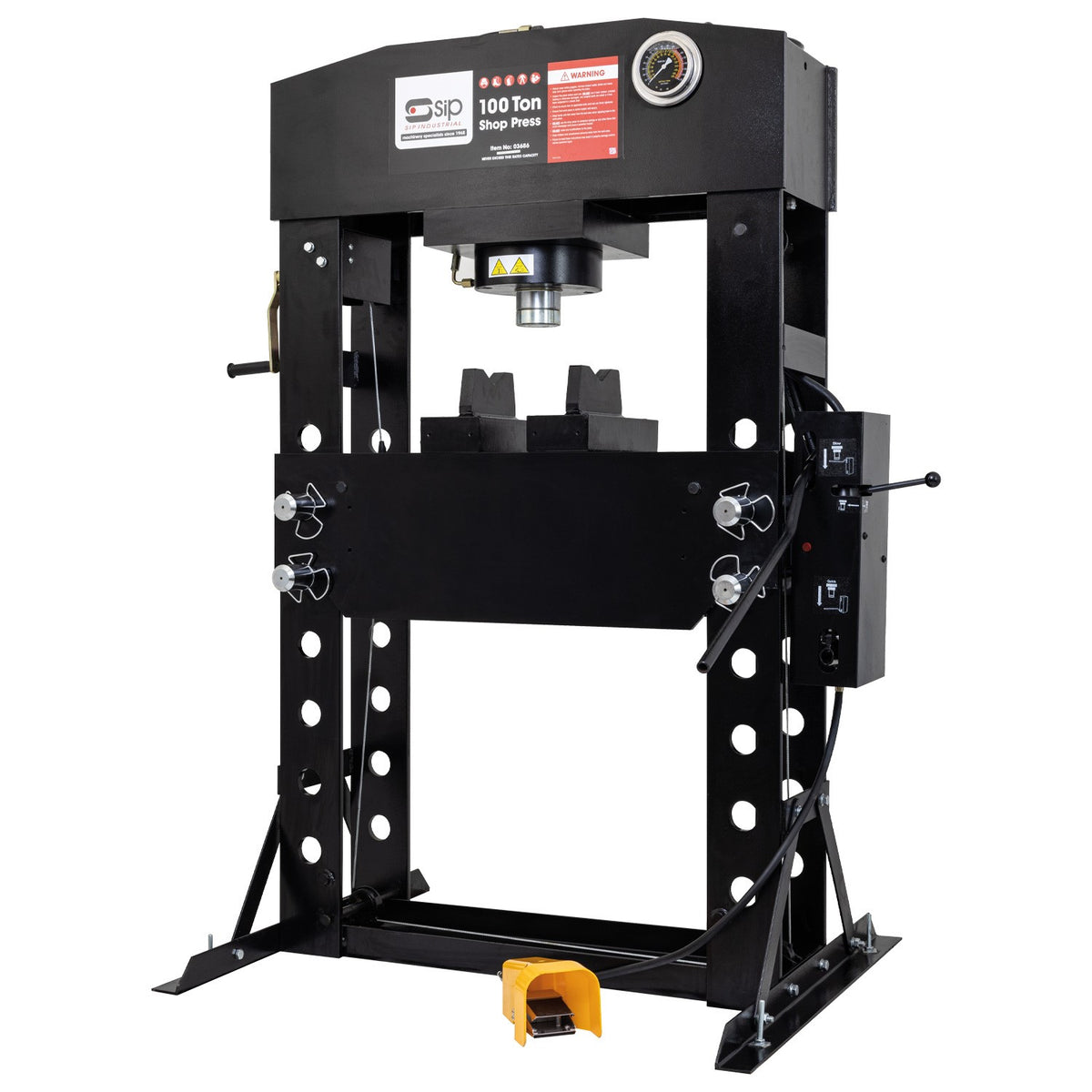

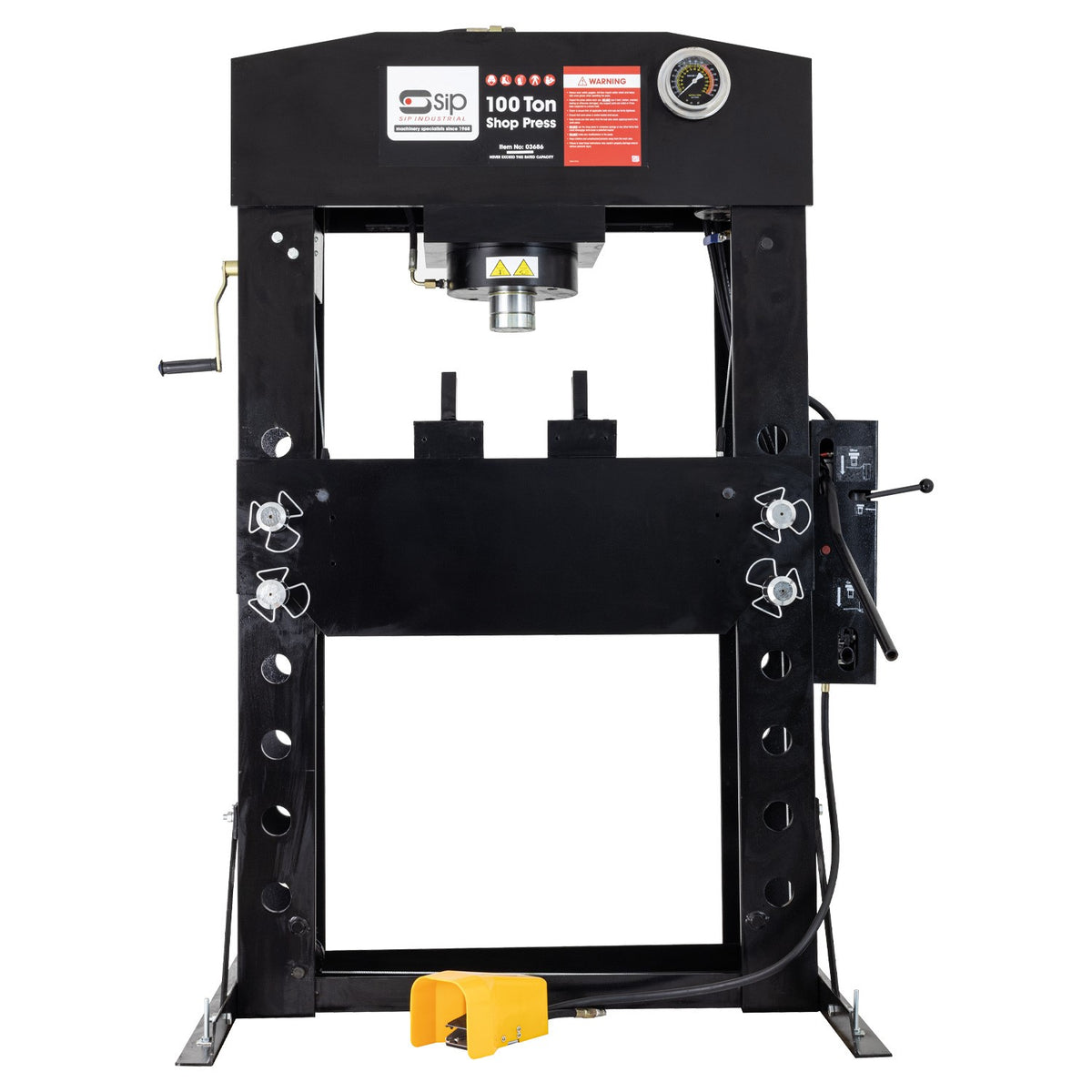

The SIP 100 TON Shop Floor Press is a 100 TON floor press with pneumatic operation, a 93mm to 993mm working range and a 300mm ram stroke.
Who it's for
- Commercial vehicle and HGV workshops
- Agricultural and plant engineers
- General repair garages
- Fabrication shops
Why you'll love it
- Press out stubborn bearings, wrist pins, universal joints and pulleys
- Straighten, bend and bond parts in one station
- Heavy steel frame stays rigid under load
What sets it apart
- Fully adjustable workbed height

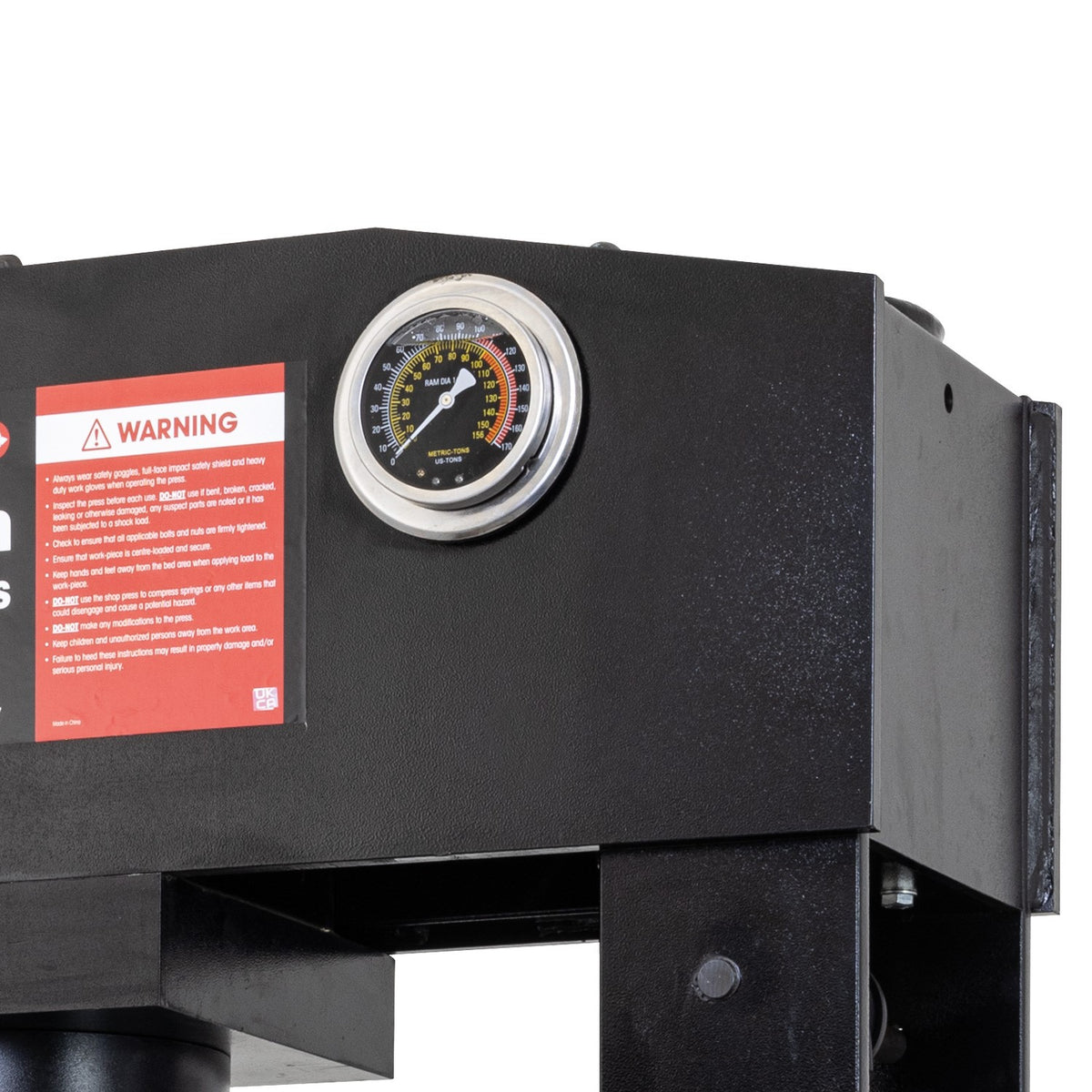

- Glycerine-filled gauge for clear load reading
- Bed width: 787mm
How you'll use it
Set the bed height, place the job on press plates, connect workshop air and apply pressure while watching the gauge.
Manufacturer warranty
Your SIP 100 TON Shop Floor Press comes with the SIP 2-Year Standard Silver Warranty. Register your purchase with SIP within 30 days to activate the SIP warranty. Accessories and consumables are excluded. Bought from Advantage Empire, an authorised SIP dealer, it is genuine UK stock backed by SIP’s UK service centre and engineers across the UK and Ireland.
Key features

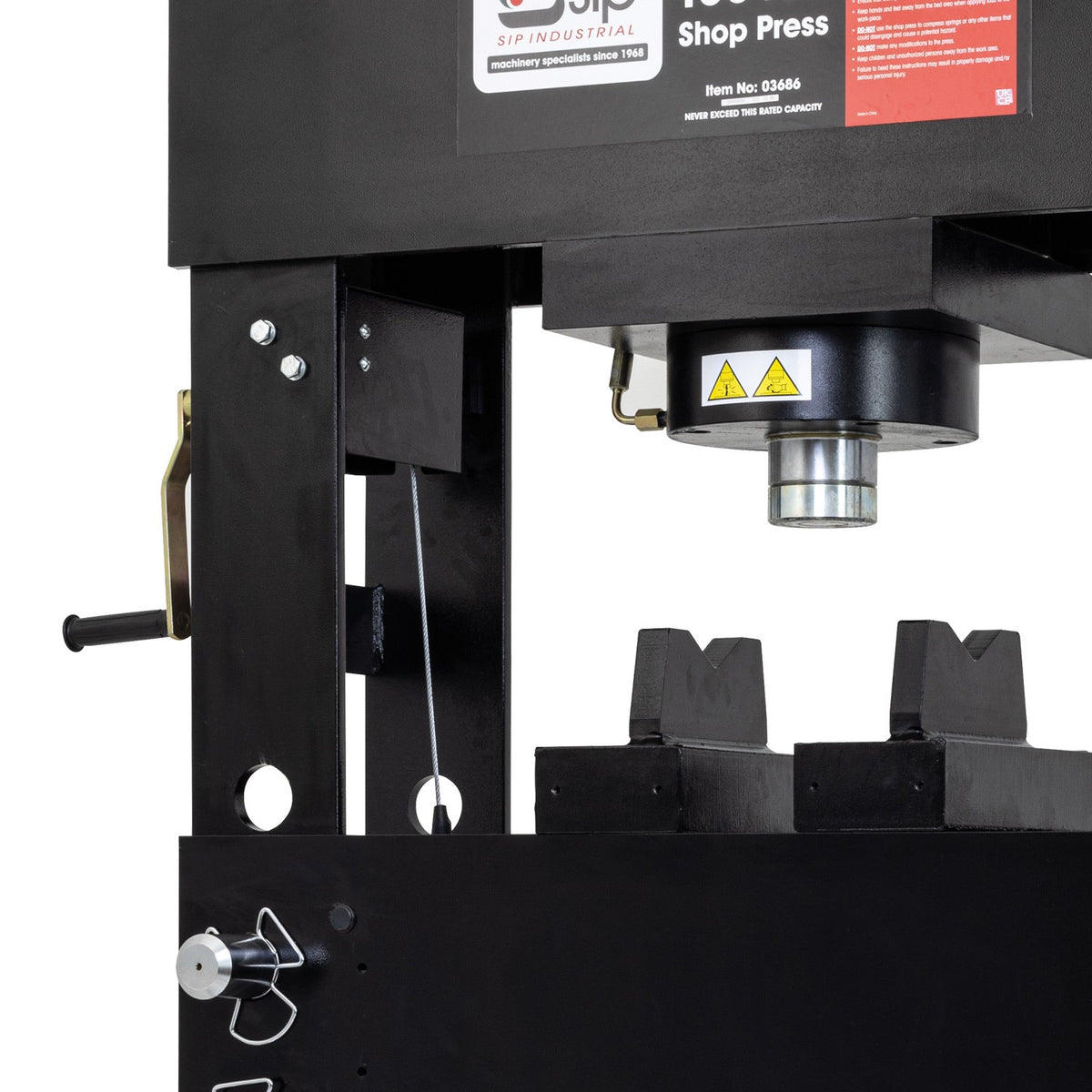

- 93mm to 993mm work range and a 300mm ram stroke
- Ideal for bending, bonding, straightening applications
- Bearing, wrist pin, universal joint or pulley removal
- Fully adjustable workbed for improved versatility
- Heavy-duty steel frame for increased durability
- Integrated Glycerine-filled manometer
Technical specification
- Press Capacity: 100 TON
- Press Type: FLOOR
- Press Operation: Pneumatic
- Working Range: 93mm to 993mm
- Max. Air Pressure: 108psi (7.5bar) to 123psi (8.5bar)
- Air Inlet: 1/4" NPT
- Ram Stroke: 300mm
- Bed Width: 787mm
- Net Weight: 662.00kg
- Product Dimensions: 1850(H) x 1000(W) x 1250mm(D)
- SKU: 03686
