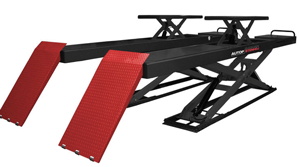

Stenhoj Magix 45 Series Scissor Lift
Stenhoj Magix 45 Scissor Lift, Four Variants requires custom shipping quote
The AUTOPSTENHOJ MagiX 45 Series of scissor lifts compromises of four different models with three choices of platform lengths. These lifts have an impressive lifting capacity of 4.5 tonnes and the integral/secondary lifting versions are capable of up to 4 tonnes .
As with all other AUTOPSTENHOJ scissor lifts, these lifts are electro-hydraulically operated and are fitted with a clever safety device should a pipe burst. In addition all models include LED lighting, 1000mm drive on ramps (suitable for surface mounted applications), end stops, hose covers and expansion bolts.
ALL AUTOPSTENHOJ lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.
Features
- Double master / slave system
- Control stand with integrated pump unit and alarm signal
- Electronic synchronization
- Emergency lowering valve
- Sturdy scissor construction
- No mechanical connection between scissor sections
- Optimum access to vehicle
- Low minimum height
- Variable fitting width
WL versions for wheel alignment also feature a special locking device (parking mechanism) for accurate wheel alignment.
The four models to choose from are as follows :
- S model – Standard flat platforms (no integral/secondary lifting)
- S Combi model – Standard flat platforms with integral/secondary lifting
- WL model – Wheel alignment model with rear slip plates and front recesses for turn plates (turn plates excluded) without integral/secondary lifting
- WL combi model – Wheel alignment model with rear slip plates and front recesses for turn plates (turn plates excluded) with integral/secondary lifting
- 4500mm, 4800mm and 5200mm platforms available

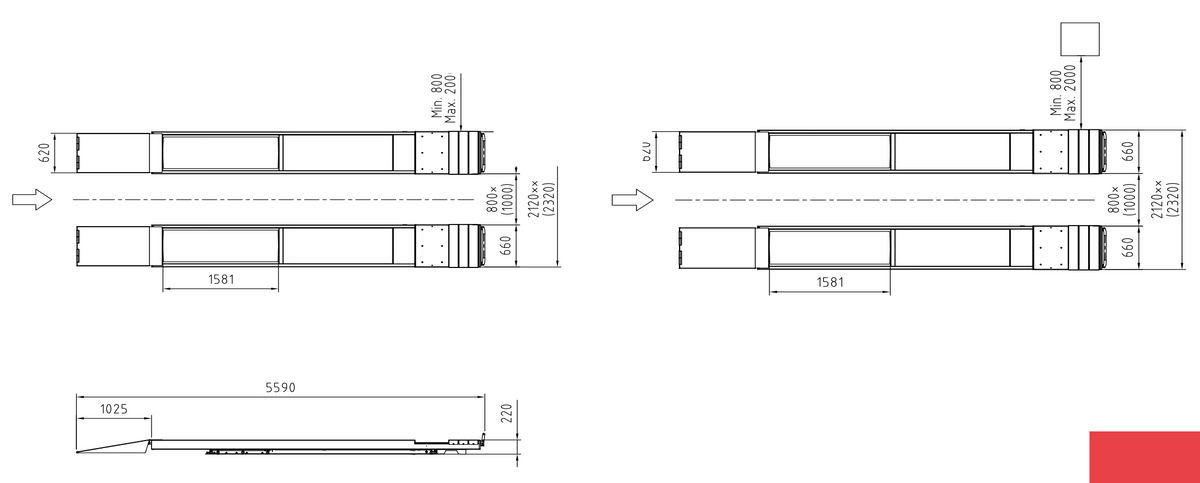

Technical Specification
| S | S Combi | WL | WL Combi | |
|---|---|---|---|---|
| Lifting Capacity | 4500kg | 4500kg | 4500kg | 4500kg |
| Secondary Lift | N/A | 4000kg | N/A | 4000kg |
| Lifting/Lowering Time | 50 seconds | 50 seconds | 50 seconds | 50 seconds |
| Platform Height | 220mm | 220mm | 220mm | 220mm |
| Maximum Height | 1900mm | 1900mm + 400mm | 1900mm | 1900mm +400mm |
| Platform Length | 4500mm or 4800mm or 5200mm | 4500mm or 4800mm or 5200mm | 4500mm or 4800mm or 5200mm | 4500mm or 4800mm or 5200mm |
| Platform Width | 660mm | 660mm | 660mm | 660mm |
| Jacking beam rails | Yes | No | Yes | No |
| Overall width of lift | 2120mm – 2320mm | 2120mm – 2320mm | 2120mm – 2320mm | 2120mm – 2320mm |
| Motor Size | 3kw | 4kw | 3kw | 4kw |
| Power Required | 3 phase (16amp isolator required) | 3 phase (16amp isolator required) | 3 phase (16amp isolator required) | 3 phase (16amp isolator required) |
| Operation | Electro-hydraulic | Electro-hydraulic | Electro-hydraulic | Electro-hydraulic |
Benefits
- Choose the exact platform length for your bay - 4500mm, 4800mm or 5200mm options
- Keep working if a pipe fails - emergency lowering valve protects the vehicle and technician
- See what you're doing in every corner - integrated LED lighting on every model
- Get to work immediately - drive-on ramps, end stops, hose covers and expansion bolts included
- Trust the synchronisation - electronic sync with no mechanical connection between scissor sections to fail
Features
- Double master / slave system
- Control stand with integrated pump unit and alarm signal
- Electronic synchronization
- Emergency lowering valve
- Sturdy scissor construction
- No mechanical connection between scissor sections
- Optimum access to vehicle
- Low minimum height
- Variable fitting width
- S model Standard flat platforms (no integral/secondary lifting)
- Lifting Capacity: 4500kg
- Secondary Lift: N/A (S model)
- Lifting/Lowering Time: 50 seconds
- Platform Height: 220mm
- Maximum Height: 1900mm
- Platform Length: 4500mm, 4800mm or 5200mm
- Platform Width: 660mm
- Jacking Beam Rails: Yes
- Overall Width of Lift: 2120mm, 2320mm
