Stenhoj Magnat 40, 4T 2 Post Baseless Lift Asymmetric
Manufacturer's Warranty Included.
Stenhoj Magnat 40, 4T 2 Post Baseless Lift Asymmetric is backordered and will ship as soon as it is back in stock.
Having moved to a new location and setting up a ltd with all the chaos that involves, buying the needed equipment to service cars was difficult. Advantage Empire worked hard to get me up and running to stay profitable thanks guys
GreysonTrustpilot
Couldn't load pickup availability
Delivery, Shipping & Install
Delivery, Shipping & Install
Standard Shipping time: 3 to 5 business days
Order Handling time: 1 to 2 business days
Most orders will be shipped out within 1 business day except weekends and holidays. See our Shipping Policy for full details.
For Installation & Engineering Services, please call 0116 4810180.
Returning An Order
Returning An Order
We want you to be completely satisfied with your purchase. If you’re not, we’re here to help. Returns are accepted within 30 days of delivery. For change-of-mind returns you pay return shipping and a 15% restocking fee may be deducted - faulty, damaged or incorrect items are always refunded in full.
See our Returns & Refunds Policy for full details.
Stenhoj Magnat 40, 4T 2 Post Baseless Lift Asymmetric
AutopStenhoj Stenhoj Magnat 40, 4T 2 Post Baseless Lift Asymmetric, Shipping quote required

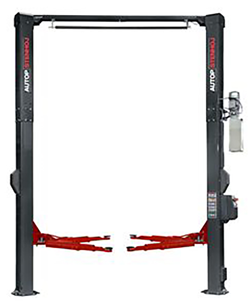

The AUTOPSTENHOJ Magnat 40 Electro-hydraulically operated vehicle lift has a lifting capacity of 4.0 tonnes. This two post lift, which is baseless. This lift is ideal for most makes and models of cars!
ALL AUTOPSTENHOJ two post lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.

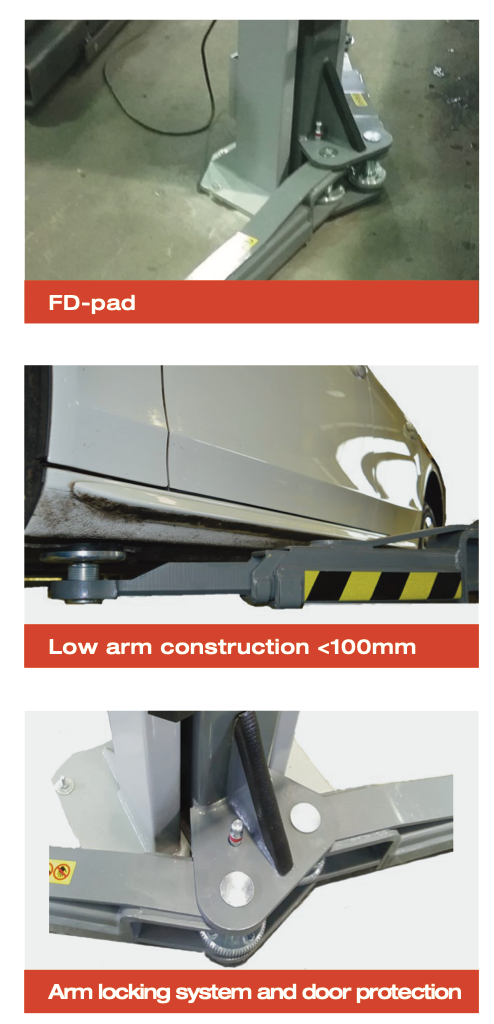

- Asymmetric post installation for ideal door-opening angle
- Very stable bent posts
- Without base frame
- One hydraulic unit
- Carriage with slide blocks
- Pushbutton control unit with alarm signal
- Adjustable top stop
- Mechanic synchronization
- Safety ratchet system
- Double telescopic front and rear arms, as standard
- Possibility of parallel parking of arms
- Automatic arm locking system
- Low minimum height
AUTOPSTENHOJ Lifts are manufactured in Denmark

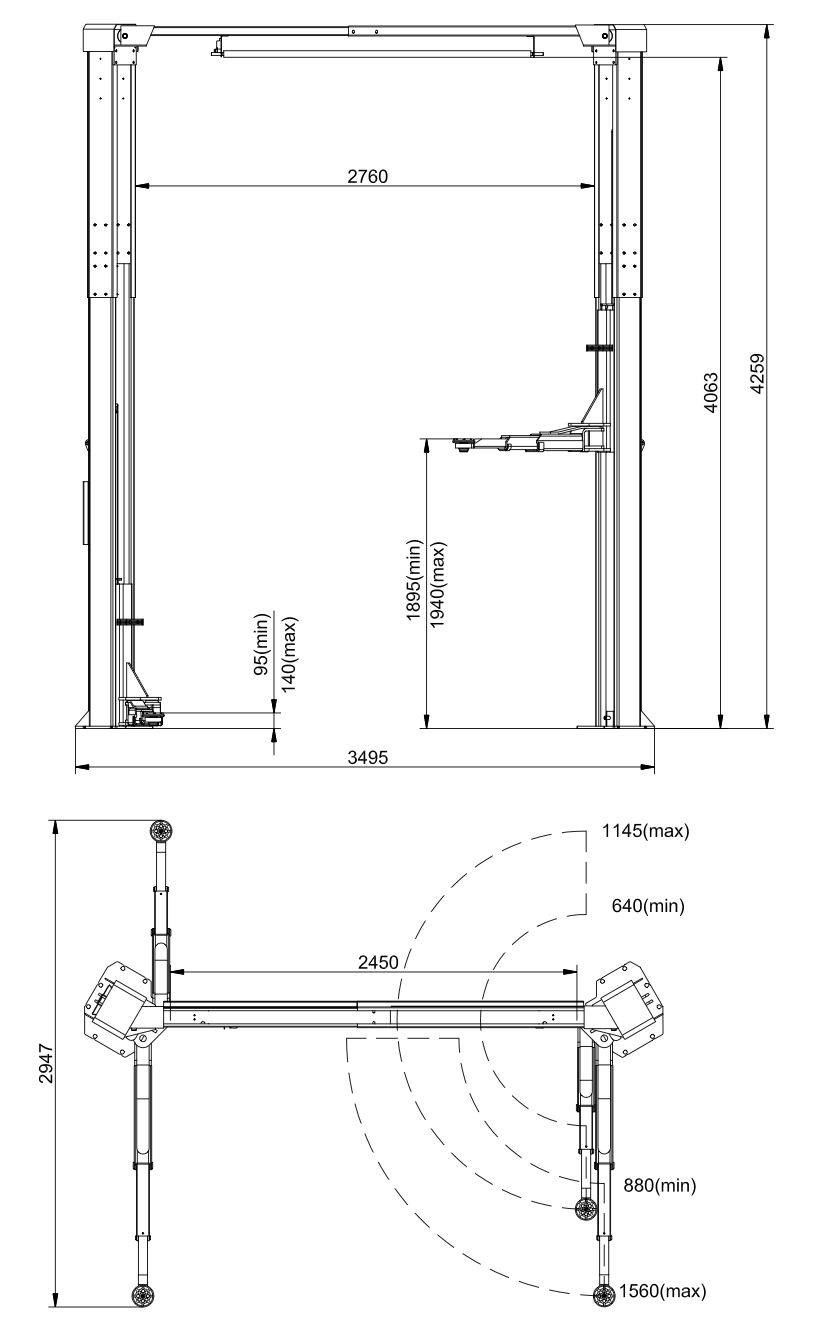

Technical Specification
| Lifting capacity | 4000kg |
| Lifting / lowering time | 30 seconds / 30 seconds |
| Minimum height | 95mm |
| Maximum height | 1,800mm |
| Front minimum / maximum arm length | F Uni: 640 – 1,145 mm |
| Rear minimum / maximum arm length | F Uni: 880 – 1,560 mm |
| Motor size | 2.2kW x 1 |
| Power Requirements | 3 phase – 16a Isolator Required |
| Operation | Electro-hydraulic |
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.
Benefits

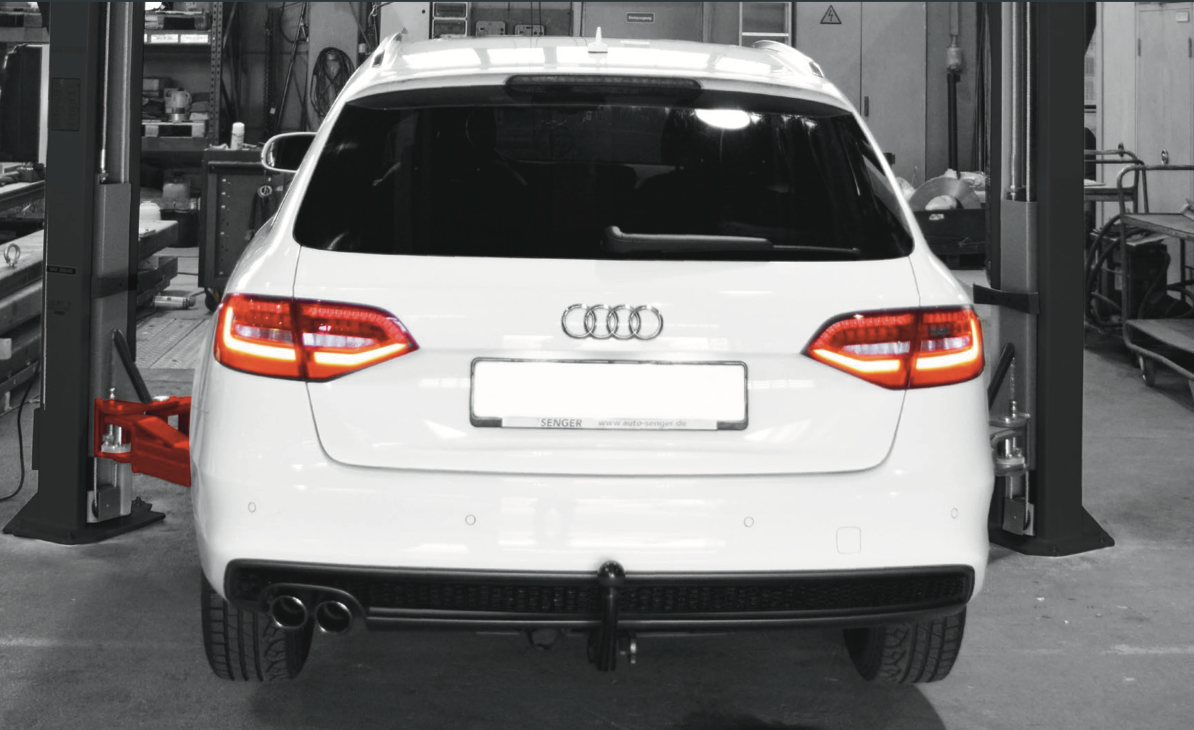

- Open car doors fully at any lift height - asymmetric post installation is designed around the door-opening angle
- No base frame to trip over or install around - baseless design keeps the floor clear
- Lift and lower in half a minute - 30 second lift/lower cycle keeps bay throughput moving
- Work under a securely locked platform - safety ratchet system backs up the hydraulics
- Fit almost any car without extra adapters - double telescopic front and rear arms as standard
Advantages
- The specifications below are matched to typical workshop duty cycles and installation requirements.
Features
- Asymmetric post installation for ideal door-opening angle
- Very stable bent posts
- Without base frame
- One hydraulic unit
- Carriage with slide blocks
- Pushbutton control unit with alarm signal
- Adjustable top stop
- Mechanic synchronization
- Safety ratchet system
- Double telescopic front and rear arms, as standard
- Lifting capacity: 4000kg
- Lifting / lowering time: 30 seconds / 30 seconds
- Minimum height: 95mm
- Maximum height: 1,800mm
- Front minimum / maximum arm length: F Uni: 640, 1,145 mm
- Rear minimum / maximum arm length: F Uni: 880, 1,560 mm
- Motor size: 2.2kW x 1
- Power Requirements: 3 phase, 16a Isolator Required
- Operation: Electro-hydraulic
