Stenhoj Major 4030 Wheel Alignment Four Post Lift Electro-Hydraulic...
Stenhoj Major 4030 Wheel Alignment Four Post Lift Electro-Hydraulically Operated, Custom Estimate Required

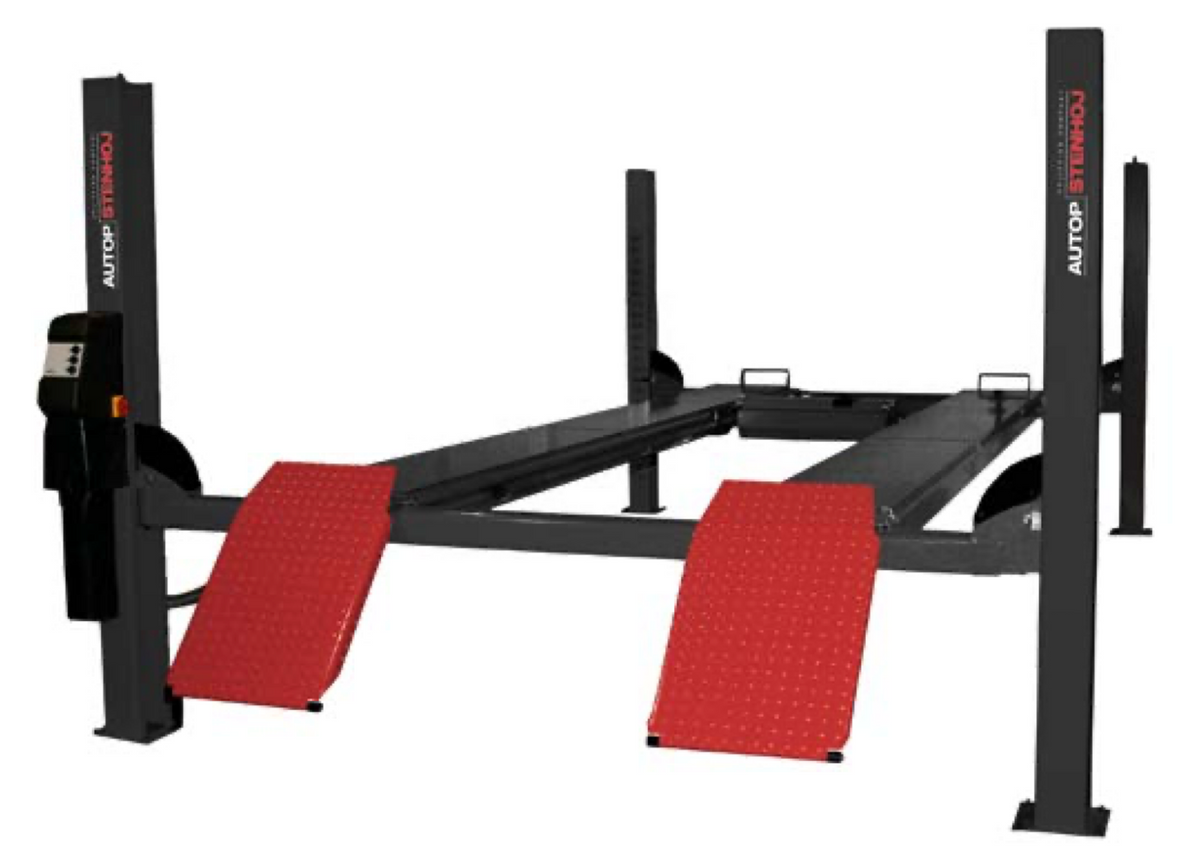

The AUTOPSTENHOJ Major 4030 Series of Wheel Alignment Four Post Lifts are available in two different models (009180 / 009200) with different platform lengths and with lifting capacities of 4 tonnes. As with all other Major Lifts, these lifts are electro-hydraulically operated and are fitted with an eccentric brake and an obstruction system with alarm.
The platform on the right hand side of the lift is also adjustable for extra wide/narrow vehicles.
WL Models come with front recesses for turn plates and rear slip plates – ideal for wheel alignment
ALL AUTOPSTENHOJ four post lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.
AUTOPSTENHOJ Lifts are manufactured in Denmark

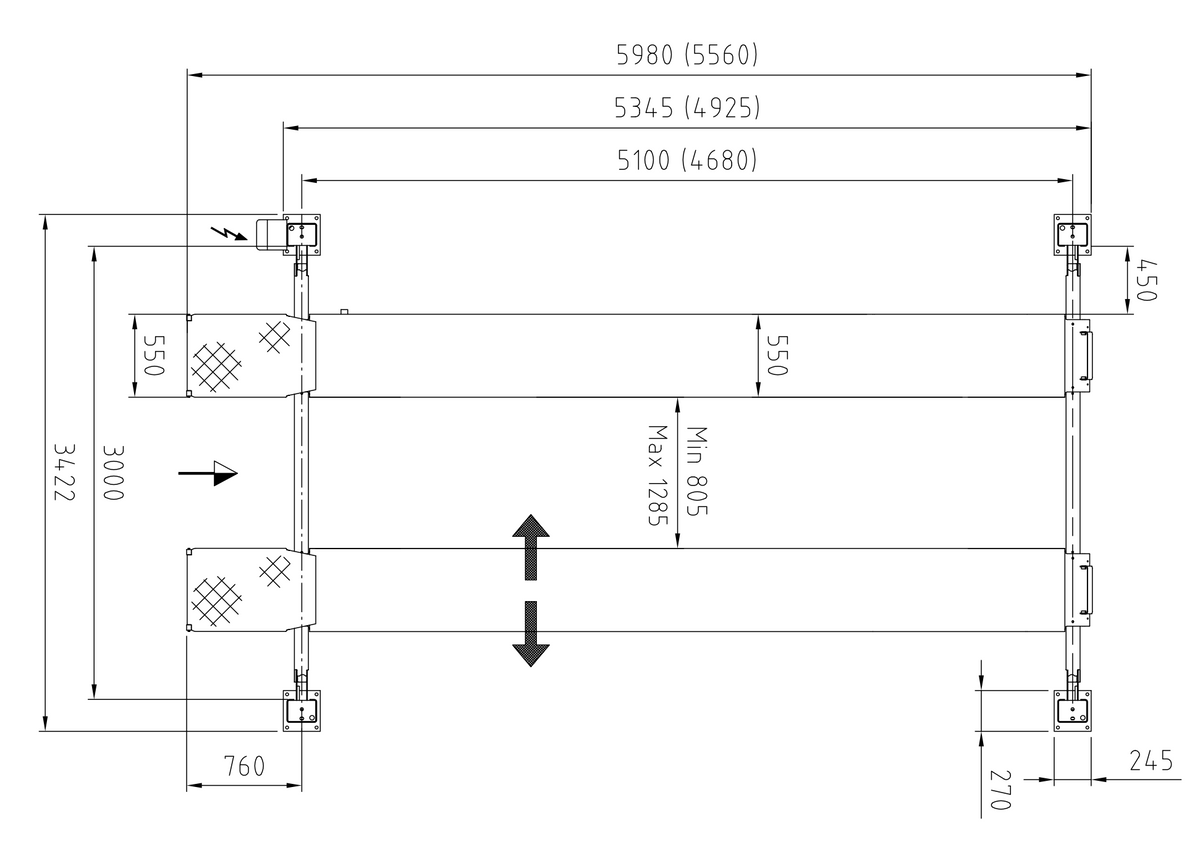

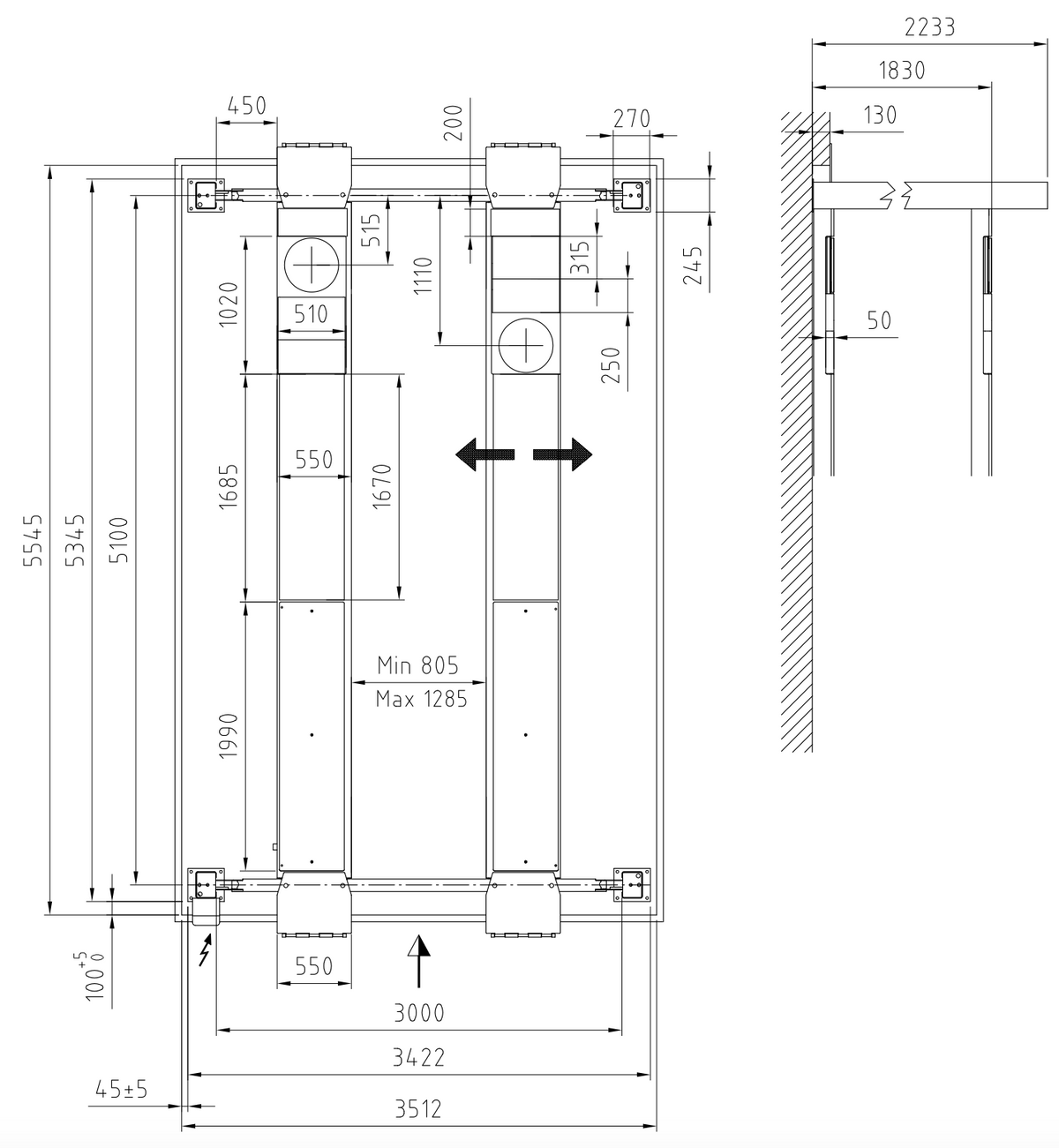

Technical Specification
| Lifting capacity | 4000kg |
| Lifting/ lowering time | 24 seconds / 26 seconds |
| Minimum height S / WL | 140mm / 160mm |
| Maximum height | 1810mm |
| Platform length 4030 – 47S/WL / 4030 – 51S/WL | 4680mm / 5100mm |
| Platform width | 550mm |
| Gap between platforms | Adjustable – 805mm – 1285mm |
| Motor size | 3 kW |
| Power Requirements | 3 phase – 16a Isolator Required |
| Operation | Electro-hydraulic |
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.
Benefits
- Add wheel alignment to your service bay - WL models include front turn plate recesses and rear slip plates
- Choose the platform length that fits your bay - 4680mm or 5100mm options
- Work safely with an obstruction underneath - eccentric brake with alarm
Advantages
- Front turn plate recesses and rear slip plates.
- 4030-47 (4680mm) or 4030-51 (5100mm).
- Obstruction system halts the lift automatically.
Features
- Wheel Alignment Ready (WL)
- Two Platform Length Options
- Eccentric Brake with Alarm
- Lifting capacity: 4000kg
- Lifting/lowering time: 24 seconds / 26 seconds
- Minimum height S / WL: 140mm / 160mm
- Maximum height: 1810mm
- Platform length (4030-47S/WL / 4030-51S/WL): 4680mm / 5100mm
- Platform width: 550mm
- Gap between platforms: Adjustable 805mm - 1285mm
- Motor size: 3 kW
- Power Requirements: 3 phase - 16a Isolator Required
- Operation: Electro-hydraulic
