Stenhoj Major 5.2T Capacity 5230 4 Post Lift
Manufacturer's Warranty Included.
Stenhoj Major 5.2T Capacity 5230 4 Post Lift - STENMAJ523051WL is backordered and will ship as soon as it is back in stock.
Having moved to a new location and setting up a ltd with all the chaos that involves, buying the needed equipment to service cars was difficult. Advantage Empire worked hard to get me up and running to stay profitable thanks guys
GreysonTrustpilot
Couldn't load pickup availability
Delivery, Shipping & Install
Delivery, Shipping & Install
Standard Shipping time: 3 to 5 business days
Order Handling time: 1 to 2 business days
Most orders will be shipped out within 1 business day except weekends and holidays. See our Shipping Policy for full details.
For Installation & Engineering Services, please call 0116 4810180.
Returning An Order
Returning An Order
We want you to be completely satisfied with your purchase. If you’re not, we’re here to help. Returns are accepted within 30 days of delivery. For change-of-mind returns you pay return shipping and a 15% restocking fee may be deducted - faulty, damaged or incorrect items are always refunded in full.
See our Returns & Refunds Policy for full details.

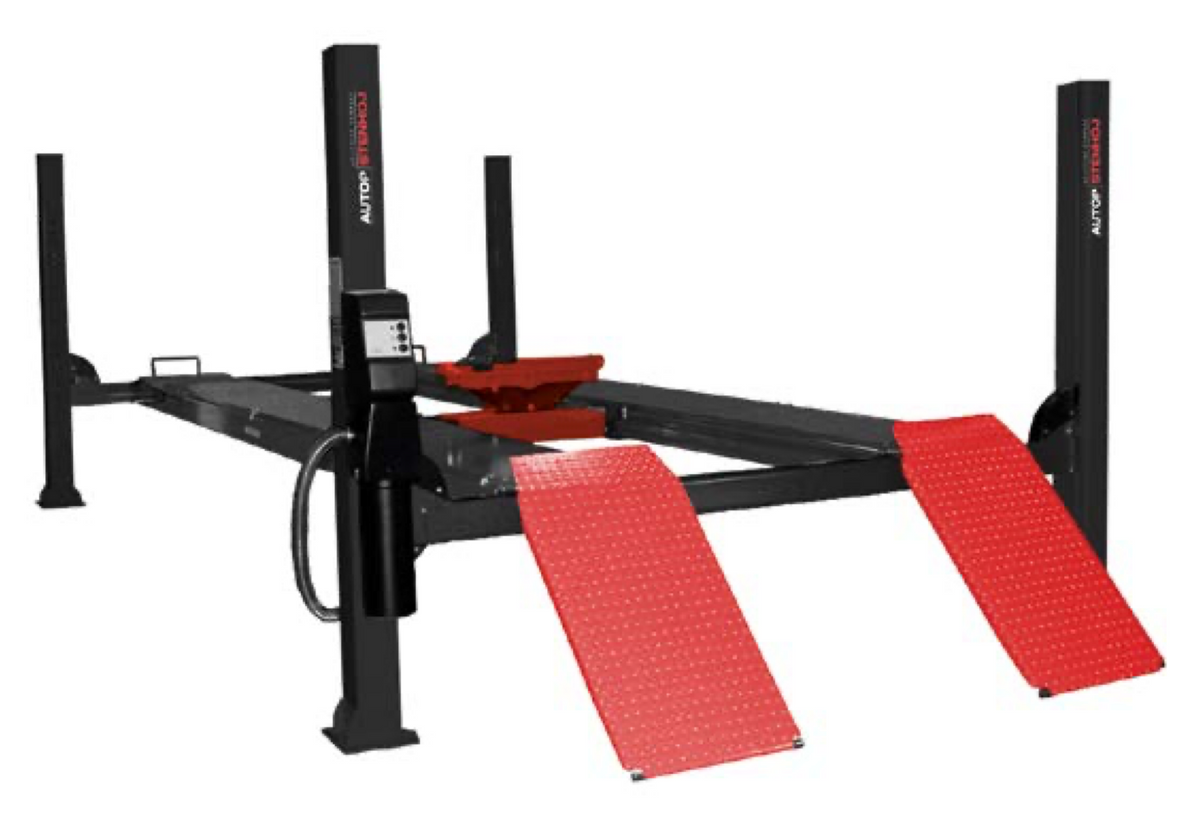

Stenhoj Major 5.2T Capacity 5230 4 Post Lift
AutopStenhoj Major 5.2T Capacity 5230 4 Post Lift
The 009300 / 009320 AUTOPSTENHOJ Major 5230 four post electro-hydraulic vehicle wheel free lift (5.2 tonne) is suitable for car and van workshops.
As with all other Major Lifts, this AUTOPSTENHOJ lift is electro-hydraulically operated and is fitted with an eccentric brake and an obstruction system with alarm.
ALL AUTOPSTENHOJ four post lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.
AUTOPSTENHOJ Lifts are manufactured in Denmark

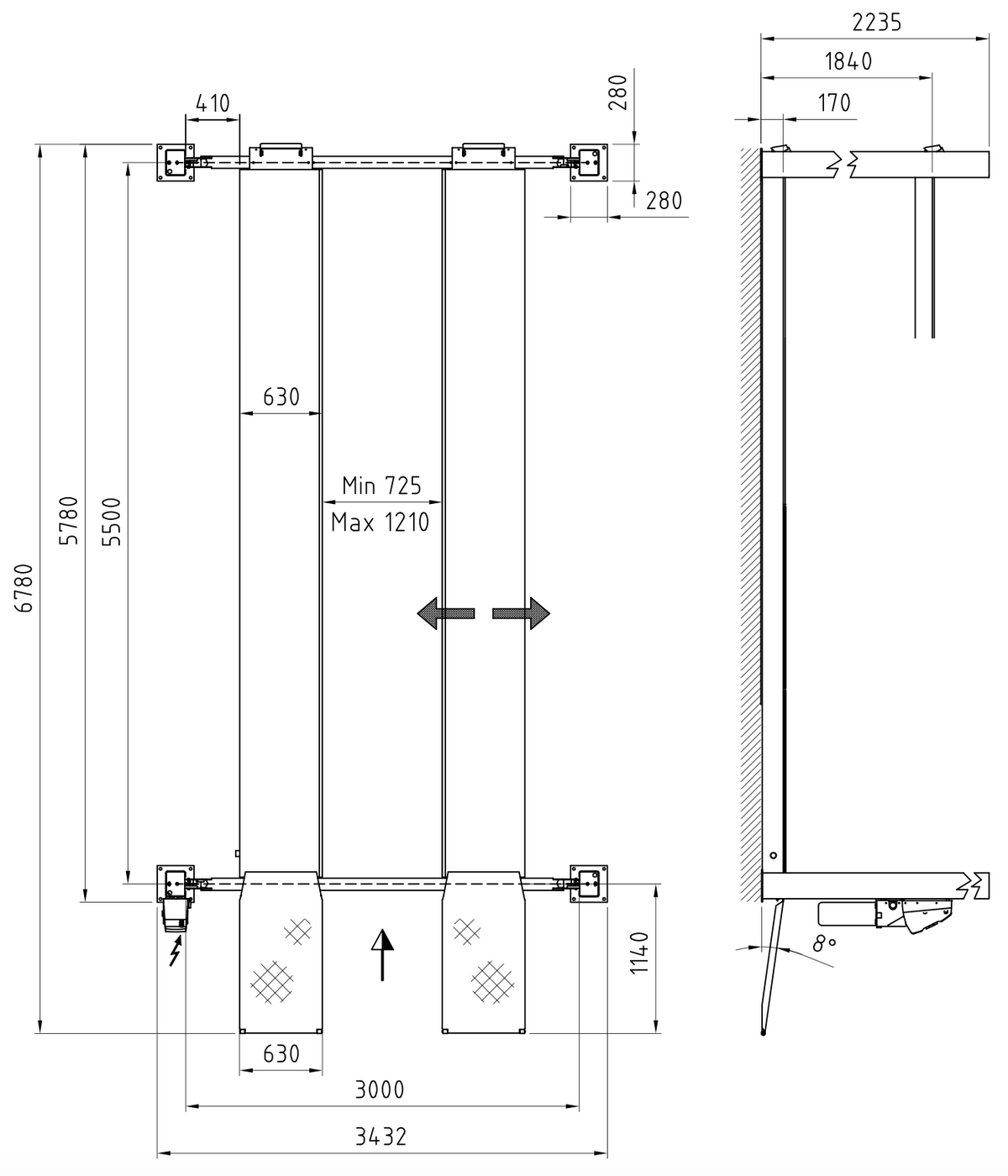

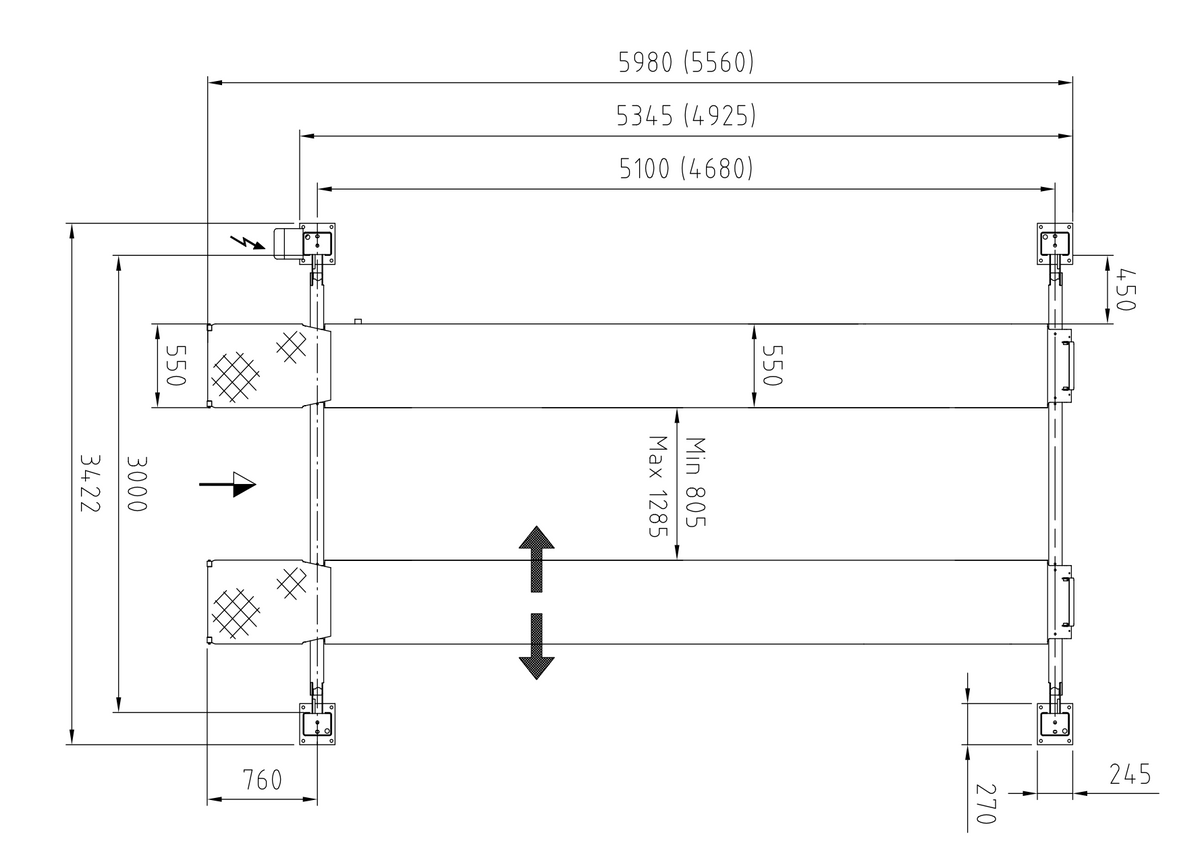

Technical Specification
| Lifting capacity | 5200kg |
| Lifting / lowering time | 32 seconds / 26 seconds |
| Minimum height | 140/170/160/190mm |
| Maximum height | 1860mm |
| Platform length | 4680/5100/5500mm |
| Platform width | 630mm |
| Width between platforms (adjustable) | Yes (725mm – 1210mm) |
| Motor size | 3 kW |
| Power required | 3 Phase – 16a isolator required |
| Operation | Electro-hydraulic |
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.
Benefits
- Work safely with an obstruction underneath - eccentric brake with alarm
- Fit more vehicles into service - choice of 4680/5100/5500mm platform lengths
- Protect the chassis on every vehicle - screw-adjustable pads
Advantages
- Obstruction system halts the lift automatically.
- 4680mm, 5100mm, or 5500mm options.
- Protect chassis across different vehicle types.
Features
- Eccentric Brake with Alarm
- Multiple Platform Lengths
- Screw-Adjustable Pads
- Lifting capacity: 5200kg
- Lifting / lowering time: 32 seconds / 26 seconds
- Minimum height: 140/170/160/190mm
- Maximum height: 1860mm
- Platform length: 4680/5100/5500mm
- Platform width: 630mm
- Width between platforms (adjustable): Yes (725mm - 1210mm)
- Motor size: 3 kW
- Power required: 3 Phase - 16a isolator required
- Operation: Electro-hydraulic
