Stenhoj Major 7230 4 Post Service Lift w/ 6000mm Platforms 7230-60S
Stenhoj Major 7230 4 Post Service Lift w/ 6000mm Platforms 7230-60S

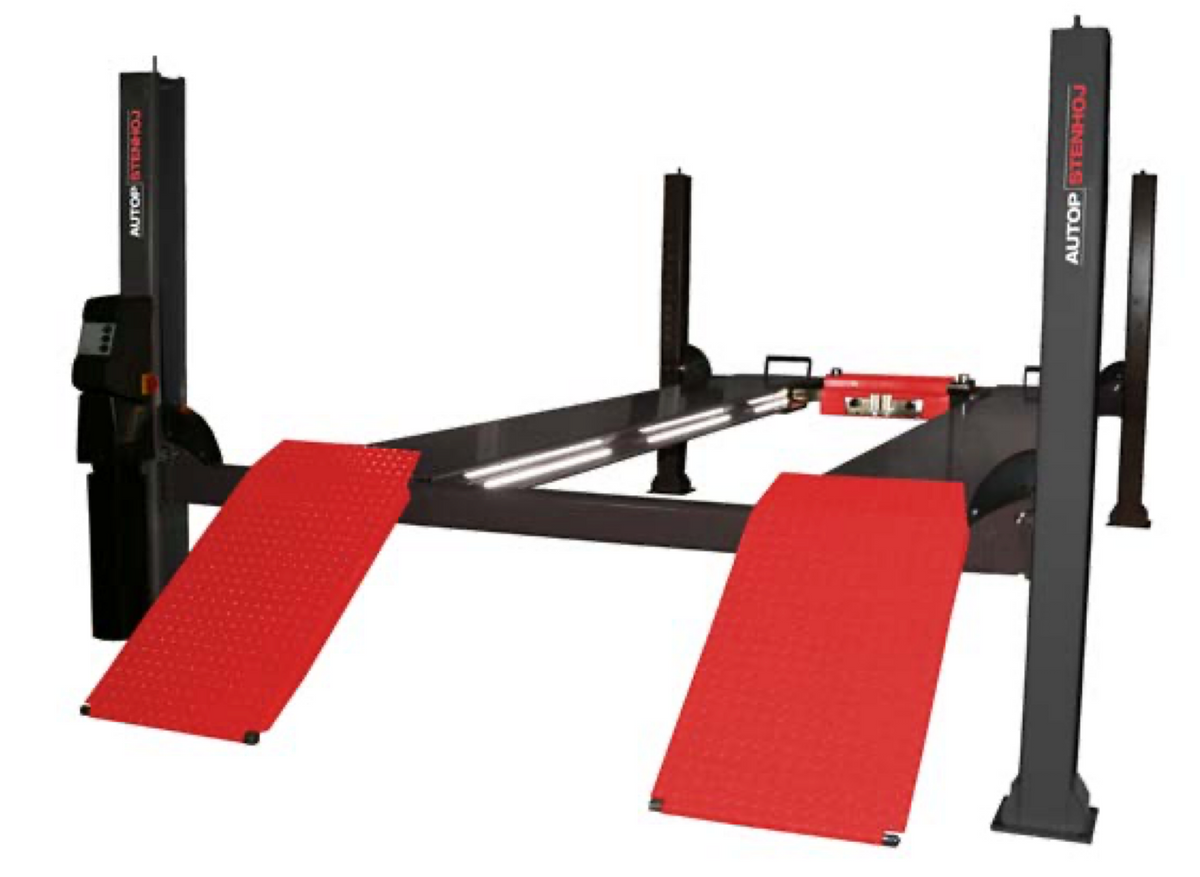

The AUTOPSTENHOJ Major 7230 Four Post Service Lift is an electro-hydraulic four post service lift with 6000mm platforms.
All AUTOPSTENHOJ Major lifts are fitted with an eccentric brake and an obstruction system with alarm. The platform on the right hand side of the lift is also adjustable for extra wide/narrow vehicles.
ALLAUTOPSTENHOJ lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.
AUTOPSTENHOJ Lifts are manufactured in Denmark

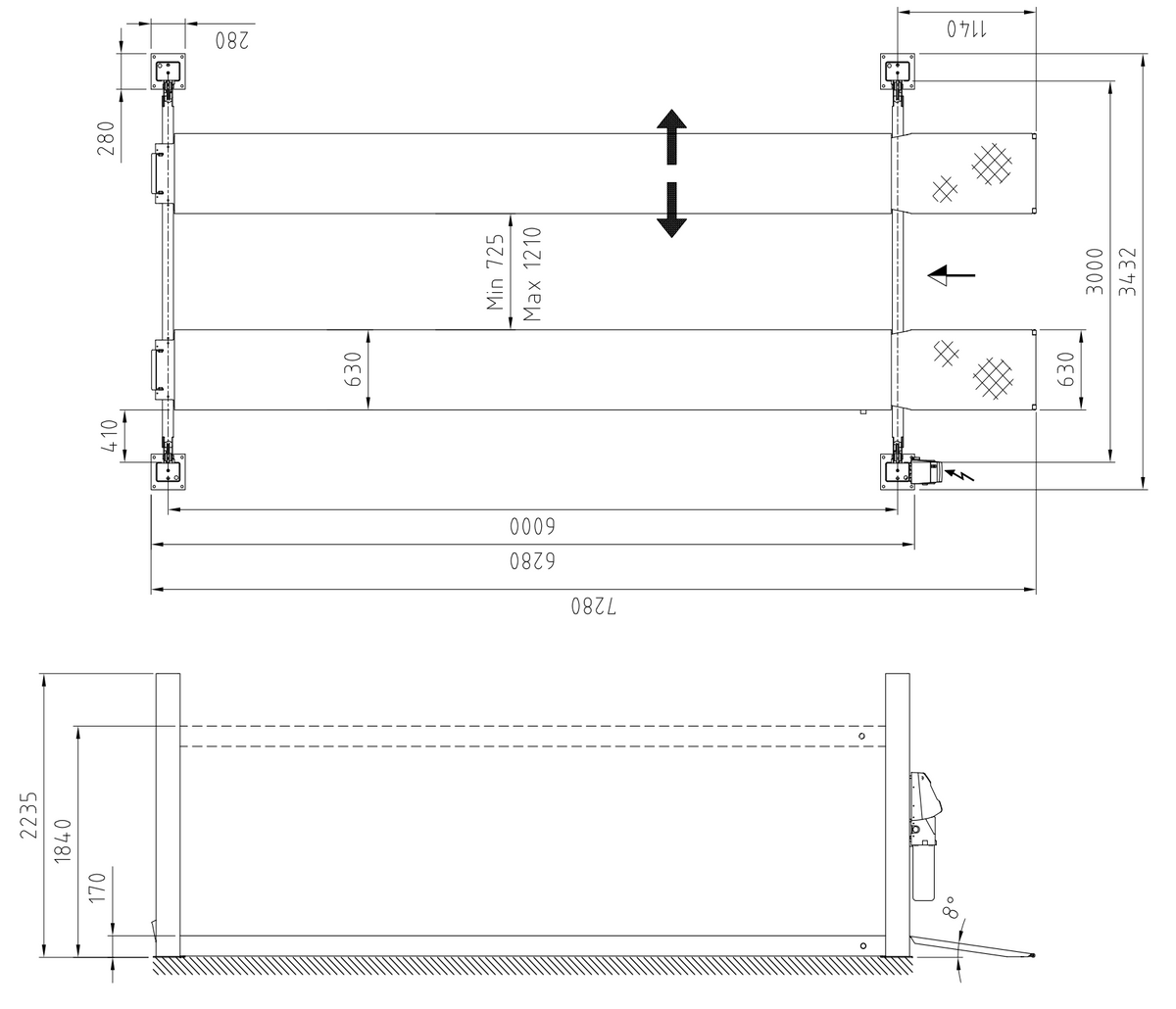

Technical Specification
| Lifting capacity | 7200kg |
| Lifting / lowering time | 40 seconds / 58 seconds |
| Minimum height | 170mm |
| Maximum height | 1840mm |
| Platform length | 6000mm |
| Platform width | 630mm |
| Width between platforms (adjustable) | 725mm – 1210mm |
| Motor size | 3kW |
| Power Required | 3 phase – 16a isolator required |
| Operation | Electro-hydraulic |
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.
Benefits
- Confident heavy-vehicle lifting - 7200kg rated capacity handles the largest commercial vehicles in a busy workshop
- Fit more vehicle types on one lift - the adjustable platform accommodates extra-wide or narrow vehicles without extra equipment
- Work underneath safely - the eccentric brake and obstruction alarm protect technicians during inspection and repair
- Lower long-term running costs - the powder-coated, corrosion-resistant finish protects your investment in demanding workshop environments
- Move vehicles quickly - 40-second lift / 58-second lower cycle keeps bay throughput high
Advantages
- Locks the platform mechanically at height for a secure working platform during inspection and repair.
- Stops the lift and alerts the operator if an obstruction is detected during travel.
- Accommodates extra-wide or narrow vehicles without needing a second lift configuration.
- Components are shot-blasted, primed and electrostatically powder-coated for long service life.
- Smooth, consistent lifting and lowering across the full platform range.
Features
- Eccentric Brake Locking System
- Obstruction System with Alarm
- Adjustable Right-Hand Platform
- Corrosion-Resistant Finish
- Electro-Hydraulic Operation
- Lifting capacity: 7200kg
- Lifting / lowering time: 40 seconds / 58 seconds
- Minimum height: 170mm
- Maximum height: 1840mm
- Platform length: 6000mm
- Platform width: 630mm
- Width between platforms (adjustable): 725mm 1210mm
- Motor size: 3kW
- Power Required: 3 phase 16a isolator required
- Operation: Electro-hydraulic
