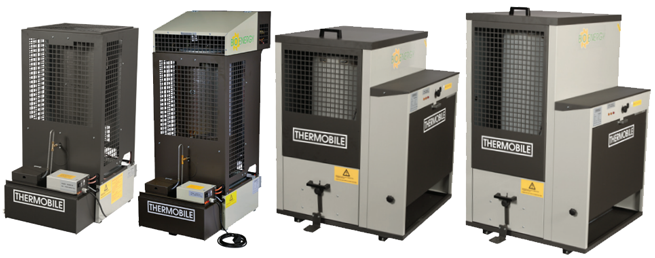

Thermobile Bio Oil Fired Heater
Thermobile Bio Oil Fired Heaters
Thermobile Bio Energy oil fired heaters can be operated using Bio Oil, Bio diesels and various vegetable oils. The following must not be used:
- Solvents
- Thinners
- Petro-chemical based oils
- Transformer oil
- Any oil above S.A.E. 90.
-
Full combustion is achieved in a vaporising system and non-burnable residue is retained in the burner pan.

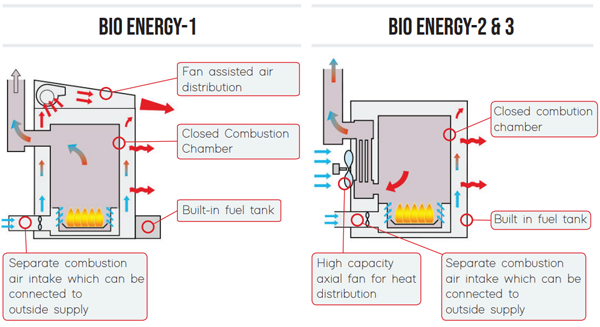

Bio Energy 1, Bio Energy 2 and Bio Energy 3
Models Bio Energy 1, Bio Energy 2 and Bio Energy 3 have been developed primarily for workshop heating.

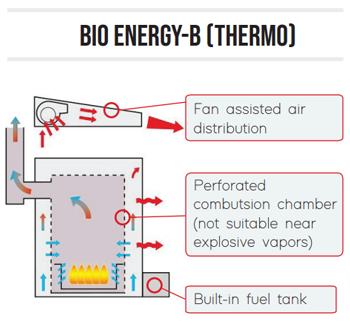

Bio Energy 1 produces a combination of radiant heat plus hot air from the top mounted 'THERMO' blower. Bio Energy 2 and Bio Energy 3 have a high capacity axial fan providing a heated air flow of 3,000 cubic metres per hour.
The high efficiency of the Bio Energy 2 and Bio Energy 3 is achieved by a built-in, large surface heat exchanger, through which all gases have to pass before entering the flue. A high capacity axial fan draws air from the workshop over the heat exchanger and combustion chamber and expels warm air into the building, providing a constant recycling of warm air.
All models are equipped with a fuel tank that can easily be removed for cleaning purposes. Thermobile Bio Energy oil heaters are backed by 50 years of experience in the manufacture and development of space heaters. They are built using the most up-to-date technology and carry a 12 month warranty, ensuring full customer satisfaction.
The heating technology permits the end user to recover the investment costs within possibly one heating season because of the savings made from using Bio Energy Oil instead of a more expensive fuel oil.
Installation of the Heater
The Heater must be installed on a completely level concrete floor. The positioning of the heater in the workshop must take into account the following factors:
- Electricity Supply 240V
- Flue pipe installation
- Combustion air supply
- Access to built in fuel tank
-
Except for the Bio Energy B and Bio Energy B Thermo it is recommended that the unit is installed so that the combustion fan draws in clean air from the outside the building ensuring that no vapours, dust or oxygen can be sucked in from the workshop floor.
Flue Pipe Information
The complete flue kit consists of:
Bio Energy Basic B, Bio Energy Basic Thermo, Bio Energy 1 and Bio Energy 2
- 1 x T piece complete with Draught Stabiliser
- 4 x Im lengths of flue piping (150mm Dia) (including change-over length)
- 1 x Rain Cap
Bio Energy 3
- 1 x T piece complete with Draught Stabiliser
- 5 x 1m lengths of flue piping (200mm Dia) (including change-over length)
- 1 x Rain Cap
Technical Details
| Energy B | Energy B Thermo | Energy 1 | Energy 2 | Energy 3 | ||
|---|---|---|---|---|---|---|
| Capacity Btu/hr (1) | Min | 68,000 | 68,000 | 68,000 | 85,000 | 130,000 |
| Max | 102,000 | 102,000 | 102,000 | 146,000 | 210,000 | |
| Fuel Consumption L/h (1) | Min | 2 | 2 | 2 | 2.5 | 3.8 |
| Max | 3 | 3 | 3 | 4.3 | 6.2 | |
| Tank Capacity | Litres | 50 | 50 | 50 | 55 | 55 |
| Weight | Kg | 67 | 84 | 102 | 135 | 165 |
| Current | A | 0.23 | 0.7 | 0.8 | 1 | 2 |
| Flue Connection | mm | 130 | 130 | 130 | 130 | 180 |
| Heated Airflow | m3/hr | 1000 | 1000 | 3000 | 3000 | |
| Max Space to be Heated | cu.ft | 20,000 | 20,000 | 20,000 | 28,000 | 42,000 |
| Width | cm | 54 | 54 | 54 | 82 | 82 |
| Depth | cm | 98 | 105 | 105 | 110 | 115 |
| Height | cm | 113 | 127 | 127 | 108 | 128 |
Benefits
- Burn waste oil instead of paying to dispose of it - runs on solvents, thinners, transformer oil and other SAE 90+ oils
- Get to work quickly - straightforward deployment with minimal training required
- Choose the capacity that fits your space - five models from 68,000 to 130,000 Btu/hr
