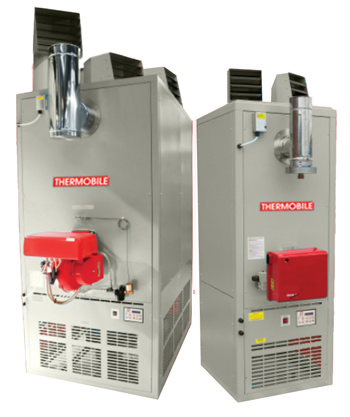

Thermobile PSO Oil Fired Cabinet
Thermobile PSO Oil Fired Cabinet
Connects to a bulk fuel tank The PSO range of heaters from Thermobile provide efficient and cost effective heating solutions for a wide variety of industrial, commercial and retail buildings.. Oil fired heaters can be specified at time of ordering for operation on either Class D light distillate fuel oil - 35 second gas oil, kerosene - 28 second oil (Model dependent) and bio fuel oil B10 (10% maximum).
Combustion air inlet as standard Thermostat, time control, oil filter and fire valve Main fan filters available From 1st January 2018 all warm air heaters used to provide comfort for the occupants of a heated space are required to meet minimum standards of ‘seasonal’ efficiency as determined by the Ecodesign regulation (EU) 2015/1188, Directive 2009/125/EC - Lot 21 Tier 1.. Compliance to the standard is mandatory.
Features
- Oil fired heaters can be specified at time of ordering for operation on either Class D light distillate fuel oil - 35 second gas oil, kerosene - 28 second oil (Model dependent) and bio fuel oil B10 (10% maximum)
- Combustion air inlet as standard
- Thermostat, time control, oil filter and fire valve
- Main fan filters available
- Factory fitted and pre-wired controls
- Plain side panel option to provide siting flexibility
- Primary flue tee fitted as standard
- Stainless steel combustion chamber as standard
- Increased static pressure options (Model restrictions apply)
- More than sixty years experience in warm air
Specifications
- Capacity Btu/hr (1) - Max (PSO 30): 102,000
- Capacity Btu/hr (1) - Max (PSO 45): 153,600
- Capacity Btu/hr (1) - Max (PSO 60): 205,352
- Capacity Btu/hr (1) - Max (PSO 90): 307,000
- Capacity Btu/hr (1) - Max (PSO 120): 409,000
- Heat Output - Kw (PSO 30): 30
- Heat Output - Kw (PSO 45): 45
- Heat Output - Kw (PSO 60): 60
- Heat Output - Kw (PSO 90): 90
- Heat Output - Kw (PSO 120): 120
- Fuel Consumption L/h (1) - Min (PSO 30): 3.16
- Fuel Consumption L/h (1) - Min (PSO 45): 4.83
- Fuel Consumption L/h (1) - Min (PSO 60): 6.38
- Fuel Consumption L/h (1) - Min (PSO 90): 9.70
- Fuel Consumption L/h (1) - Min (PSO 120): 12.95
- Air Flow - m3/s (PSO 30): 0.58
- Air Flow - m3/s (PSO 45): 0.86
- Air Flow - m3/s (PSO 60): 1.15
- Air Flow - m3/s (PSO 90): 1.73
- Air Flow - m3/s (PSO 120): 2.30
- Flue Connection - mm (PSO 30): 125
- Flue Connection - mm (PSO 45): 125
- Flue Connection - mm (PSO 60): 150
- Flue Connection - mm (PSO 90): 150
- Flue Connection - mm (PSO 120): 150
