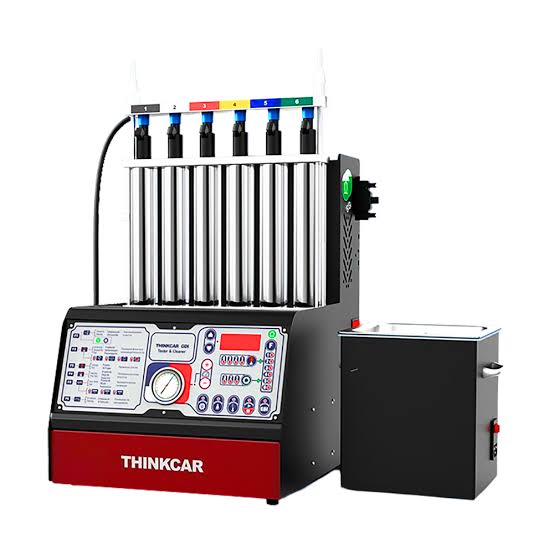

Thinkcar GDI 100 Injector Tester TKTGDI100
Manufacturer's Warranty Included.
Thinkcar GDI 100 Injector Tester TKTGDI100 is backordered and will ship as soon as it is back in stock.



Having moved to a new location and setting up a ltd with all the chaos that involves, buying the needed equipment to service cars was difficult. Advantage Empire worked hard to get me up and running to stay profitable thanks guys
GreysonTrustpilot
Couldn't load pickup availability
Clean and test GDI and port injectors on one machine.
The THINKCAR GDI 100 ultrasonically cleans and flow tests petrol injectors, including GDI units from Bosch, Denso, Delphi and others. Microcomputer control keeps fuel pressure steady, and resistance testing shows the condition of each injector before you refit it.
Who it's for
- Independent garages doing fuel system work
- Injector and fuel specialists
- Performance tuners
Why you'll love it
- Prove an injector is good or bad before you charge for a new one
- Restore spray pattern and flow with ultrasonic cleaning
- Test low resistance injectors down to 1 ohm
What sets it apart
- Supports GDI, low resistance, side feed, TBI and Vortec injectors
- Automatic depressurisation if the machine shuts down
- Automatic fuel drain
How you'll use it
Fit the injectors, run ultrasonic cleaning, then use the uniformity and spray, leakage and flow tests to compare each injector. Resistance testing checks the coils one by one.
See it in action
Manufacturer warranty
Supplied as genuine UK stock through Thinkcar UK with the full manufacturer warranty and UK after sales support. Call 0116 4810180 for the warranty terms on this model.
Key features
- Ultrasonic cleaning
- Uniformity and spray test
- Leakage test
- Injection flow test
- Automatic test mode
- On vehicle cleaning
- Injector resistance test
Specifications
| Power supply | AC 200 to 240V 50/60Hz or AC 100 to 120V 60Hz |
|---|---|
| Input power | 230W |
| Ultrasonic cleaner | 100W |
| Resistance accuracy | 0.1Ω |
| Simulated RPM | 100 to 9900rpm, 10rpm steps |
| Time range | 5 to 300s, 5s steps |
| Pulse width | 0.1 to 25ms, 0.1ms steps |
| Fuel tank | 2000ml |
| Working pressure | 0 to 7 bar |
| Working temperature | -10 to 40°C |
