Werther Class IV 4.5T Lifting Capacity ATL Scissor Lift Electro Hyd...
Werther Class IV 4.5T Lifting Capacity ATL Scissor Lift Electro Hydraulically Operated

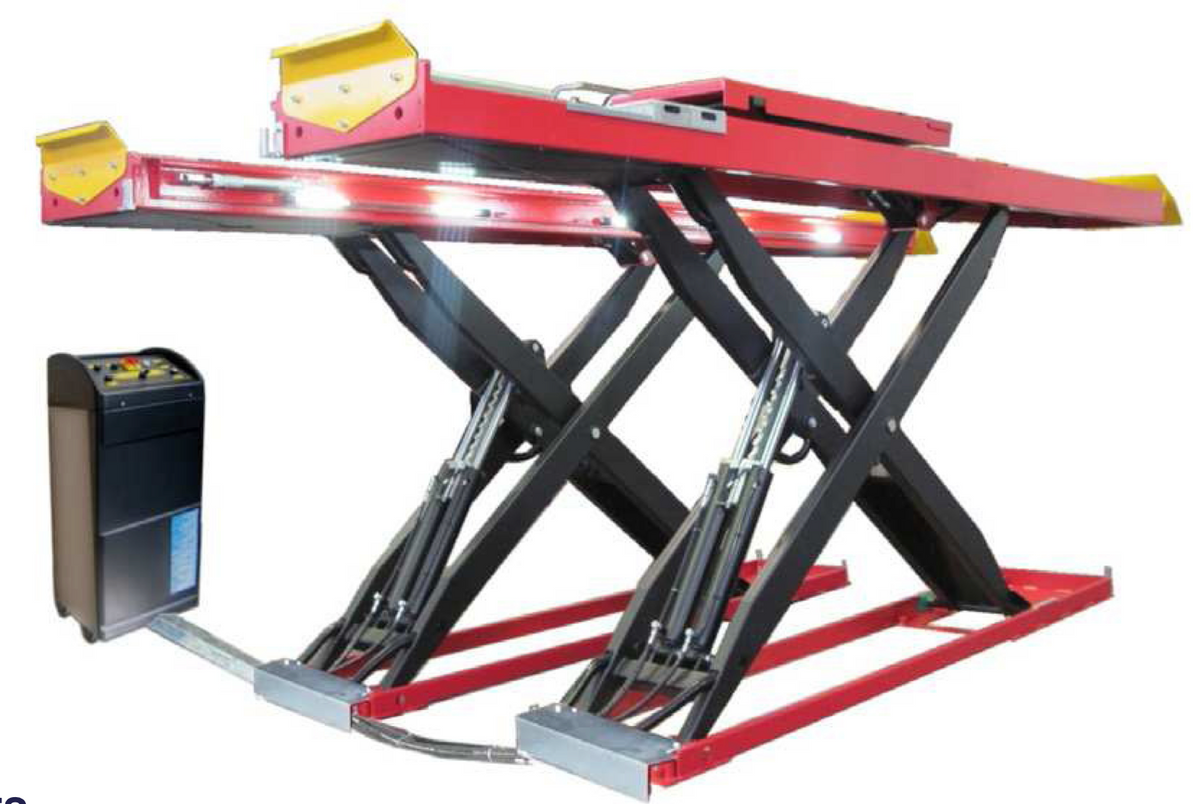

The Werther Class IV ATL Scissor Lift is ideal for workshops with limited space.
This scissor lift is electro-hydraulically operated and capable of lifting vehicles up to 4.5 tonnes.
ALL AUTOPSTENHOJ lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.
AUTOPSTENHOJ Lifts are manufactured in Denmark
Features
- Hydraulic platform synchronisation
- 2 Independent hydraulic circuits
- Overload safety valve
- Safety valve in the event of pressure loss
- Manual descent system in the event of power failure
- 24v ‘dead man’ controls
- Rails for jacking beam
- Jacking beam
Technical Specification
| Lifting Capacity | 4500 kg |
| Lifting / Lowering time | 40 seconds / 30 seconds |
| Platform length | 4800mm |
| Lifting height | 2100mm |
| Minimum height | 330mm |
| Air requirement | 6-8 bar |
| Motor size | 4kW |
| Power requirement | 6-8 BAR |
| Motor size | 4kW |
| Phase | 3 Phase (16a Isolator Required) |
| Operation | Electro-hydraulic |
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.
Benefits
- Keep both sides level under load - two independent hydraulic circuits with synchronisation
- Protect against overload - built-in overload safety valve
- Get vehicles positioned quickly - jacking beam rails plus 24V dead man controls for safe, precise control
Advantages
- The specifications below are matched to typical workshop duty cycles and installation requirements.
Features
- Hydraulic platform synchronisation
- 2 Independent hydraulic circuits
- Overload safety valve
- Safety valve in the event of pressure loss
- Manual descent system in the event of power failure
- 24v dead man controls
- Rails for jacking beam
- Jacking beam
- Lifting Capacity: 4500 kg
- Lifting / Lowering time: 40 seconds / 30 seconds
- Platform length: 4800mm
- Lifting height: 2100mm
- Minimum height: 330mm
- Air requirement: 6-8 bar
- Motor size: 4kW
- Power requirement: 6-8 BAR
- Motor size: 4kW
- Phase: 3 Phase (16a Isolator Required)
- Operation: Electro-hydraulic
