Zed-FULL PLUS Key Programming System w/ 15 Months

Zed-FULL PLUS Key Programming System w/ 15 Months

If you run locksmiths and workshops offering key and remote programming services, this is built for the kind of work you do day to day. In practice, you connect it to the vehicle to programme a replacement key, remote, or transponder.

Not only does the Zed-FULL Plus combine all the features of many competitive tools but the level of software takes key programming options to new heights. The Zed-FULL Plus is packed with new features and software such as:

• Cloning to many fixed and crypto transponders including id46 & 8C
• Cloning to the latest carbon CN2 & ZED46 transponders for 4C, 4D and ID46
• Cloning some ID48 for Daewoo, Chevrolet, Hyundai and Kia
• Built in frequency tester for remote keys
• Recycling and unlocking of used remote keys and key cards
• Remote emulating system for Fiat remotes
• OBD key & remote programming including pincode reading on a huge range of vehicles
• Built in component security code reading aerial for easy scanning
• Latest coverage of VAG vehicles including UDS systems
• Pincode reading for Peugeot & Citroen vehicles
• OBD programming on 24v systems including Renault, DAF and Volvo trucks
• Built in EEPROM programmer with no PC software required
• Over 250 individual immobiliser EEPROM files covered

The Zed-FULL Plus is fully loaded with the full range of software to carry out every feature of the tool, now and in the future. All software updates will be loaded "free of charge" so you never have to pay for the latest software to be added to your tester.

With every Zed-FULL Plus standard cloning features and a range of other software, including the majority of eeprom files, are free to use for life in the purchase price of the tester. To use the remaining outstanding features of the Zed-FULL Plus there are 3 different ways to fund its use.

Benefits

• Replace several separate tools with one - combines OBD programming, transponder cloning, EEPROM reading/writing and remote programming in a single device
• Take it anywhere in the workshop or on a mobile job - the steering-wheel hook and rugged tablet design keep it accessible while working under the dash
• Cover cars and trucks with one cable - single OBD cable with 12V/24V operation removes the need to swap connectors
• Diagnose remotes and batteries on the spot - built-in frequency tester and volt/continuity meter avoid a trip back to the bench
• Stay current without extra cost - software updates are included free of charge

Advantages

• For wireless control from anywhere in the workshop.
• For untethered operation anywhere in the workshop.

Main Features

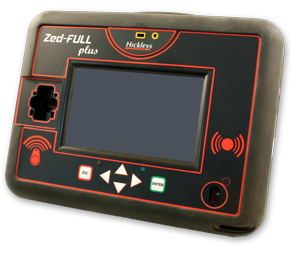

• Rugged tablet handset with steering wheel hook
• 7" HD TFT colour touch screen
• Excellent graphics and intuitive to use
• Single OBD cable for all applications
• 12V and 24V operation for car and truck
• Built-in transponder reader / holder, key and remote reader
• Built-in infrared and remote frequency tester with frequency display
• Built-in volt meter and continuity tester for vehicle and remote battery testing
• Built-in eeprom reader/writer and programming system
• Quick start guide

Free To Use Features

The Zed-FULL Plus standard package includes many features that are completely free to use for the life of the Zed-FULL. These include :

• Transponder identification (all types)
• Transponder cloning for fixed 11, 12, 13, 14, 33, T5 & 4C
• Transponder cloning for Crypto 40(some), 41, 42, 44 (unlocked VAG), 45, 73 & 8C
• Transponder cloning for Crypto 2, ID46 onto carbon TS46 or TK60 (Internet) & CN3
• Transponder cloning for Texas 4D (Internet) to TPX2
• Transponder cloning to a range of VAG & Fiat ID48 vehicles onto a ZED48 using ZFH48 sniffer
• Transponder cloning for ID48 Daewoo, Chevrolet and some Hyundai/Kia onto TS48
• Writing to transponder T5, PCF7930, PCF7931, PCF7935, PCF7936, PCF7946, PCF7947, 4D60, 48, 8C, TPX1, TPX2, EH1, EH2, TK60, Z4C, CN2, TS46, TS48, TK5551, CN3
• Transponder test
• BMW EWS remote battery charging
• Built-in infrared and remote frequency remote tester
• Manual remote programming procedures
• Pincode reading fromkey on peugeot 45, Renault 33, Hyundai/Kia 6pin
• Unlock ID48 & virgin 48 CAN & Honda ID46
• Reading KM, chassis and key info from BMW EWS keys and remotes
• Transponder catalogue
• Customer database
• PC software for cloning, pincodes, updating, loading software, eeprom applications and emulator unlocking
• Transponder production for 33 various, 40, 41, 42, 44, 45, 46 various, 61, 62, 63, 65, 67, 68, 69, 70 & 73 to PCF7930, PCF7931, PCF7935, PCF7936, T5, TPX2 and CN2
• Mercedes E, C & G class up to 1999
• Pincodes for Renault 33, Renault 60-64 and Peugeot 45 from key head
• 159 of the 219 eeprom files are free to use
