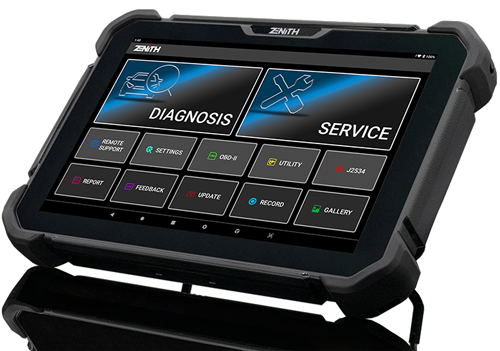

Zenith Z7Pro Automotive Diagnostic Scan Tool
Zenith Z7Pro Automotive Diagnostic Scan Tool
If you run independent garages, mobile diagnostic technicians, and franchise dealer workshops, this is built for the kind of work you do day to day. In practice, you connect it to the vehicle's diagnostic port to read fault codes, view live data, and identify the cause of a reported problem before carrying out a repair.
Quick Access Functions
Access frequently used service functions without navigating complex menus.
ADAS Calibration
Includes the latest ADAS calibration software in one package.
Remote Diagnostics
Supports remote diagnostics via J2534 technology.
Bluetooth Connectivity
Wireless diagnostics with the latest Bluetooth technology.
ECU Programming
Functions as a passthru device for programming ECUs across multiple car lines.
Ultra-Fast System Search
Efficiently detect VIN, model year, model name, engine type, and other critical information with ultra-fast system and auto-system scan capabilities.
Topology Scan
Perform quick topology scans to diagnose all vehicle systems, report fault codes, and access advanced diagnostic functions in each detected system.
Service Functions
Save time with shortcuts to the most frequently used workshop functions, eliminating the need to navigate through original menu systems.
CAN FD & DoIP Support
Stay current with the latest protocols, including CAN FD and DoIP.
FCA SGW Ready
Access the security gateway on the latest Fiat and Chrysler models via AutoAuth.
24V Truck Support
Achieve bi-directional communication with Asian light-duty to medium-duty 24V trucks.
Detailed DTC Descriptions
View long-text DTC descriptions in full screen with zoom functionality for easy reading.
Integrated DTC Search
Search DTC codes directly without the need to switch to external web sources, using the integrated magnifying glass button.
Live Data Analysis
Professionals can view and compare multiple live data points simultaneously, with the ability to search and select desired items for comprehensive data analysis.
J2534 Pass-thru Device
Zenith functions as a J2534 pass-thru device for multiple car makes with CAN-Bus, KWP2000, and ISO9141 protocols, supporting J2534 programming and diagnostics.
Pre & Post Diagnostic Reports
Easily create and manage diagnostic reports with pre-scan and post-scan results. Save reports as PDF files, print via Bluetooth printer, or email them directly from the device.
Battery Management System
Access detailed battery information, including State of Charge (SOC), State of Health (SOH), voltage, current value, and temperature for each cell in EV, Hybrid EV and Plug-in Hybrid vehicles.
Technical Specification
| CPU | Octa Core Processor 2.2 GHz |
|---|---|
| Operating System | Android 11 |
| System Memory | 4G / Internal 64G ** |
| External Memory | Micro SD Card Slot Supported (up to 256GB) |
| LCD | 10.1 inch FHD (1920 x 1200) |
| Input Devices | Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -) |
| Camera | 8 megapixel auto-focus with LED flash |
| Sound | Loud Speaker 1 microphone |
| Rechargable Battery | Li-ion 3.85V, 5800mAh |
| Operating Voltage | Main Unit(DC5V) |
| Sensors | Ambient Light, Gyroscope, Accelerometer |
| Dimension | About 275 x 187 x 36mm(Terminal) About 170 x 124 x 32mm(VCI) |
| External Port | 1 x USB Type C (Special Locking Type Port) |
| Network | RJ45 Ethernet, Wi-Fi 802.11 a/b/g/n, Bluetooth 5.0, NFC |
Supported Protocols
- CAN-FD, DoIP By-Pass, CAN (High speed, Low speed, Single)
- ISO-13400, ISO-11898, ISO-9141, ISO-9141-CARB, KWP-2000
- SAE-J1708, SAE-J1587
- J1850(PWM/VPW)
- Melco Pull-Down
Benefits
- Access common tests without digging through menus - frequently used service functions surfaced directly
- Skip buying separate ADAS equipment - calibration software included in the package
- Diagnose remotely when needed - supports J2534 pass-thru technology
Advantages
- Touchscreen control keeps operation straightforward without extra buttons or a separate keyboard.
- Rechargeable battery power removes the need for a trailing cable during use.
- Wireless connectivity lets you work without being tied to the unit by a cable.
Features
- CPU: Octa Core Processor 2.2 GHz
- Operating System: Android 11
- System Memory: 4G / Internal 64G
- External Memory: Micro SD Card Slot Supported (up to 256GB)
- LCD: 10.1 inch FHD (1920 x 1200)
- Input Devices: Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -)
- Camera: 8 megapixel auto-focus with LED flash
- Sound: Loud Speaker 1 microphone
- Rechargable Battery: Li-ion 3.85V, 5800mAh
- Operating Voltage: Main Unit(DC5V)
- Sensors: Ambient Light, Gyroscope, Accelerometer
- Dimension: About 275 x 187 x 36mm(Terminal) About 170 x 124 x 32mm(VCI)
- External Port: 1 x USB Type C (Special Locking Type Port)
- Network: RJ45 Ethernet, Wi-Fi 802.11 a/b/g/n, Bluetooth 5.0, NFC
