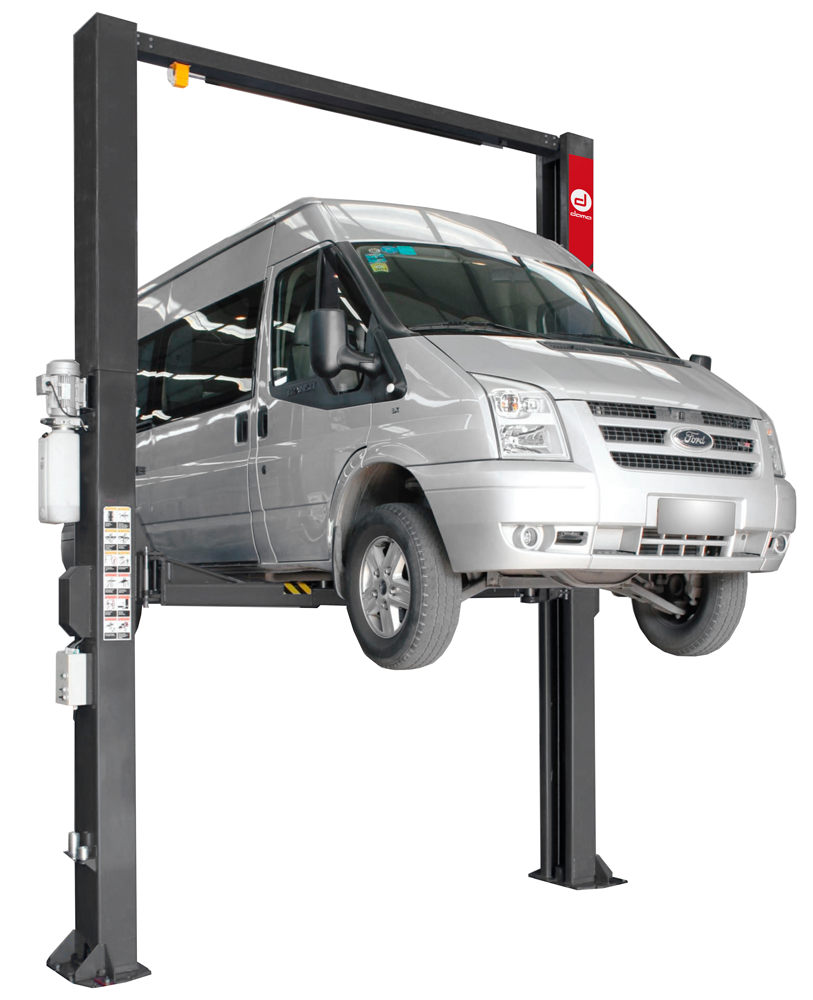

Dama 6T Gantry 2 Post Lift HDM60TSB3H
6 tonnes of 2 post lift for large vans and small trucks, with a clear floor and two height options.
The Dama HDM6.0T/SB3H is a baseless gantry 2 post lift with long 1800mm 3 stage arms. Choose an internal height of 4695mm or 5000mm to suit your building. Optional EV arms make battery replacement work easier.
Who it's for
- Light commercial and van workshops
- 4x4, minibus and small truck specialists
- Fleet depots with tall vehicles
Why you'll love it
- Lift large vans and small trucks on a clear floor
- Pick the height option that fits your building
- Reach jacking points with 1800mm 3 stage arms
What sets it apart
- 6000kg capacity
- 2 cylinder chain drive with synchronisation steel rope
- Electromagnetic lowering valve and electric lock release
- Optional EV arms for battery replacement
How you'll use it
Drive between the posts, extend the arms and set the pads, fitting the 67mm or 127mm extensions if needed. Raise the vehicle in about 50 seconds and work underneath with nothing on the floor.
Manufacturer warranty
Backed by Dama's 24 month manufacturer warranty, with UK support from our team on 0116 4810180.
Key features
- 6 tonne capacity
- Electro hydraulic
- Baseless design
- 2 cylinder and chain drive
- Synchronisation steel rope
- Electromagnetic lowering valve
- Electric lock release
- 2 height switches, car and carriage
- Minimum pad height 123mm to 178mm
- 4 x 67mm and 4 x 127mm extensions included

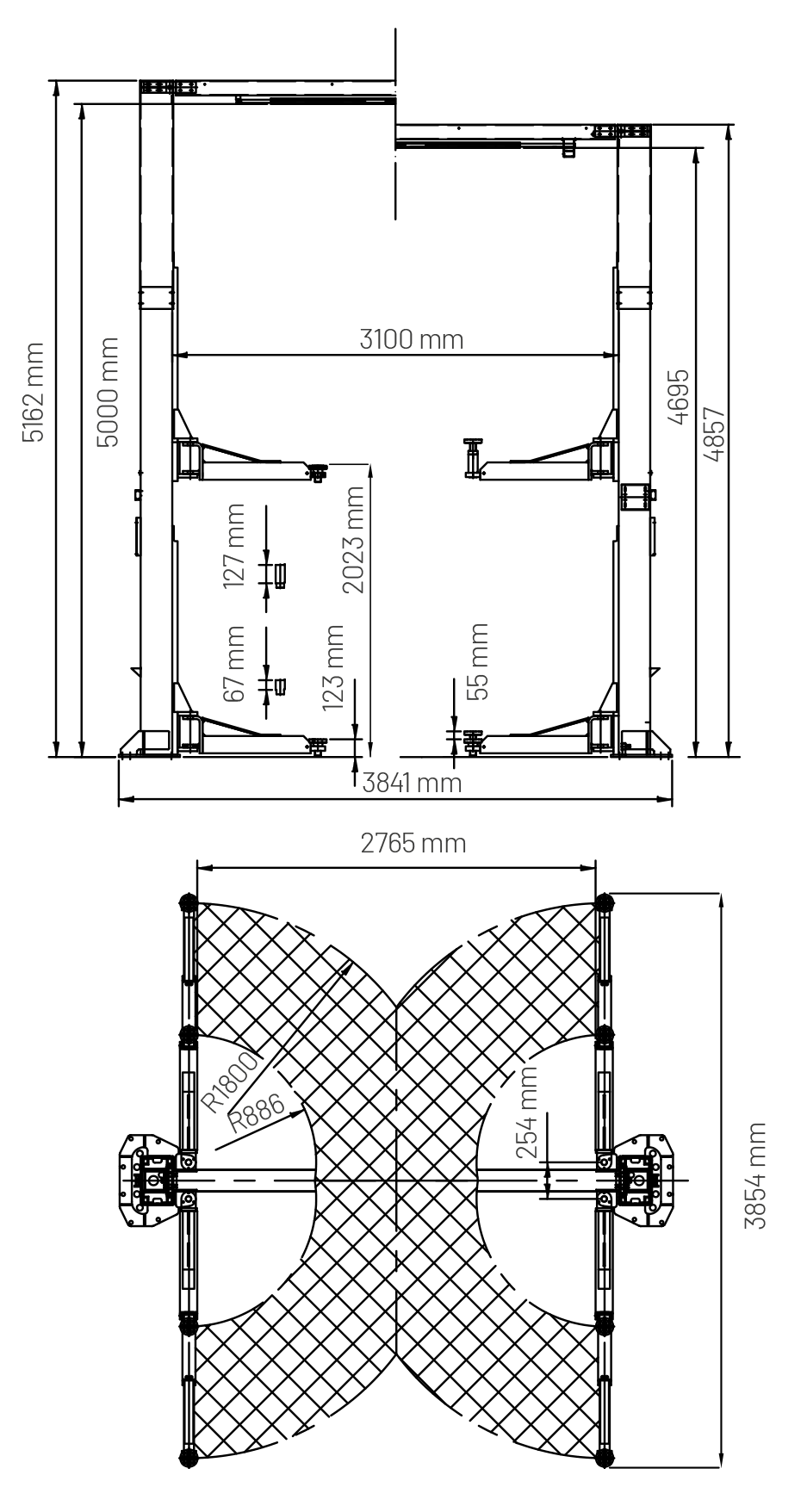

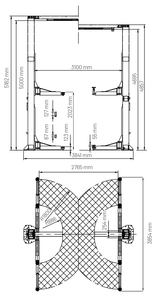

Technical specification
| Maximum lifting capacity | 6000kg |
|---|---|
| Internal height | 4695mm or 5000mm |
| Overall height | 4857mm or 5162mm |
| Arm length | 1800mm, 3 stage |
| Lifting time | 50 seconds |
| Power supply | 400V 3 phase 50Hz, 3 phase only |
| Lift weight | 1100kg |
| Warranty | 24 months |
What's included
- 2 post lift
- 4 x 67mm extensions
- 4 x 127mm extensions
Downloads
Optional EV arms (HDM6.0T/SB2H-BC) available, call 0116 4810180.
