Dama 5T 4 Post Lift with 4700mm Platforms HDM54700

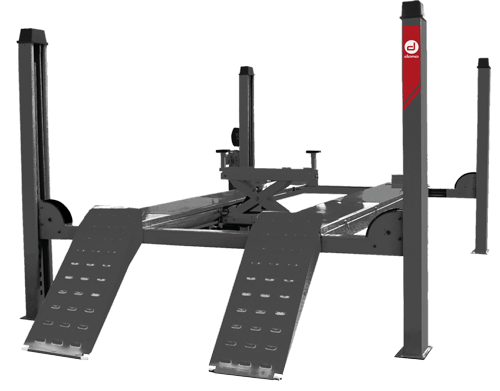

A 5 tonne service and alignment 4 post lift for bays where space is tighter.
The Dama HDM5.4700 has 4700mm platforms, long enough for most large cars and long vans and for alignment on all but the longest vehicles. It comes with built in lockable slip plates, removable plates for front turnplates, one moving platform, air locking and a rope slack safety system. Backed by a 2 year parts and labour warranty.
Who it's for
- Garages with shorter bays
- Service and repair workshops
- Tyre and alignment centres
Why you'll love it
- Fit a full 4 post alignment lift into a tighter bay
- Service large cars and long vans on one lift
- Keep alignment accurate with air locking
What sets it apart
- 5000kg capacity
- 4700mm platforms with one moving platform
- Rope slack safety system and safety switches
- Long run on ramps
How you'll use it
Drive up the ramps, set the wheels on the turnplates and slip plates and raise to working height. Adjust the moving platform to the vehicle's track width as needed.
Manufacturer warranty
Backed by Dama's 24 month manufacturer warranty, with UK support from our team on 0116 4810180.

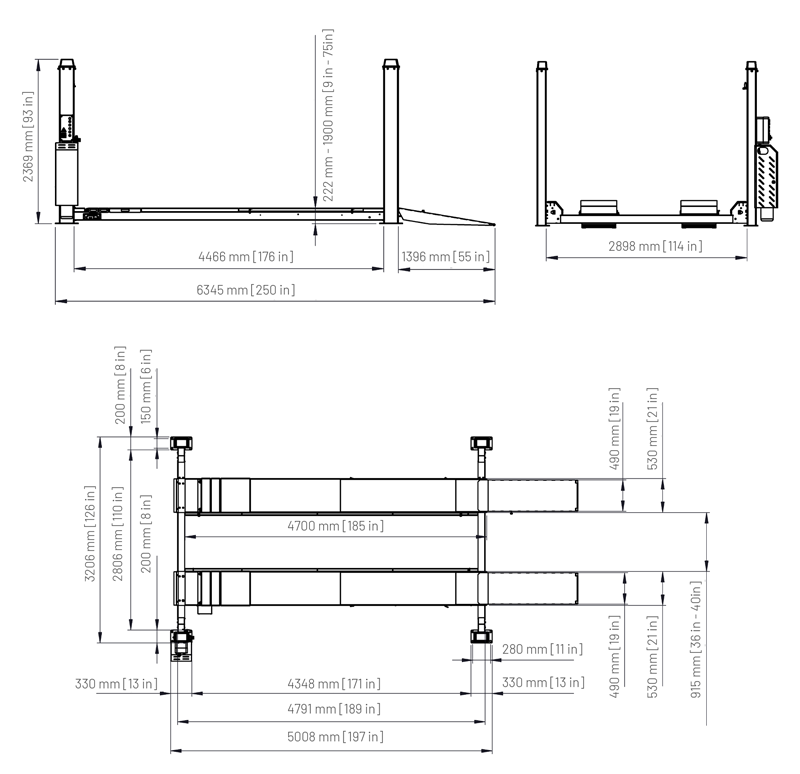

Technical specification
| Maximum lifting capacity | 5000kg |
|---|---|
| Platform length | 4700mm |
| Lifting height | 1900mm |
| Overall height | 2369mm |
| Lifting and lowering time | under 120 seconds |
| Power supply | 400V 3 phase 50Hz |
| Warranty | 24 months parts and labour |
