Dama Isotech 5T Semi-Base 2 Post Lift HIEQ1350
A 5 tonne 2 post lift for vans, 4x4s and motorhomes that runs on single or 3 phase power.
Q4 offer: save £1,200 inc VAT until 31 December 2026. Was £5,994, now £4,794 inc VAT.

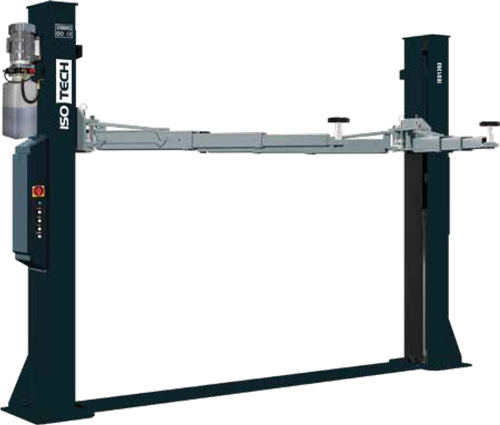

The Isotech by Dama HIEQ1350 builds on the HDM5.0T/1 and /2 with longer reach arms and a choice of power supply. The semi base design has a small cover between the posts and no overhead bar, so tall vehicles go up with clear space above. Price includes delivery and installation.
Who it's for
- Van, 4x4 and motorhome workshops
- Garages without a 3 phase supply that need 5 tonne capacity
- Workshops with restricted ceiling height
Why you'll love it
- Lift heavy vans and SUVs on a single phase supply, no 3 phase upgrade needed
- Work on tall vehicles with nothing overhead
- Reach long wheelbase jacking points with the longest arms in the 5T range
What sets it apart
- Triple extending arms reach from 900mm to 1800mm
- Pick up pads adjust from 100mm to 160mm
- Lifting range 110mm to 1900mm
- Available as 230V single phase (2.2kW) or 400V 3 phase (3.0kW)
How you'll use it
Drive over the low cover, extend the triple arms to the jacking points and raise the vehicle in around 60 seconds. With no overhead bar, the lift handles high roof vans and motorhomes, and the electro hydraulic drive brings it down smoothly.
Manufacturer warranty
Backed by Dama's 24 month parts and labour warranty, with UK support from our team on 0116 4810180 if you ever need a hand.
Key features
- 5000kg lifting capacity
- Electro hydraulic operation
- Semi base design, no overhead bar
- Triple extending arms, 900mm to 1800mm
- Pick up pads 100mm to 160mm
- Lifting range 110mm to 1900mm
- Lifting time 60 seconds
- Single phase 2.2kW or 3 phase 3.0kW
- Delivery and installation included
Technical specification
| Maximum lifting capacity | 5000kg |
|---|---|
| Arm reach | 900mm to 1800mm |
| Pad height | 100mm to 160mm |
| Lifting range | 110mm to 1900mm |

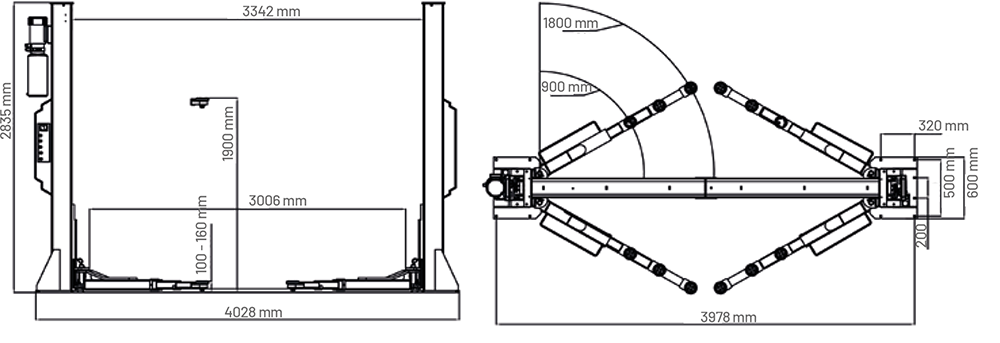

| Overall width | 4028mm |
| Lifting time | 60 seconds |
| Power supply | 400V 3 phase 3.0kW or 230V 1 phase 2.2kW |
| Warranty | 24 months |
Dimensions differ from the HDM5.0T/2. Call 0116 4810180 for a bay check before ordering.
