Lampcheck Headlight Aligner SKU LAMPCHECK22

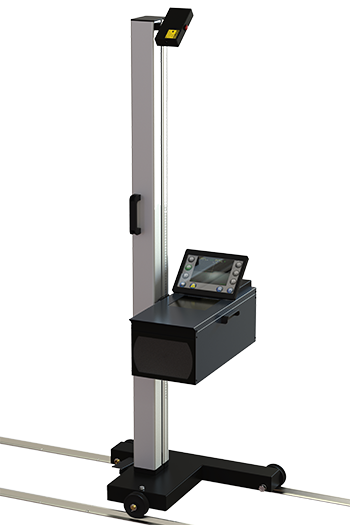

Lampcheck 22 Electronic Headlight Aligner

If you run MOT test centres and workshops carrying out DVSA-regulated vehicle testing, this is built for the kind of work you do day to day. In practice, you run the vehicle through the test procedure and use the readings to confirm it meets the required standard.

Benefits

• One machine for every headlight type on the road - covers halogen, xenon, LED and Matrix systems without needing separate equipment
• Move it anywhere in the workshop - Li-Ion battery power means no trailing mains cable during testing
• Position it accurately in seconds - the dual laser system removes the guesswork from lining up with the vehicle
• Keep digital MOT records without extra paperwork - USB, Bluetooth and Wi-Fi connectivity let results go straight to PC or printer
• Adjust height with minimal effort - the counterweighted mast needs less than 0.5 daN of force to move

Advantages

• One of the first fully electronic aligners accepted across every class.
• Tests and adjusts halogen, xenon, LED and Matrix headlights.
• Guided operation via a built-in PC tablet.
• Captures and analyses the beam pattern electronically.
• Positions the unit in front of the vehicle quickly and accurately.

Features

• DVSA Approved for All MOT Bay Classes
• Universal Headlight Compatibility
• 10-inch Touchscreen with Windows 10
• 1.3MP CMOS Imaging Camera
• Laser Alignment Visor and Central Laser Pointer
• PC, Bluetooth and Wi-Fi Connectivity
• Rotating Mast
• Counterweighted Height Adjustment
• Li-Ion Battery Power
• 4-Metre Rail Track Included
• Measurement Units: %, degrees, or cm/10m
• Operating Height Range: 250mm to 1200mm
• Display: 10-inch touchscreen, Windows 10
• Camera: 1.3 megapixel CMOS
• Power Supply: Li-Ion battery with 230Vac external charger input
• Base: 3-wheel stable base with counterbalance height control
• Rail Track Length: 4 metres (included)
