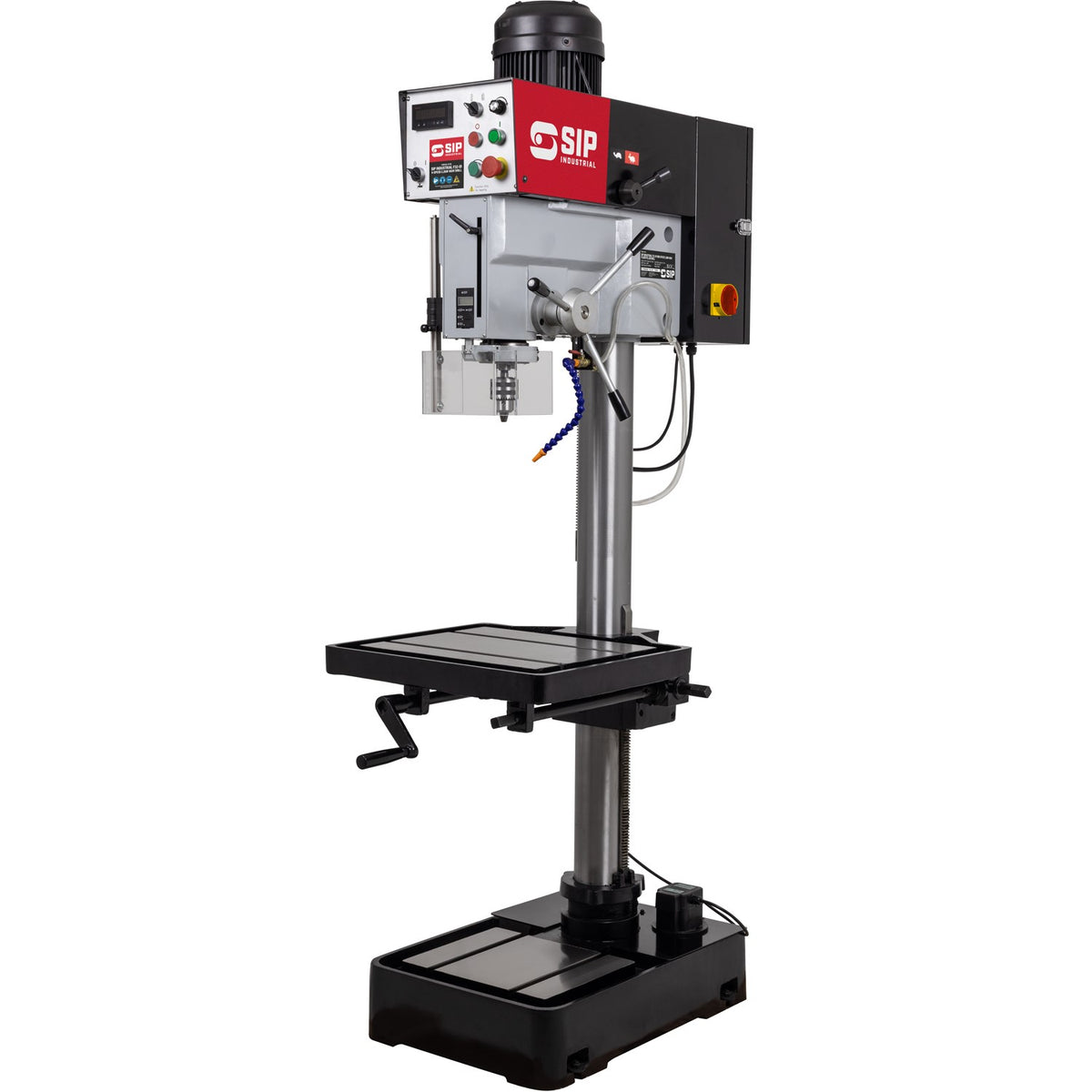

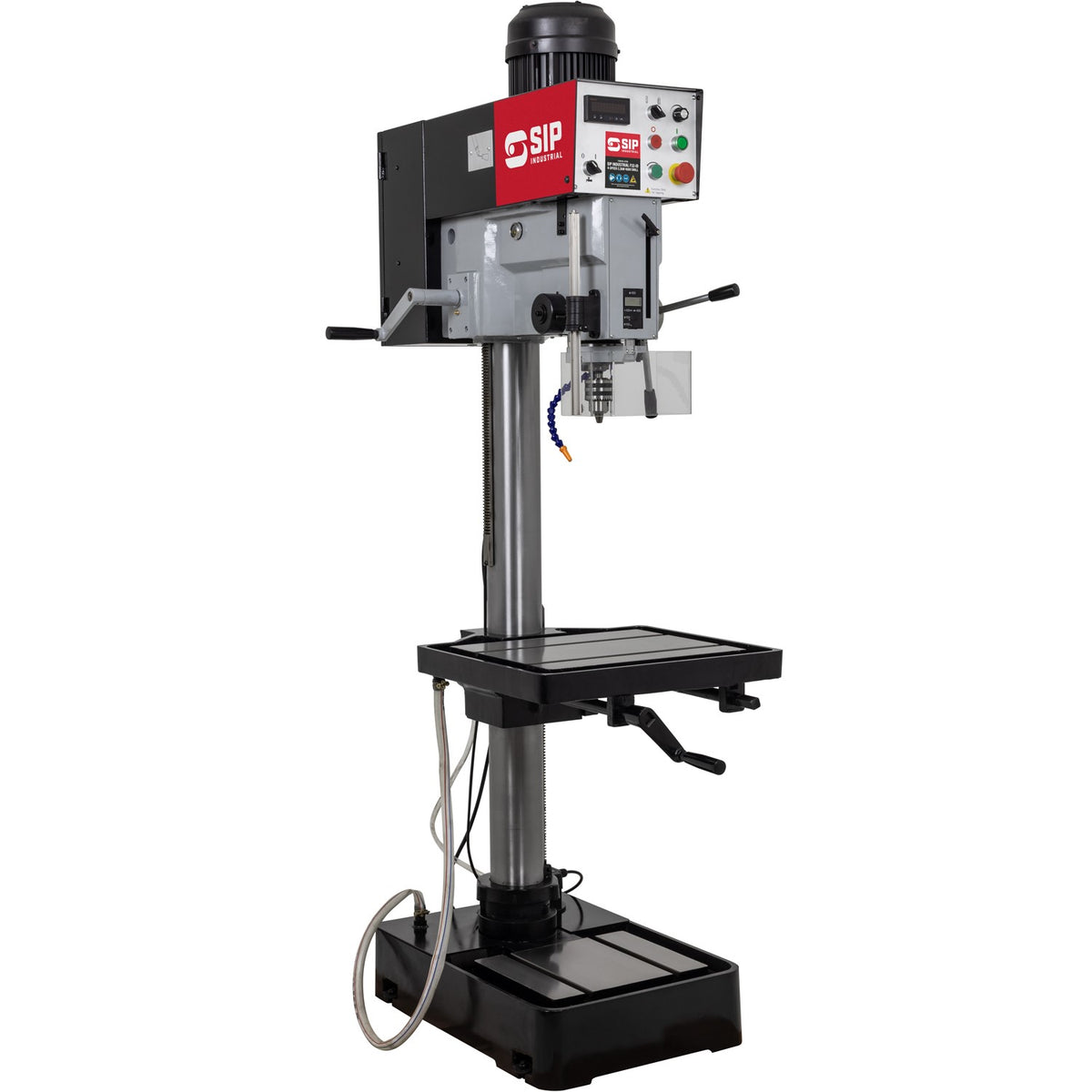

SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill
Industrial floor pillar drill power for big holes and tapping.
The SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill drills up to 32mm and taps threads up to 19mm with a MT3 spindle. 65rpm to 540rpm (low) / 245rpm to 2000rpm (high) gives the right speed for steel, alloy and plastics.
Who it's for
- Engineering and toolroom workshops
- Fabrication and welding shops
- Agricultural and plant repair workshops
- Colleges and training centres
Why you'll love it
- Accurate, square holes in heavy sections
- High torque at low speed for large drills
- Heavy base and column cut vibration and chatter
What sets it apart
- Speed range: 65rpm to 540rpm (low) / 245rpm to 2000rpm (high)
- Spindle travel: 150mm

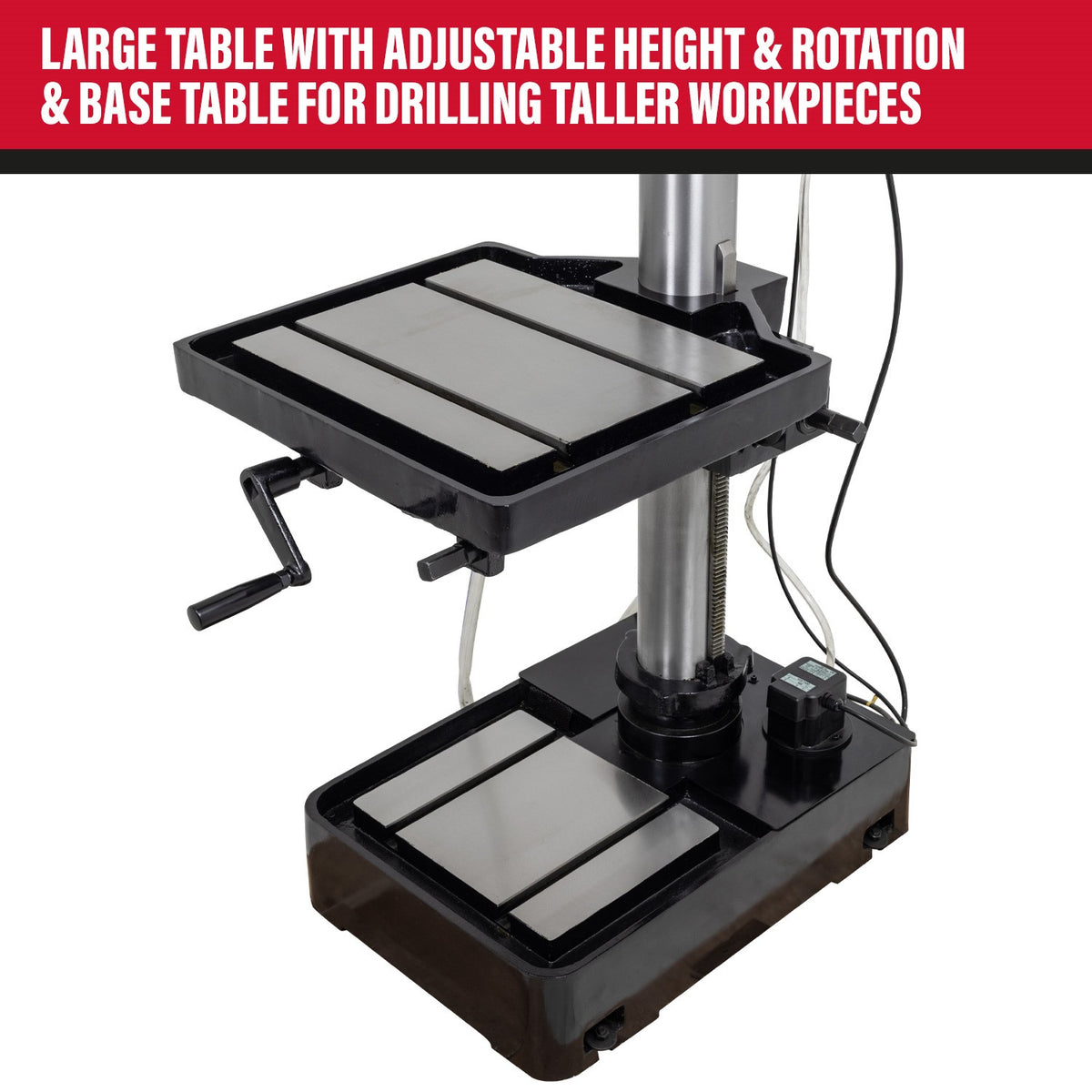

- Table size: 560mm x 475mm
How you'll use it
Set the table height, clamp the job, choose the speed for the material and drill size, then feed with the handle. Use the tapping function to thread holes in the same setup.
Manufacturer warranty
Your SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill comes with the SIP 2-Year Standard Silver Warranty. Register your purchase with SIP within 30 days to activate the SIP warranty. Accessories and consumables are excluded. Bought from Advantage Empire, an authorised SIP dealer, it is genuine UK stock backed by SIP’s UK service centre and engineers across the UK and Ireland.
Key features

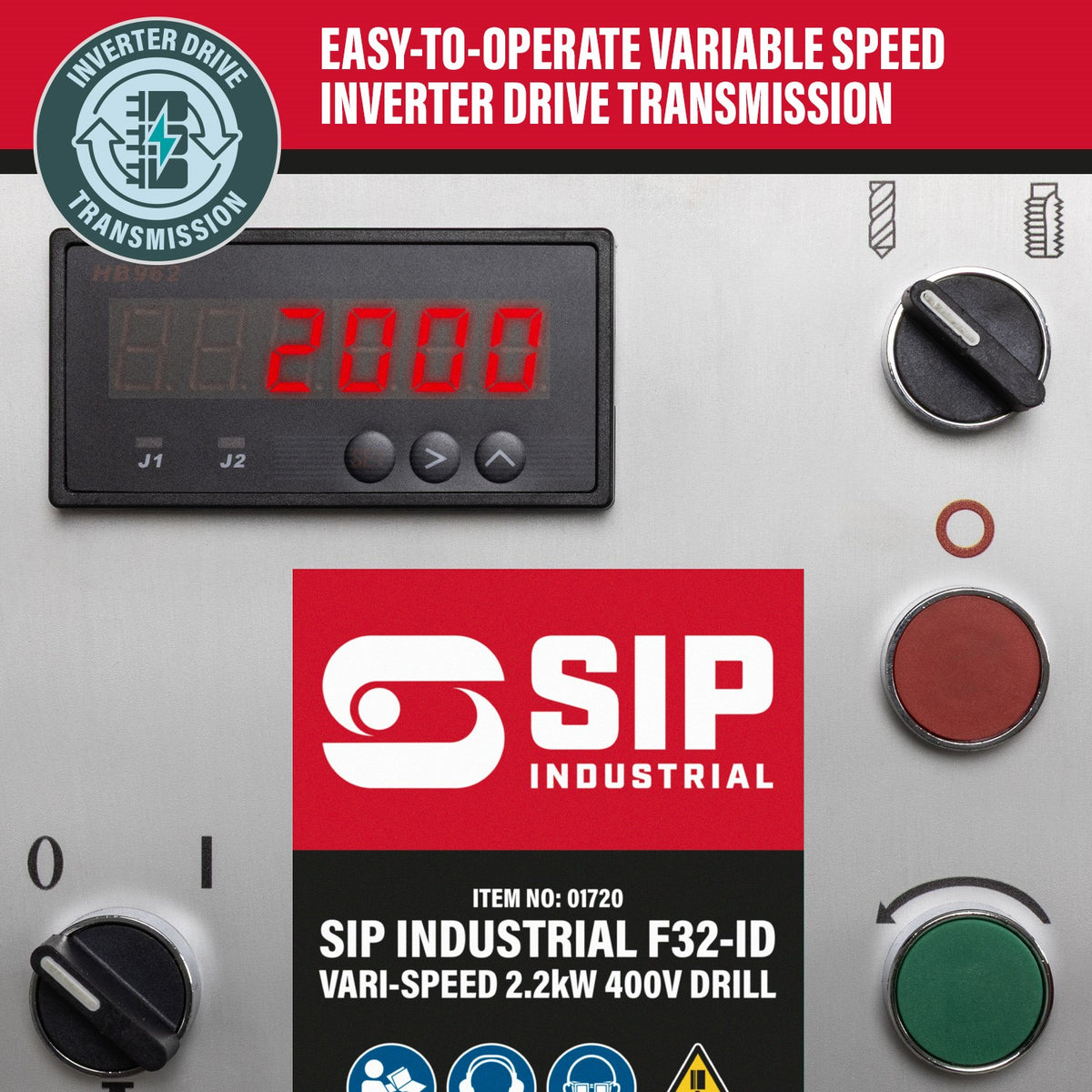

- Variable frequency inverter drive transmission with wide 65-2000rpm speed range
- Infinitely variable control dial for precise spindle speed setting
- High torque output for consistent drilling power of up to max. ⌀ 32mm

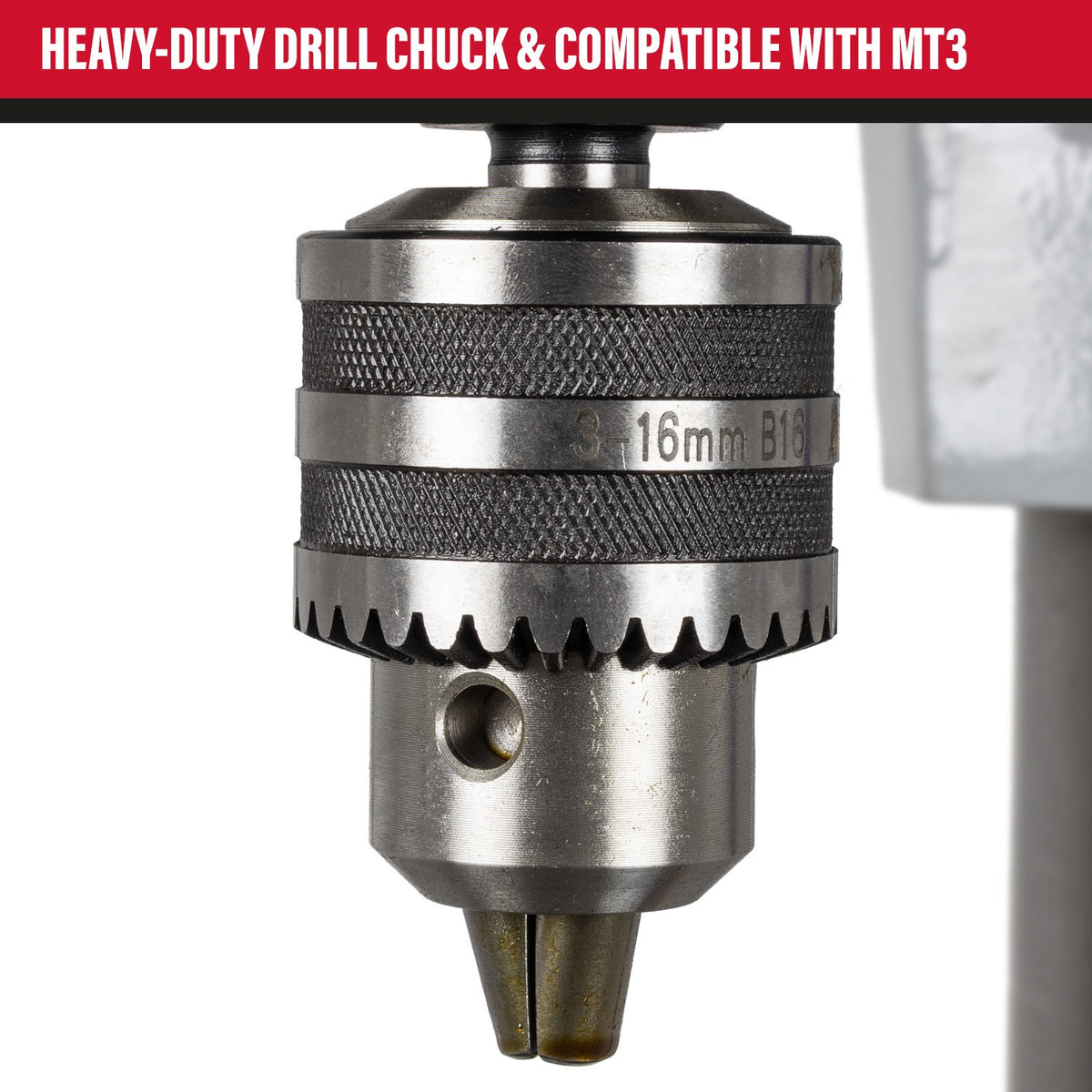

- Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3)
- Tapping function for threading high-quality screw holes up to max. ⌀ 19mm
- Recirculating coolant system maintains optimal drilling conditions
Technical specification
- Input Supply: 400v (16A)
- Motor Power: 2.2kW
- No. of Speeds: 65rpm to 540rpm (low) / 245rpm to 2000rpm (high)
- Max. Drilling Capacity: 32mm
- Max. Tapping Capacity: 19mm
- Spindle Taper: MT3
- Table Size: 560mm x 475mm
- Base Size: 688mm x 486mm
- Column Diameter: ⌀ 115mm
- Swing: 530mm
- Height: 1665mm
- Spindle Travel: 150mm
- Collar Diameter: ⌀ 174mm
- Max. Distance: 530mm (spindle to table) / 1180mm (spindle to base)
- Net Weight: 380kg
- Product Dimensions: 1665(H) x 650(W) x 1090mm(D)
- SKU: 01720
What's in the box
1x SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill (400v/16A), 1x drill chuck (compatible with Morse Taper 3), 1x drill drift, 1x chuck key, 1x, cranking handle, 1x Y-type socket wrench and 2x handles for headstock and table.
