Stenhoj Major 5230 4 Post Lift 5230-55S, For Car & Van Workshops
AutopStenhoj Major 5230 4 Post Lift 5230-55S, For Car & Van Workshops

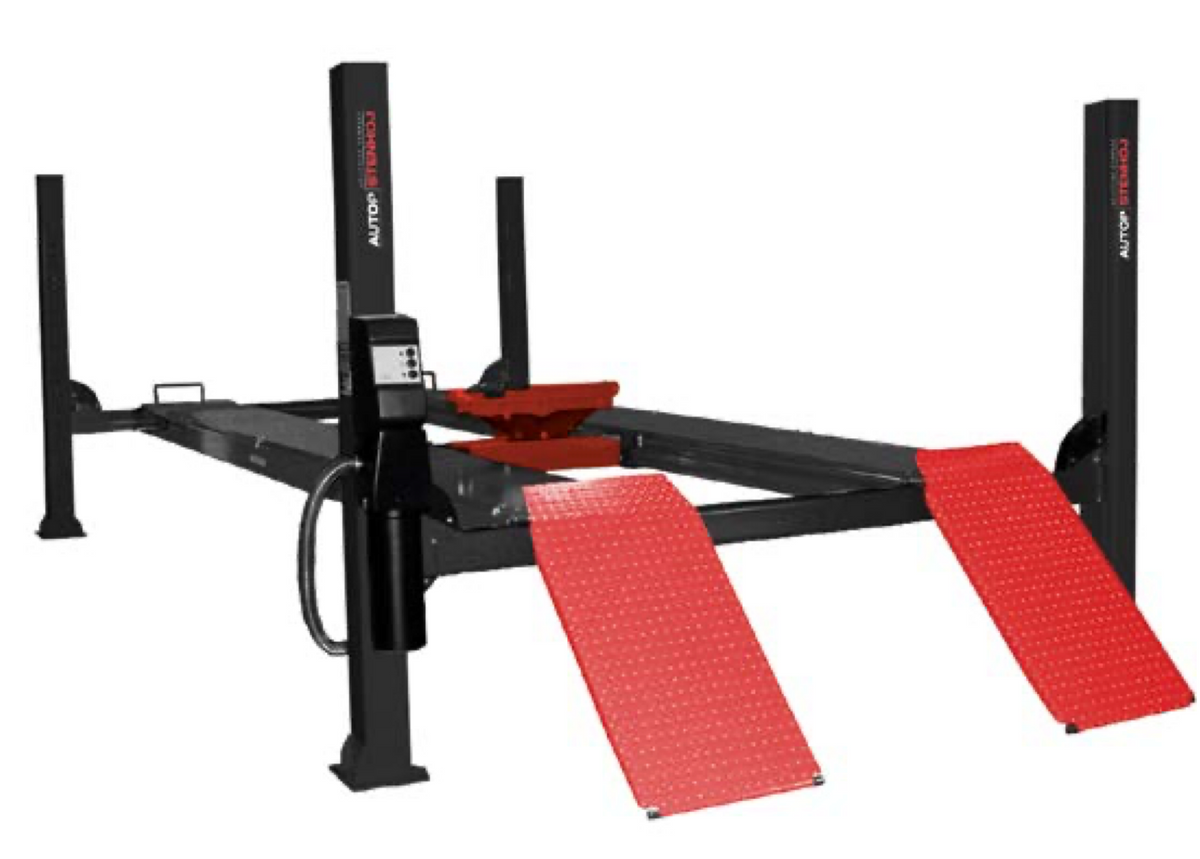

The AUTOPSTENHOJ Major 5230-55s four post electro-hydraulic four post vehicle lift is suitable for car and van workshops.
As with all other Major Lifts, this four post lift is electro-hydraulically operated and is fitted with an eccentric brake and an obstruction system with alarm. The platform on the right hand side of the lift is also adjustable for extra wide/narrow vehicles.
ALL AUTOPSTENHOJ lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.
AUTOPSTENHOJ Lifts are manufactured in Denmark

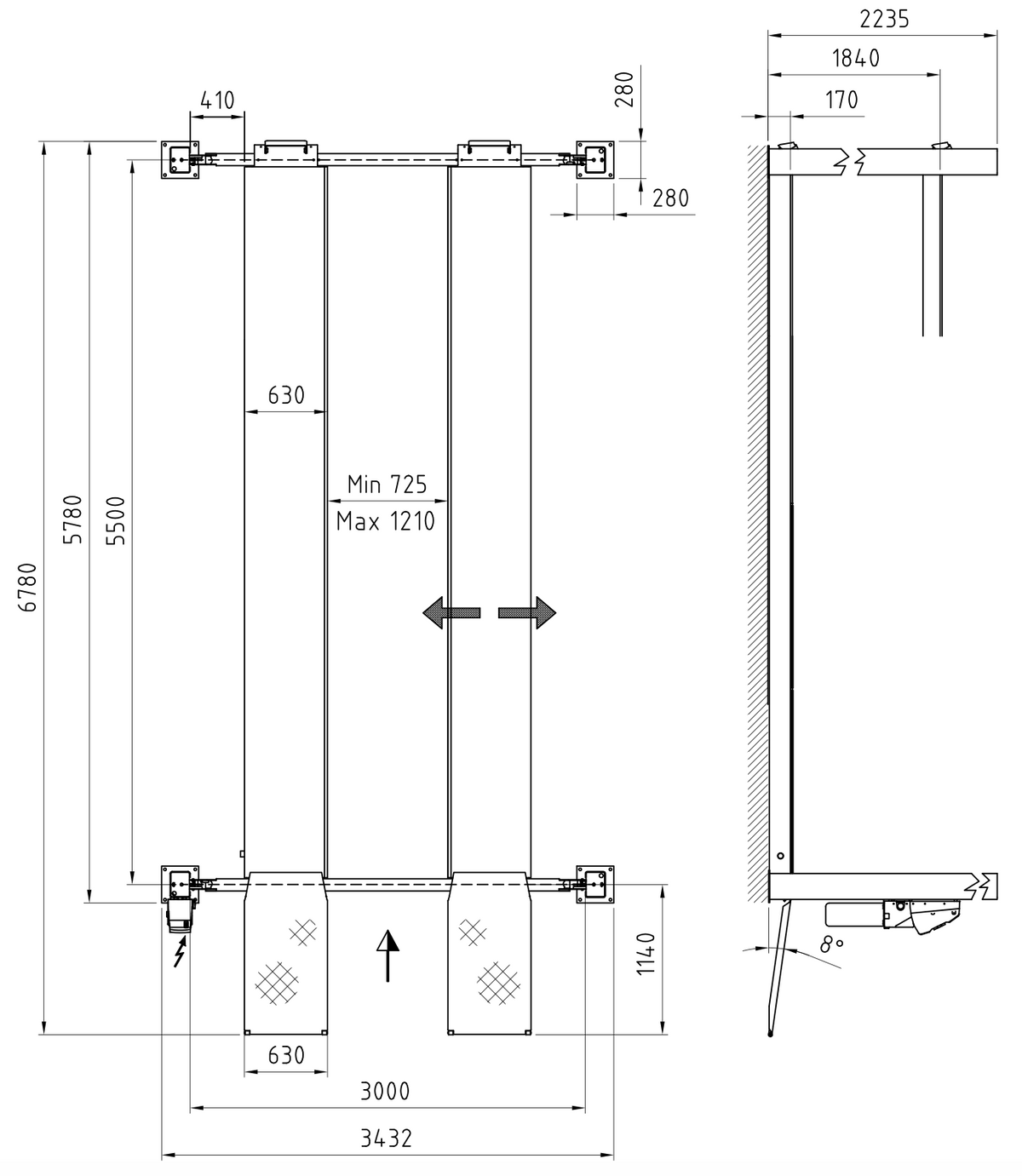

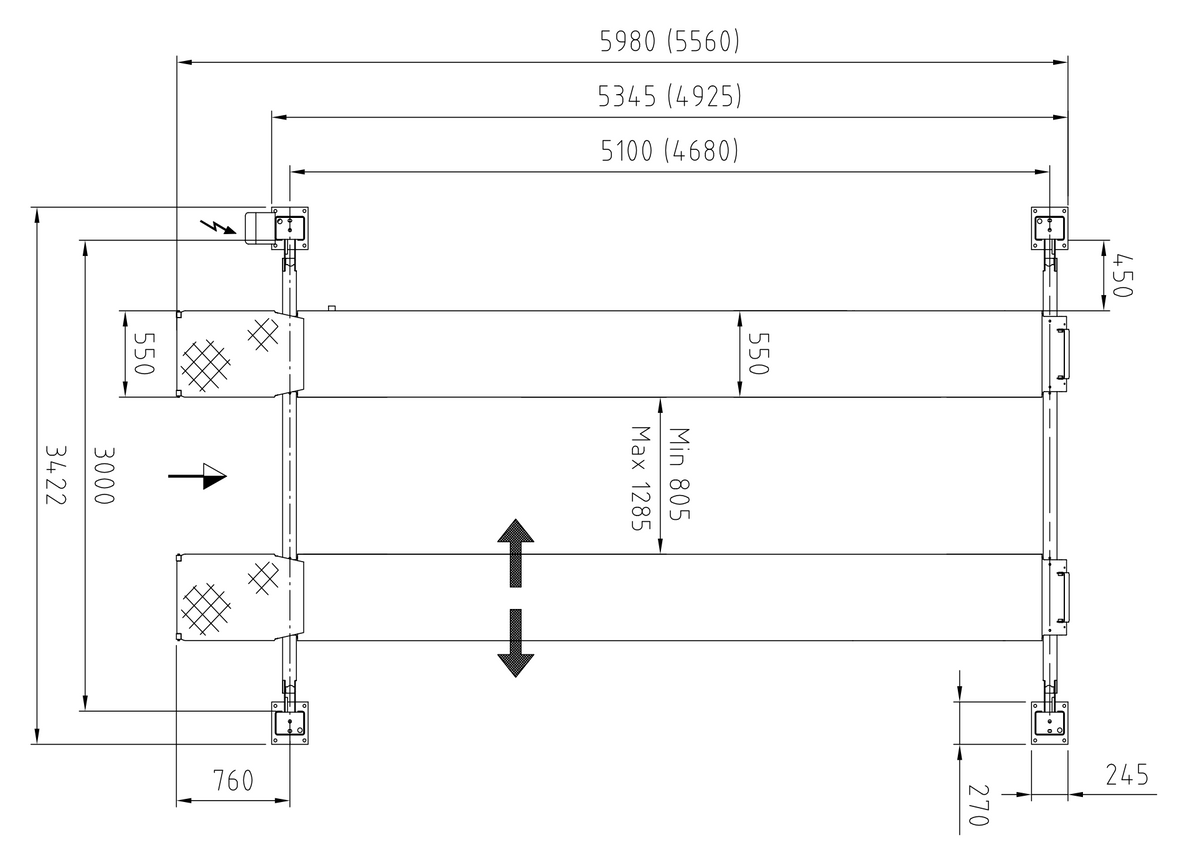

Technical Specification
| Lifting capacity | 5200kg |
| Lifting / lowering time | 32 seconds / 26 seconds |
| Minimum height | 170mm |
| Maximum height | 1860mm |
| Platform length | 5500mm |
| Platform width | 630mm |
| Width between platforms (adjustable) | Yes (725mm – 1210mm) |
| Motor size | 3 kW |
| Power required | 3 Phase – 16a isolator required |
| Operation | Electro-hydraulic |
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.
Benefits
- Work safely with an obstruction underneath - eccentric brake with alarm
- Fit a wider range of vehicles - adjustable right-hand platform
- Get a corrosion-resistant finish - full sling purifying, priming, and powder coating process
Advantages
- Obstruction system halts the lift automatically.
- Accommodates extra-wide or narrow vehicles.
- Sling purified, primed, and electrostatically powder baked.
Features
- Eccentric Brake with Alarm
- Adjustable Right Platform
- Powder Coated Finish
- Lifting capacity: 5200kg
- Lifting / lowering time: 32 seconds / 26 seconds
- Minimum height: 170mm
- Maximum height: 1860mm
- Platform length: 5500mm
- Platform width: 630mm
- Width between platforms (adjustable): Yes (725mm - 1210mm)
- Motor size: 3 kW
- Power required: 3 Phase - 16a isolator required
- Operation: Electro-hydraulic
