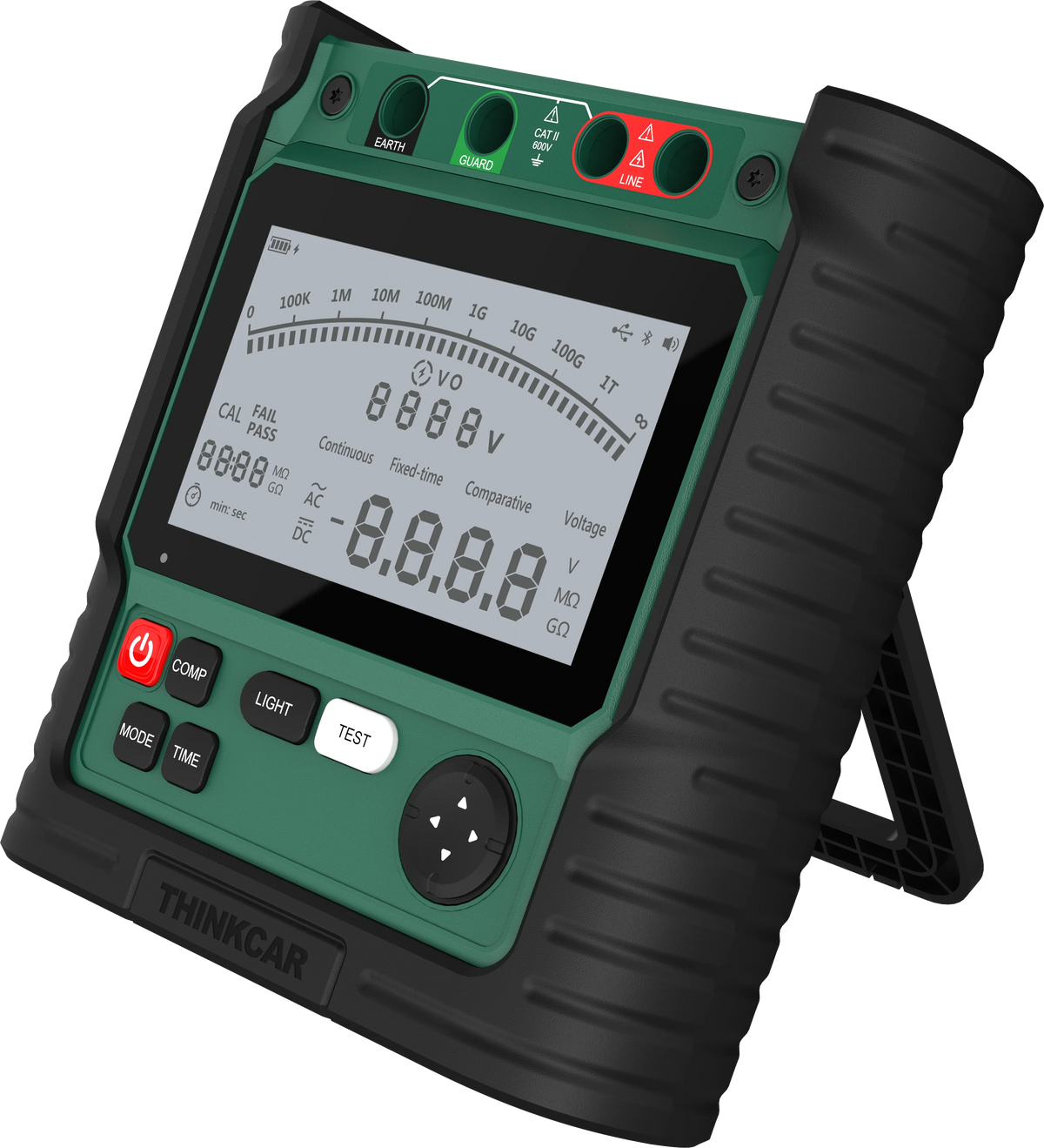

Thinkcar EVC 201 EV Insulation Resistance Tester EVC201
Manufacturer's Warranty Included.
Thinkcar EVC 201 EV Insulation Resistance Tester EVC201 is backordered and will ship as soon as it is back in stock.



Having moved to a new location and setting up a ltd with all the chaos that involves, buying the needed equipment to service cars was difficult. Advantage Empire worked hard to get me up and running to stay profitable thanks guys
GreysonTrustpilot
Couldn't load pickup availability
Check high voltage insulation safely before you work on an EV.
The THINKCAR EVC201 measures insulation resistance between live high voltage components and exposed metal such as housings. With 500V and 1000V test outputs, voltage measurement and several test modes, it helps you confirm an EV is safe and track down insulation faults.
Who it's for
- EV and hybrid specialists
- Independent garages starting high voltage work
- Fleet workshops running electric vans
Why you'll love it
- Confirm insulation is sound before and after high voltage repairs
- Track down insulation faults that set warning lights
- Save results to a compatible tablet over USB
What sets it apart
- 500V and 1000V test outputs
- Timed, comparison, continuous and omnidirectional modes
- Reference resistance comparison
How you'll use it
Isolate the high voltage system, connect the leads between the live component and the housing, choose 500V or 1000V and run the test. Read the result on screen and upload it to your tablet for the job record.
See it in action
Manufacturer warranty
Supplied as genuine UK stock through Thinkcar UK with the full manufacturer warranty and UK after sales support. Call 0116 4810180 for the warranty terms on this model.
Key features
- Insulation resistance testing
- Voltage measurement
- Reference resistance comparison
- Multiple measurement modes
- LCD display
- USB data transfer
Specifications
| Output voltage | 500V, 1000V |
|---|---|
| Range at 500V | 1MΩ to 20MΩ |
| Range at 1000V | 1MΩ to 40GΩ |
| Short circuit current | Under 1.8mA |
| Display | LCD |
| Data | USB to a compatible tablet |
Downloads
High voltage work must only be carried out by suitably trained and qualified technicians.
