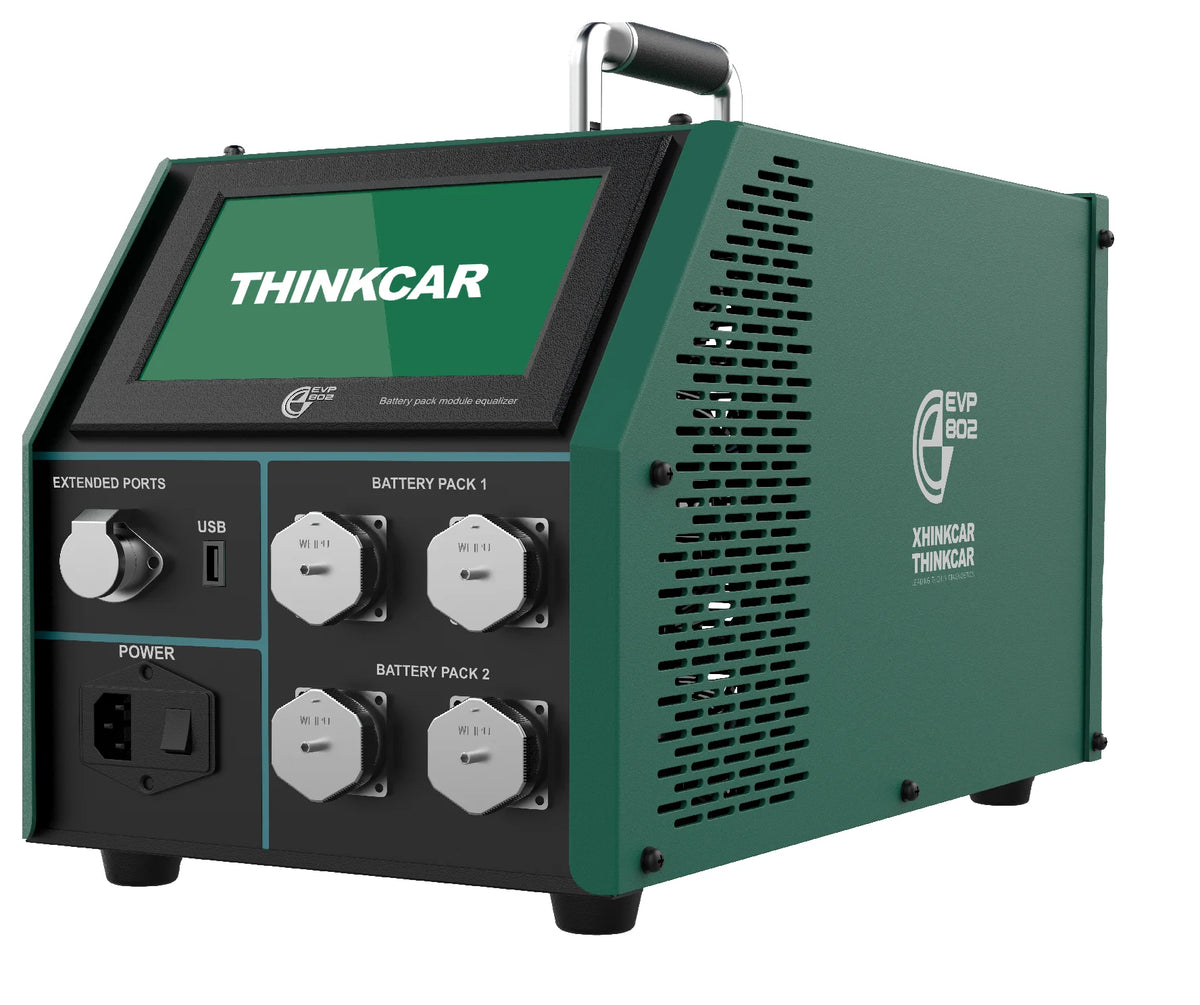

Thinkcar EVP 802 Battery Pack Equaliser Balancer
Manufacturer's Warranty Included.
Thinkcar EVP 802 Battery Pack Equaliser Balancer is backordered and will ship as soon as it is back in stock.



Having moved to a new location and setting up a ltd with all the chaos that involves, buying the needed equipment to service cars was difficult. Advantage Empire worked hard to get me up and running to stay profitable thanks guys
GreysonTrustpilot
Couldn't load pickup availability
Recommended extras
Compatible with this model. Tick what you need and they arrive with it.
Balance and rejuvenate EV battery modules cell by cell.
The THINKCAR EVP802 charges and discharges EV battery cells off the vehicle, with ±2mV voltage and ±0.05A current accuracy. It handles two modules of up to 12 cells each and shows results as histograms and tables on a 7 inch screen.
Who it's for
- EV battery repair specialists
- Hybrid and EV workshops
- Fleet operators maintaining electric vehicles
Why you'll love it
- Bring tired battery modules back into balance instead of replacing the pack
- Spot a weak cell quickly with clear histograms
- Keep an eye on cell temperature throughout
What sets it apart
- Dual module support, up to 12 cells per module
- 600W maximum charge and discharge power
- TCP/IP and USB data connections
How you'll use it
Remove the module from the pack, connect the 16 or 24 pin harness, set the target voltage and current and start the balance. Watch each cell on screen and export the data when finished.
See it in action
Manufacturer warranty
Supplied as genuine UK stock through Thinkcar UK with the full manufacturer warranty and UK after sales support. Call 0116 4810180 for the warranty terms on this model.
Key features
- Cell balancing by controlled charge and discharge
- Voltage, current and temperature monitoring
- Histogram and table views
- 16 pin and 24 pin battery interfaces
Specifications
| Power input | AC 90 to 260V, 40 to 60Hz |
|---|---|
| Charge and discharge voltage | 1.8 to 4.2V |
| Voltage accuracy | ±2mV, maximum 5V |
| Charge and discharge current | 0.1 to 5A |
| Current accuracy | ±0.05A |
| Temperature range | -25°C to 85°C, ±2°C |
| Modules | 2, up to 12 cells each |
| Maximum power | 600W |
| Screen | 7 inch |
| Communication | TCP/IP, USB |
| Dimensions | 496 x 246 x 262mm |
| Weight | 14kg |
High voltage work must only be carried out by suitably trained and qualified technicians.
