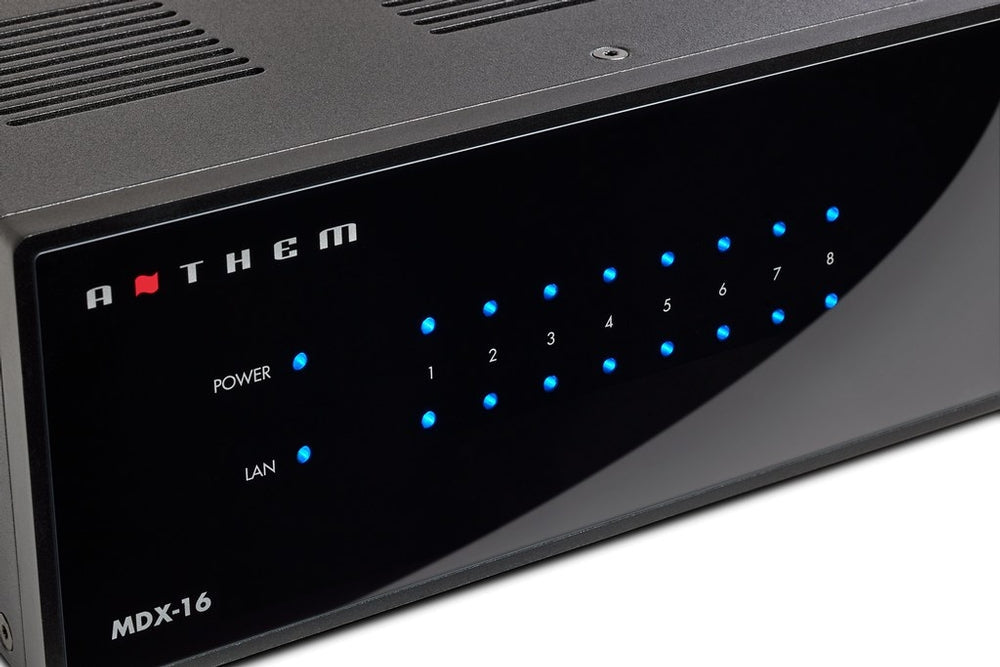

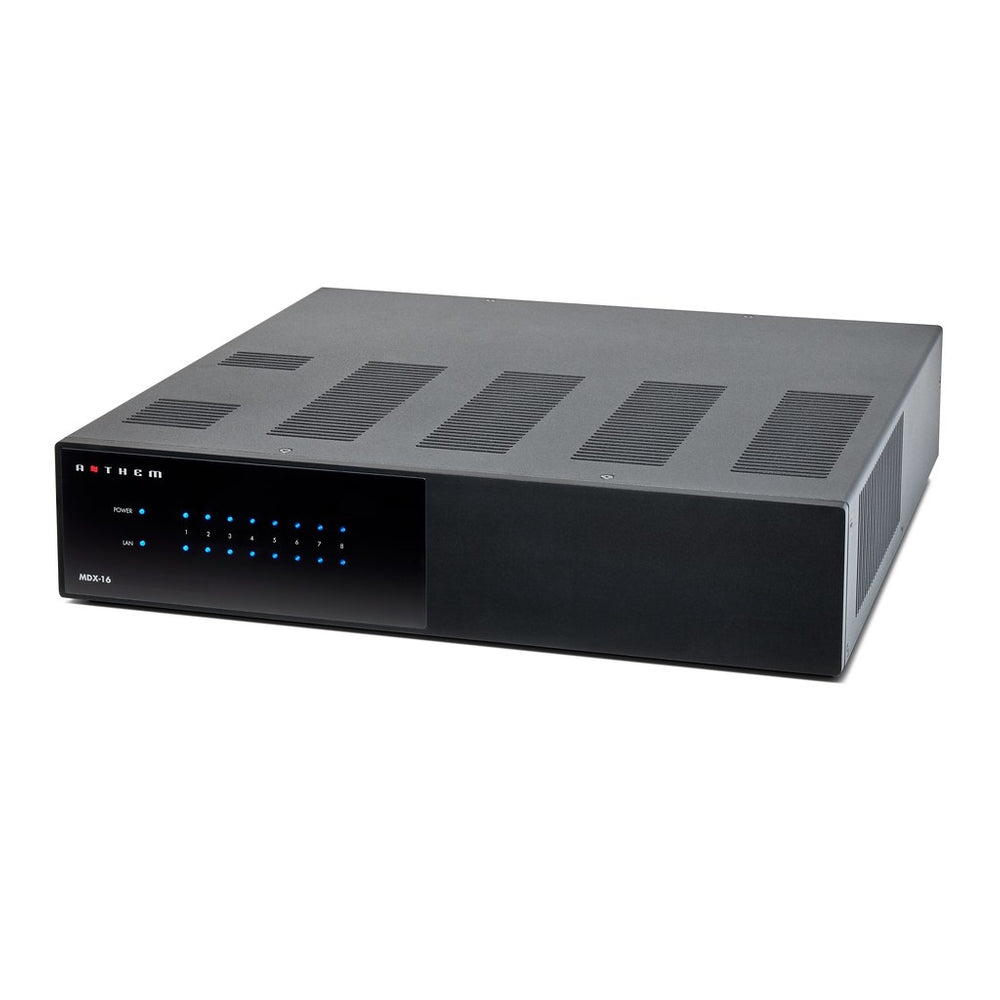

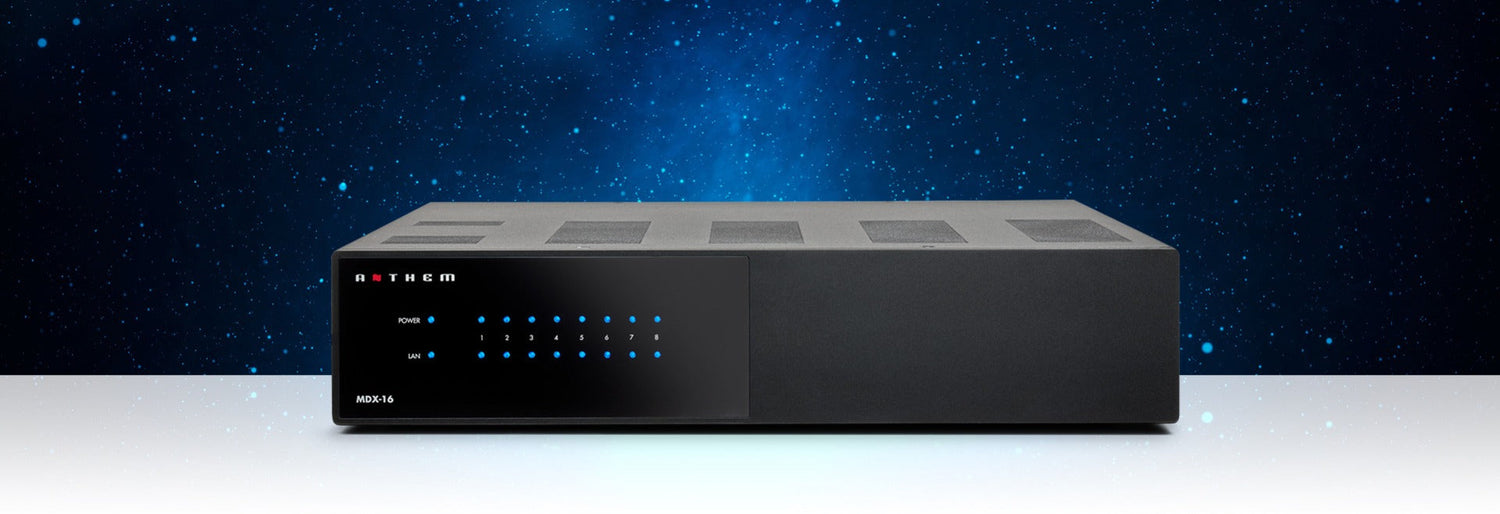

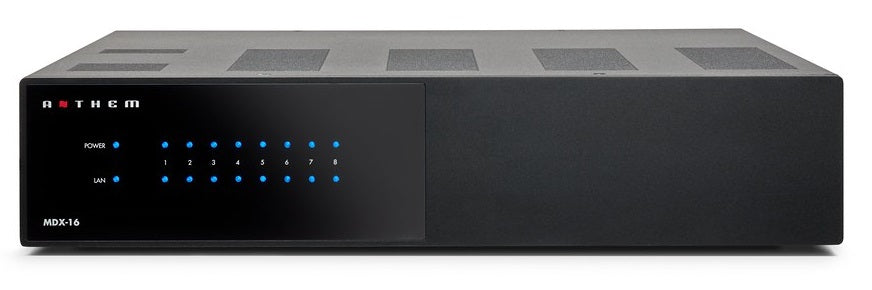

Anthem MDX 16 Matrix Amplifier SKU 1412000024

New Anthem MDX Series are the first distribution systems to feature fully powered independent-zone subwoofer connections, as well as ARC® Genesis room correction for each zone.

MDX Series features today’s cutting-edge Anthem amplifier technology so you can expect smooth, efficient, consistent high power and reliability. MDX Series is engineered to simplify your next custom audio system installation, and to blow your clients away with extreme performance in any setup.

Web-Based Setup
Nothing could be simpler than on-site configuration and calibration using our intuitive Web-based controls.

The specially designed, adaptive user interface works on any device. Custom configure zones, from input assignments to zone names. Adjust levels (and every aspect of performance) independently.

Automation Compatibility
Robust IP/RS-232 connection capability ensures compatibility with leading home automation systems, with easily downloaded drivers.

Digital Inputs, Digital Switching
Fast, efficient Ultra-Class-D amplification is supported by proprietary Advanced Load Monitoring technology, delivering reliable performance under even the most demanding loads. Our high-efficiency design meets and exceeds global power-saving standards.

Smooth, instantaneous digital switching output allows the linking of digital inputs between multiple amplifiers and analog pass-through connections allow daisy-chaining of multiple MDX units.

Key Features:

• 60 Watts (8 Ohms) / 120 Watts (4 Ohms) with all channels driven, or bridges to provide 200 Watts (8 Ohms).
• 8- or 16-channels of Ultra-Class-D amplification, each supported by Advanced Load Monitoring technology, delivers fast, reliable performance even under the most demanding loads.
• 24-bit/192kHz digital-to-analog converter (DAC) maintains the integrity of high-resolution source materials.
• Customized pre-set DSP settings.
• Separate zone-specific bass management and subwoofer integration via a passive (RCA) or active (powered by another zone in bridge mode) connection.
• Bridging allows up to 200 Watts for high power applications such as subwoofers.
• Digital switching output allows linking of digital inputs between multiple MDX.

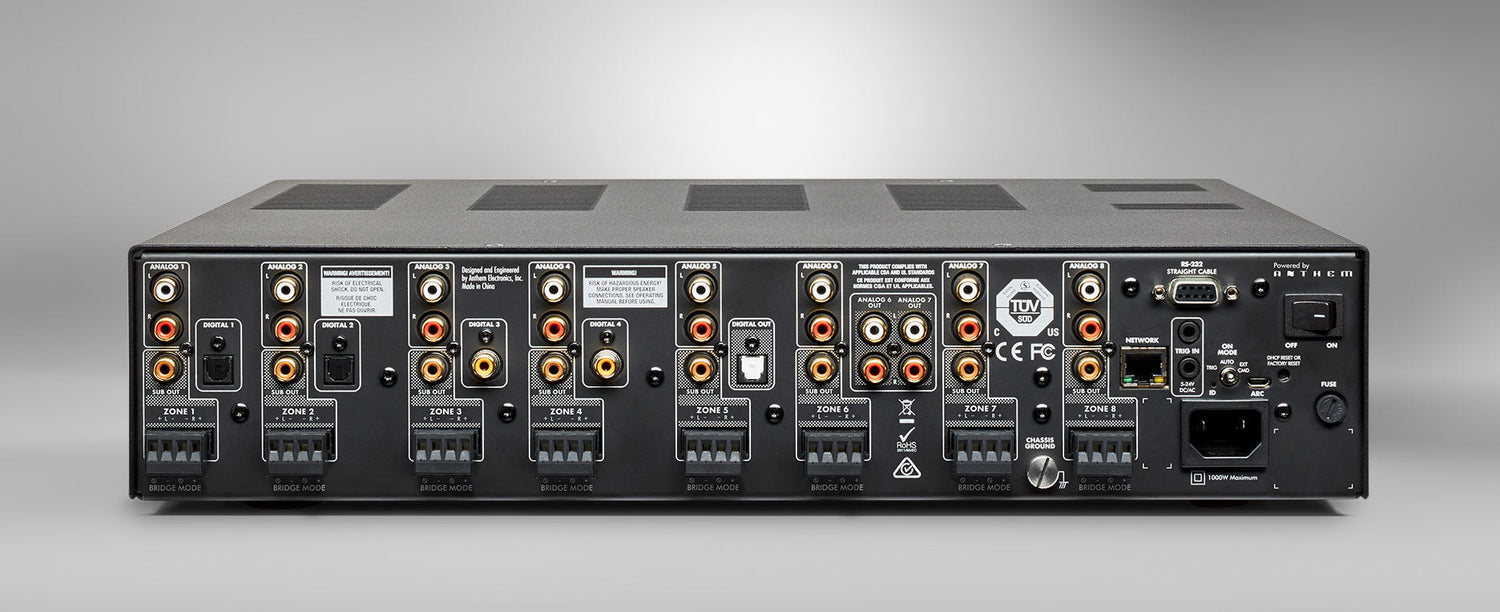

• Analog pass-through connections allow daisy chaining of multiple MDX.
• Speaker terminal block connections accept up to 12 AWG, ideal for long speaker cable runs.
• IP/RS232 capability ensures compatibility with leading home automation systems.
• ON/OFF switched via IP/RS232, 12-Volt trigger, or audio sensing.
• High-efficiency design meets global power saving standards. Secure professional rack-mount arms included.
