Stenhoj Major 5230 4 Post ATL MOT Lift 5230-60ATL, Class IV & VII
Manufacturer's Warranty Included.
Stenhoj Major 5230 4 Post ATL MOT Lift 5230-60ATL, Class IV & VII - 6.5 Tonne Capacity is backordered and will ship as soon as it is back in stock.
Having moved to a new location and setting up a ltd with all the chaos that involves, buying the needed equipment to service cars was difficult. Advantage Empire worked hard to get me up and running to stay profitable thanks guys
GreysonTrustpilot
Couldn't load pickup availability
Complete the bay
MOT bayThis lift plus the equipment that turns it into a working bay. Everything goes into your cart in one click.
Stenhoj Major 5230 4 Post ATL MOT Lift 5230-60ATL, Class IV & VIIĀ£24,995.00 ex VATĀ£29,994.00 inc VAT
Sherpa Class IV & VII ATL Brake Tester w/ Tablet BPSATL7Ā£12,495.00 ex VATĀ£14,994.00 inc VAT
Lampcheck Headlight Aligner SKU LAMPCHECK22Ā£3,495.00 ex VATĀ£4,194.00 inc VAT
Brain Bee Omni 800 Emission AnalyserĀ£5,495.00 ex VATĀ£6,594.00 inc VAT
Recommended extras
Compatible with this model. Tick what you need and they arrive with it.

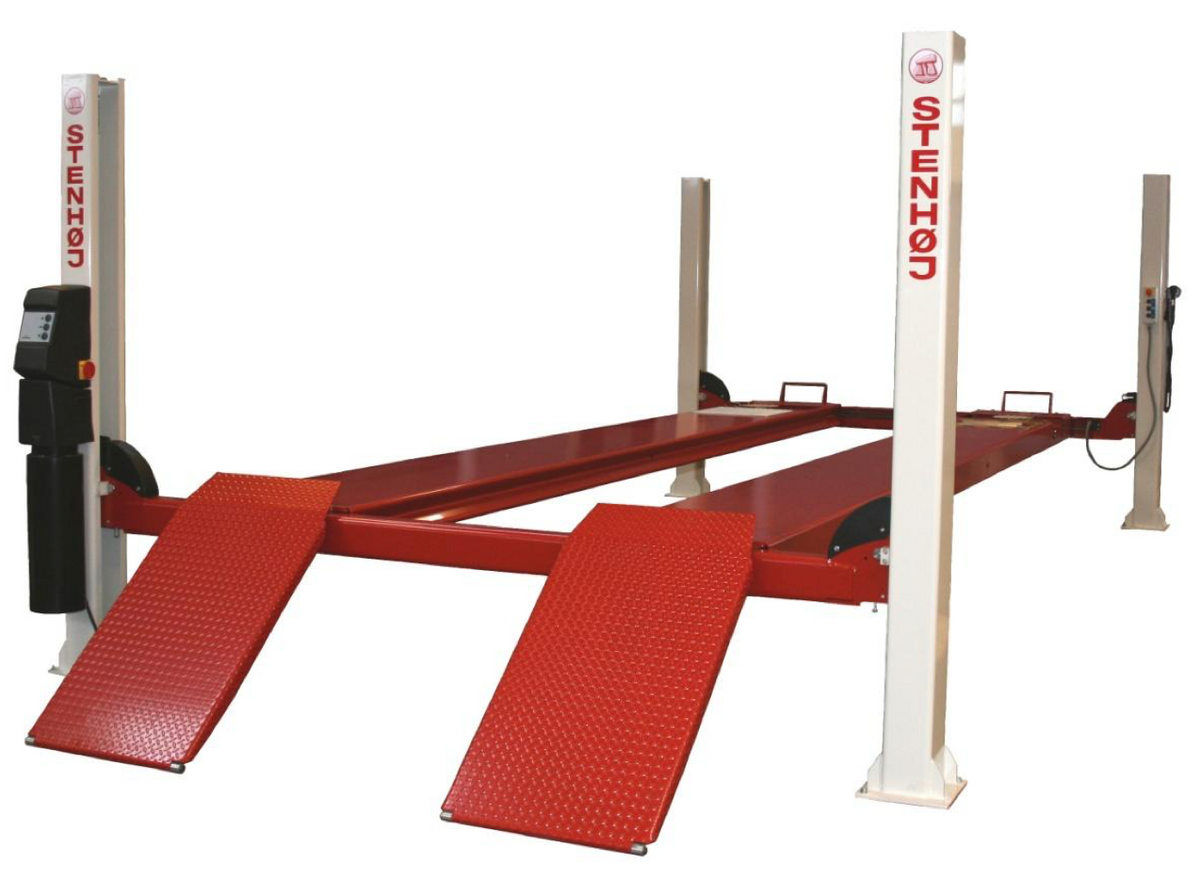

Stenhoj Major 5230 4 Post ATL MOT Lift 5230-60ATL, Class IV & VII
Stenhoj Major 5230 4 Post ATL MOT Lift 5230-60ATL, Class IV & VII
Another high quality MOT ATL lift approved for class IV and VII.
This lift has the added benefit of a 5.2 tonne capacity and 6M long platforms, ideal for large vans and motorhomes.
This lift is also available in 6.5 tonne capacity.
If you run independent garages, franchise dealership workshops, MOT test centres, and fleet maintenance depots, this is built for the kind of work you do day to day. In practice, you drive the vehicle into position, engage the arms or platforms at the correct jacking points, and raise it to a comfortable working height for underbody, wheel, or brake work.

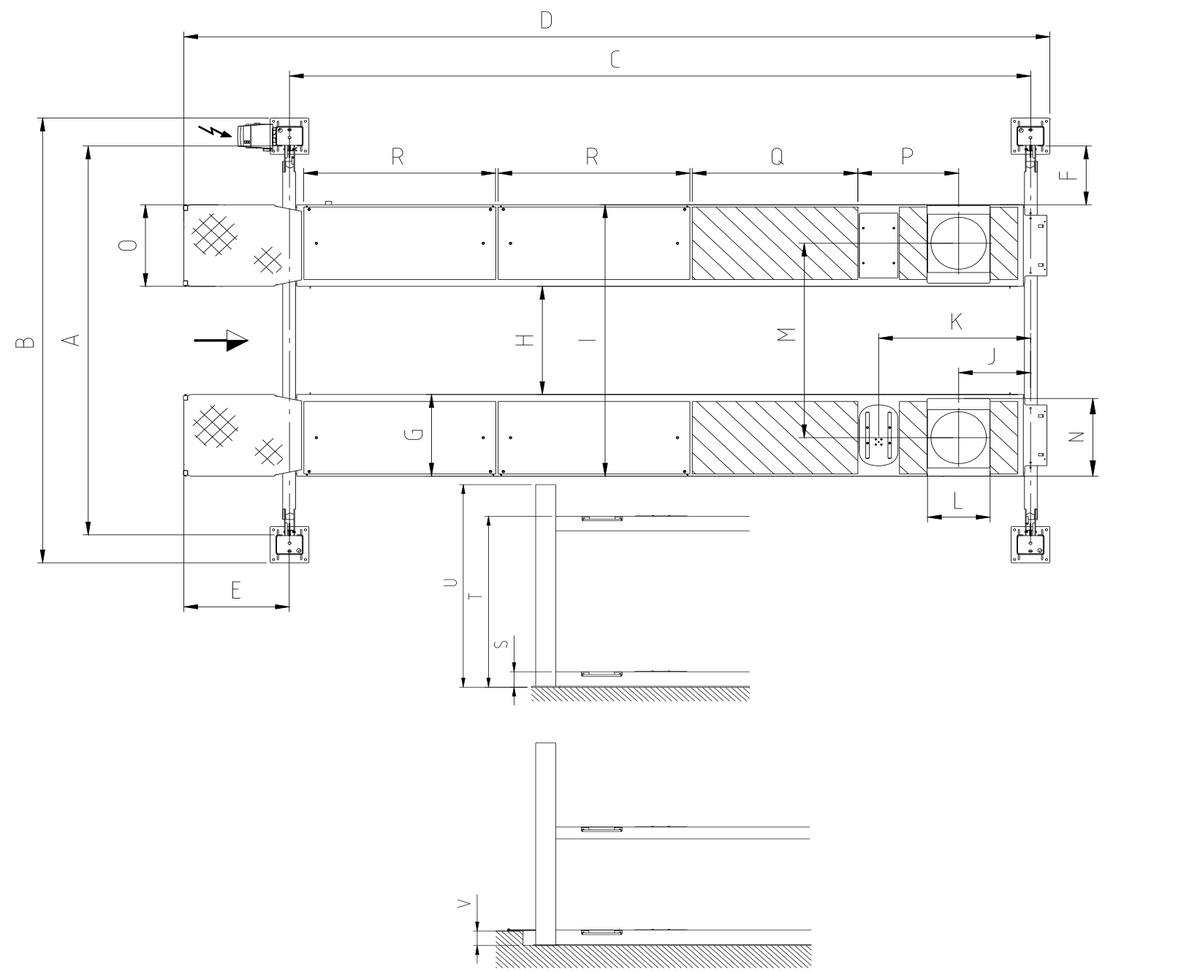

Technical Specification
| Ā | 5230-60ATL | 6230-60ATL |
| Lifting Capacity | 5200kg | 6500kg |
| Platform Length | 6000mm | 6000mm |
| External Width | 3432mm | 3432mm |
| Width Between Posts | 3000mm | 3000mm |
| Recess Depth | 160mm | 160mm |
| Motor | 3 phase | 3 phase |
| Shakers | Pneumatic | Pneumatic |
Benefits
- Test large vans and motorhomes - 6000mm platform length
- Cover both Class IV and VII testing - approved for both

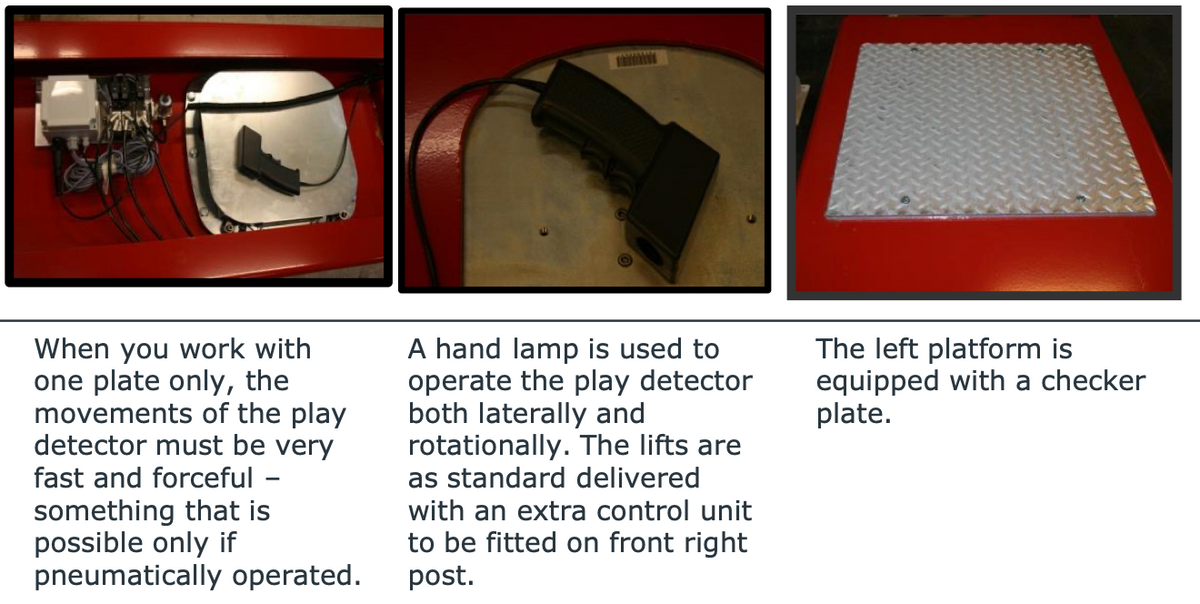

- Shake wheels for play detection without manual effort - pneumatic shaker plates
Advantages
- Suits a wide range of MOT testing.
- Fits large vans and motorhomes.
- For suspension play detection.
Features
- Class IV and VII Approved
- 6000mm Platform Length
- Pneumatic Shaker Plates
- Lifting Capacity: 5200kg
- Platform Length: 6000mm
- External Width: 3432mm
- Width Between Posts: 3000mm
- Recess Depth: 160mm
- Motor: 3 phase
- Shakers: Pneumatic
